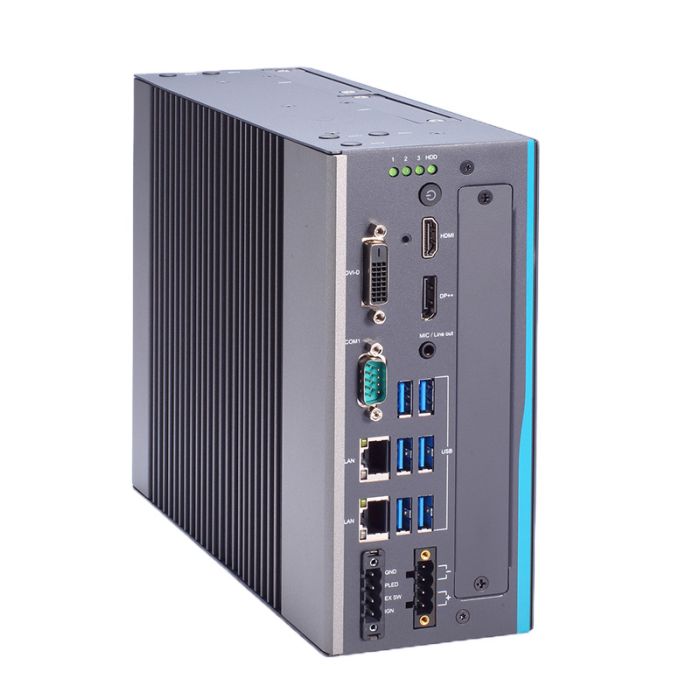

IPC960A Fanless Industrial Computer 13th/12th Gen
LGA1700 Socket 13th/12th Gen Core i7/i5/i3/Celeron Processor, H610E/Q670E, Front-access I/O
Key Features:
- Fanless embedded system
- Optional extension system I/O module
- Optional 5G network (Q670E)
- Intelligent power management: Ignition, USB power on/off control
- Supports Intel RAID (Q670E)
- EN61000-6-2 certified
- Optional DIN-rail, bookshelf, and wall mount kits
Intelligent Power Management
The IPC960A has one 4-pin terminal block for DC input and one 4-pin terminal block for ignition control, remote power, and remote LED.

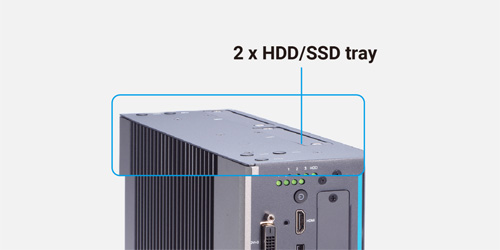

Ready for Extensive Storage Needs
By supporting two 2.5" HDD/SSD and one optional M.2 Key M 2280 socket (PCIe x4 Gen4), the high-performance IPC960A delivers sufficient storage for massive data processing.

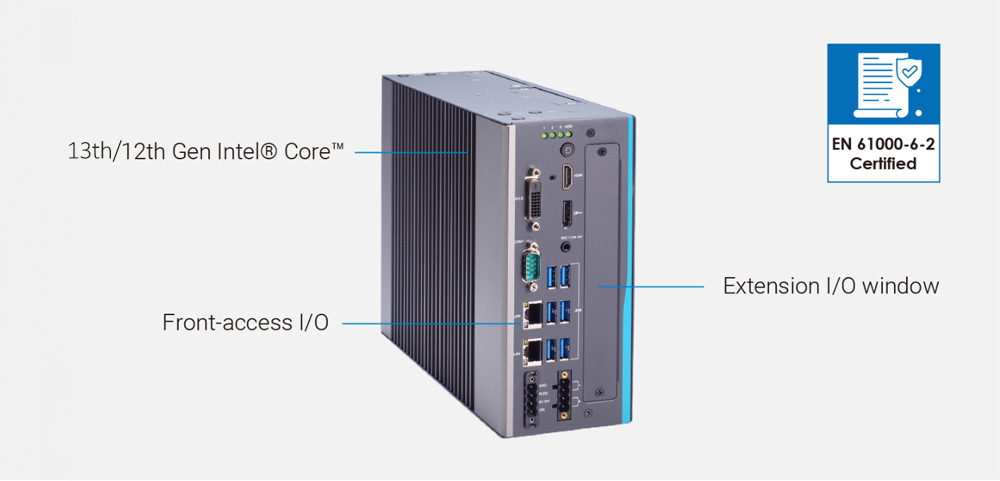

Industrial Edge System featuring Extension I/O Modules
The highly expandable IPC960A is powered by the 13th/12th gen Intel® Core™ processor with the Intel® H610E/Q670E chipset. Certified to EN 61000-6-2 regulations, the IPC960A offers a durable design, longevity of product life cycle, and high immunity for heavy-loading industrial environments. With fast and flexible deployment capabilities, this highly adaptable industrial computer can quickly and efficiently respond to changes or new circumstances for diverse applications in AI, vision inspection, objective classification, and factory automation.
Next-Gen Performance
The IPC960A is powered by the 13th/12th gen Intel® Core™ processor with the Intel® H610E/Q670E chipset. It is equipped with dual DDR5 4800/4000 SO-DIMM for up to 64GB of system memory.
Flexible Expansion Options
The IPC960A offers one optional I/O expansion module slot and I/O module options include Axiomtek’s AX93511, AX93512, AX93516, AX93519, MIO160, and MIO530.
Front-Facing I/O Interfaces
The IPC960A supports rich I/O options, including one 2.5GbE LAN port, one GbE LAN port, one RS-232/422/485, six USB 3.2 Gen2x1 (10G) ports, one internal USB 2.0 port, one DisplayPort++, one HDMI, one DVI-D.
Rugged & Reliable Design
The IPC960A has a wide operating temperature range of -20°C to +60°C and a wide range of power input from 18 to 36 VDC for operation in mission-critical environments.
| brand | Axiomtek | ||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
||||||||||||||||||||||||||||||||||||||||||||
| Description | Intelligent Power Management The IPC960A has one 4-pin terminal block for DC input and one 4-pin terminal block for ignition control, remote power, and remote LED. Ready for Extensive Storage Needs By supporting two 2.5" HDD/SSD and one optional M.2 Key M 2280 socket (PCIe x4 Gen4), the high-performance IPC960A delivers sufficient storage for massive data processing.
Industrial Edge System featuring Extension I/O Modules The highly expandable IPC960A is powered by the 13th/12th gen Intel® Core™ processor with the Intel® H610E/Q670E chipset. Certified to EN 61000-6-2 regulations, the IPC960A offers a durable design, longevity of product life cycle, and high immunity for heavy-loading industrial environments. With fast and flexible deployment capabilities, this highly adaptable industrial computer can quickly and efficiently respond to changes or new circumstances for diverse applications in AI, vision inspection, objective classification, and factory automation.
Next-Gen Performance The IPC960A is powered by the 13th/12th gen Intel® Core™ processor with the Intel® H610E/Q670E chipset. It is equipped with dual DDR5 4800/4000 SO-DIMM for up to 64GB of system memory. Flexible Expansion Options The IPC960A offers one optional I/O expansion module slot and I/O module options include Axiomtek’s AX93511, AX93512, AX93516, AX93519, MIO160, and MIO530. Front-Facing I/O Interfaces The IPC960A supports rich I/O options, including one 2.5GbE LAN port, one GbE LAN port, one RS-232/422/485, six USB 3.2 Gen2x1 (10G) ports, one internal USB 2.0 port, one DisplayPort++, one HDMI, one DVI-D. Rugged & Reliable Design The IPC960A has a wide operating temperature range of -20°C to +60°C and a wide range of power input from 18 to 36 VDC for operation in mission-critical environments.
|
