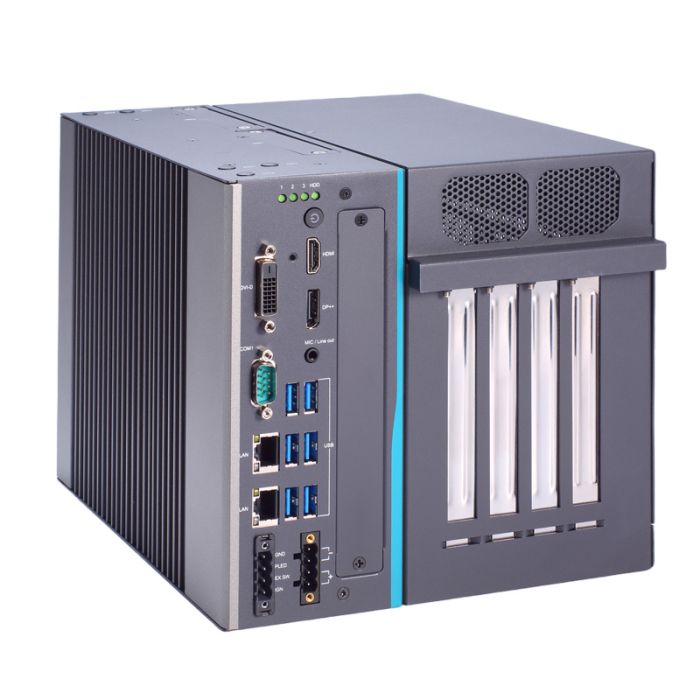

The IPC964A is a four-slot industrial system featuring an LGA1700 Socket for 14/13/12th Gen Intel Core i7/i5/i3/Celeron Processors, front-access I/O, and PCIe & PCI Slots. Ports can be customised using an extension system I/O window.
1 x Full-size PCI Express Mini Card slot (USB & PCIe interface) w/SIM slot
1 x M.2 Key E 2230 socket + 1 x M.2 Key B 3042/3050/3052/3060 socket w/SIM slot for 5G module or selected LTE module (optional)
Others
TPM 2.0
1 x HDD/SSD access LED
3 x User's LED
1 x Switch for power on/off with LED (default ATX)
Power
Input: 18 to 36 VDC
1 x Switch for power on/off with LED (default ATX)
1 x 4-pin terminal block (5.08 mm) for DC input
1 x 4-pin terminal block (5.08 mm) for ignition control, remote power and remote LED
Construction
Aluminum extrusion heavy-duty cold-rolled steel
Operating Temperature
-20°C to +70°C (+14°F to +140°F) with 12th gen Intel® Core™ processor and W.T. HDD/SSD
Relative Humidity
10% to 90%, non-condensing
Dimensions (W x H x D)
205 x 192 x 260 mm (8.07" x 3.62" x 10.24")
Weight (net/gross)
5.6 kg (12.35 lb) / 6.7 kg (14.78lb)
Software Support
AXView
EOS Support
Windows® 10, Linux
Certifications
CE (EN 61000-6-4/EN 61000-6-2), FCC
Description
The IPC964A is a four-slot industrial system featuring an LGA1700 Socket for 14/13/12th Gen Intel Core i7/i5/i3/Celeron Processors, front-access I/O, and PCIe & PCI Slots. Ports can be customised using an extension system I/O window.
