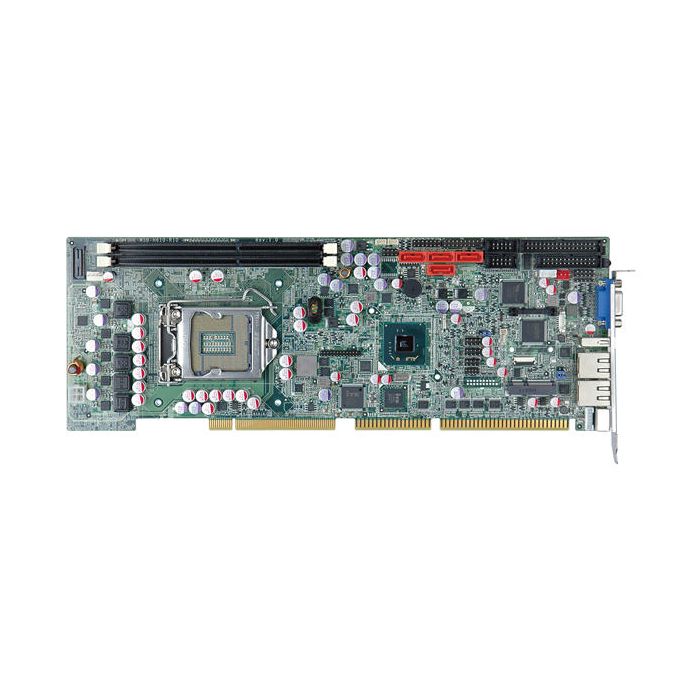

WSB-H610 Full-size PICMG i7/i5/i3/Pentium/Celeron

A$0.00

In stock

SKU

WSB-H610

Full-size PICMG 1.0 CPU Card supports 32nm LGA 1155 Intel® Core™ i7/i5/i3, Pentium® or Celeron® CPU with Intel® H61

Full-size PICMG 1.0 CPU Card supports 32nm LGA 1155 Intel® Core™ i7/i5/i3, Pentium® or Celeron® CPU with Intel® H61

· Full-size PICMG 1.0 CPU card with LGA 1155 Intel® Core™ i7/i5/i3, Pentium® or Celeron® processor supported

· Two DDR3 & DDR3L 1333/1066 MHz DIMM SDRAM supported up to 16 GB

· Embedded controller on board supports infrared and PECI 2.0 technologies

· Dual Realtek PCIe GbE and LAN1 with ASF 2.0 support

· TPM V1.2 hardware security function supported by TPM module

· IEI One Key Recovery solution allows you to create raipd OS backup and recovery

brand

IEI Integration Corp.

Specifications

Spec Item	Description
CPU Cooler
CPU Cooler	CF-1156A-RS-R11 CF-1156C-RS CF-1156D-RS CF-1156E-R11
Environment
Humidity	5% ~ 95%, non-condensing
Operating Temperature	-10°C ~ 60°C
Expansion Slots
Expansion Slots	PCIe Mini
I/O Interface
Audio	Supports by IEI AC-KIT-892HD-R10 audio kit
Digital I/O	8-bit Digital I/O
Display	1 x VGA 1 x DVI-D(via header to IO-KIT-001-R20 DVI-D/USB module)(optional)
Ethernet	LAN1: Realtek RTL8111E PCIe GbE controller with ASF 2.0 support LAN2: Realtek RTL8111E PCIe GbE controller
I/O Interface
I/O Interface	1 x I²C
	1 x USB 2.0
	1 x LPT
	1 x KB/MS
	6 x Internal USB 2.0
	1 x Internal RS-422/485
	2 x Internal RS-232
	1 x SMBus
Power
Power consumption	5V@4.53A, 12V@0.19A, Vcore_12V@7.81A, 5VSB@0.18A (3.4GHz Intel® Core™ i7-2600K with two 2GB 1333MHz DDR3 memory)
Storage
Storage	4 x SATA 3Gb/s
System
Chipset	Intel® H61
CPU	Intel® Core™ i7/i5/i3, PentiumR, Celeron® processor
CPU Socket	LGA1155
Memory Max.	Two 240-pin 1333/1066MHz dualchannel DDR3 & DDR3L (1.35V) DIMMs supported (system max. 16GB)
Watchdog Timer
Watchdog Timer	Software programmable and supports 1~255 sec. system reset
