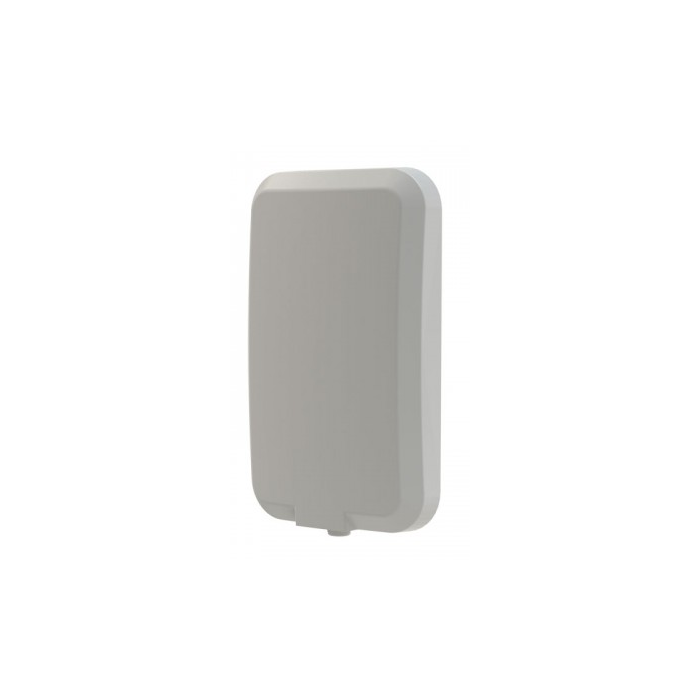

The WMM4G-6-60 is a high directional gain 4x4 MiMo signal boosting antenna for 4G and 5G networks. Incorporating four separately fed wideband element assemblies in a single housing the WMM4G-6-60 is equipped to provide client side MiMo support for 4G and 5G networks offering 6dBi of peak gain at 617- 960MHz and 9dBi peak gain at 1710-6000MHz.
Electrical Data Frequency range (MHz) 4x 4x 617-960/1710-6000 Operational bands 4x 4G/5G Radiation pattern Directional Nominal polarisation +/- 45deg / Vertical Peak gain (excl cable loss)+ 617-960MHz 6dBi 1710-6000MHz 9dBi Effi ciency - excluding cable loss (all bands) > 60% Correlation co-effi cient ( all bands) < 0.2 Max input power (W) 20 Watts Nominal impedance 50Ω Mechanical Data Dimensions (mm) Height 507 (19.96”) Width 307 (12.01”) Depth 85 (3.34”) Operating temp (°C) -40° / +80°C (-40° / 176°F) Material ASA Colour White IP Rating IP66 Radome material certifi cations UL94-HB, UL746C-f2 Weight (g) 5100 Survival wind speed (m/s) 55 Typical wind load @ 45 m/s (N) 200 Mounting Data Fixing wall mount / fl ush wall mount /mast mount Mounting bracket material Coated steel / Aluminium / Stainless Steel Pole diameter (mm) 20-50 / (0.78 - 1.96”) Cable & Connector Data Cable Type CS32 FRZH (Meets EN6722 / EN45545-2) Diameter (mm) 5 (0.2”) Length (m) 5 (16.4’) Connector SMA(m) x 4
Description
The WMM4G-6-60 is a high directional gain 4x4 MiMo signal boosting antenna for 4G and 5G networks. Incorporating four separately fed wideband element assemblies in a single housing the WMM4G-6-60 is equipped to provide client side MiMo support for 4G and 5G networks offering 6dBi of peak gain at 617- 960MHz and 9dBi peak gain at 1710-6000MHz.
