7th generation Intel® mobile ULT processor Intel® Core™ i7-7600U (up to 3.9GHz, dual-core, 4MB cache, TDP=15W) Intel® Core™ i5-7300U (up to 3.5GHz, dual-core, 3MB cache, TDP=15W) Intel® Core™ i3-7100U (up to 2.4GHz, dual-core, 3MB cache, TDP=15W)
Memory Max.
1 x 260-pin 2133MHz DDR4 SDRAM SO-DIMM (channel 1, supports up to 16GB) On-board 4GB/8GB DDR4 memory (channel 2, optional support by request)
I/O Interface
Ethernet
1 x Intel® I219LM 1 x Intel® I211AT
Digital I/O
1 x 8-bit digital I/O (2x5 pin)
Display
Triple independent display 1 x VGA (up to 1920x1200@60Hz) 1 x HDMI (up to 4096x2160@30Hz) 1 x 18/24-bit dual-channel LVDS (up to 1920x1200@60Hz) 1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (co-layout with VGA)
Audio
1 x HD audio (2x5 pin, supports 7.1-channel HD audio by AC-KIT-892HD-R10)
Expansion
1 x Full-size PCIe Mini slot (w/ SATA signal, supports mSATA) 1 x Full-size PCIe Mini slot (w/ SIM card slot support) *3855U belongs to Skylake ULT Base series which supports PCIe Gen 2 signal only.
Power
Power consumption
12V@4.27A (Intel® Core™ i7-6600U up to 3.4GHz CPU with 16GB 2133MHz DDR4 memory running in 3.0GHz)
Power Supply
12V only DC input 1 x Internal power connector (2x2 pin, or optional terminal block)
Environment
Operating Temperature
-20°C ~ 60°C
Safety & EMC
CE/FCC compliant
Humidity
5% ~ 95%, non-condensing
Storage Temperature
-20°C ~ 60°C
Dimensions
Dimensions
146mm x 102mm
Weight
Weight
GW: 600g / NW: 250g
Watchdog Timer
Watchdog Timer
Software programmable, supports 1~255 sec. system reset
I/O Interface
I/O Interface
4 x USB 3.0(External I/O)
2 x Internal USB 2.0(2x4 pin, P=2.0)
2 x Internal RS-232/422/485(1x9 pin, P=1.25)
1 x SMBus(1x4 pin, P=2.0)
1 x SATA 6Gb/s(6Gb/s with 5V SATA power connector)
Description

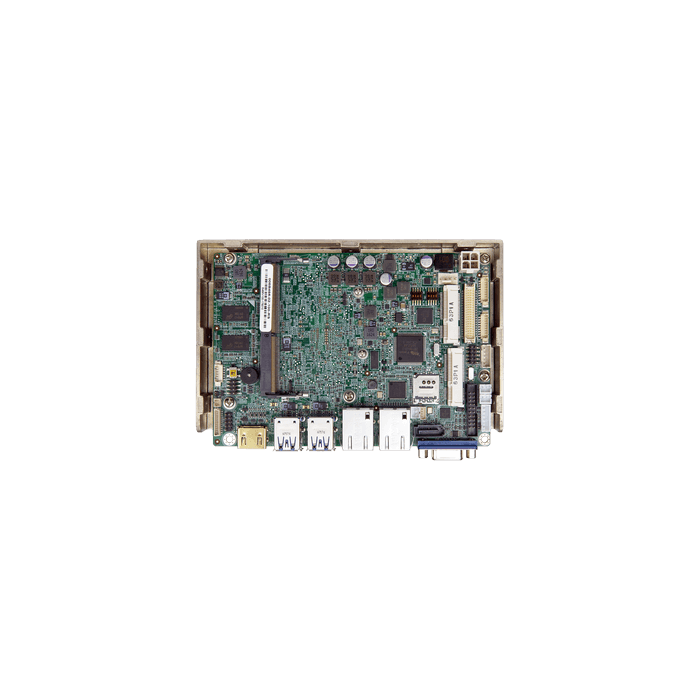

3.5” SBC supports Intel® 6th Generation ULT Processor with DDR4 SO-DIMM/On-board Memory Support
·3.5” SBC with Intel® 6th Generation ULT processor supports DDR4 SO-DIMM (on-board memory support by request)
·Triple display with VGA/iDP, HDMI and LVDS selection
·Two PCIe Mini with mSATA/SIM card slot support
·Intel® GbE LAN with Intel® AMT 11.0 supported
·IEI One Key Recovery solution allows you to create rapid OS backup and recovery
