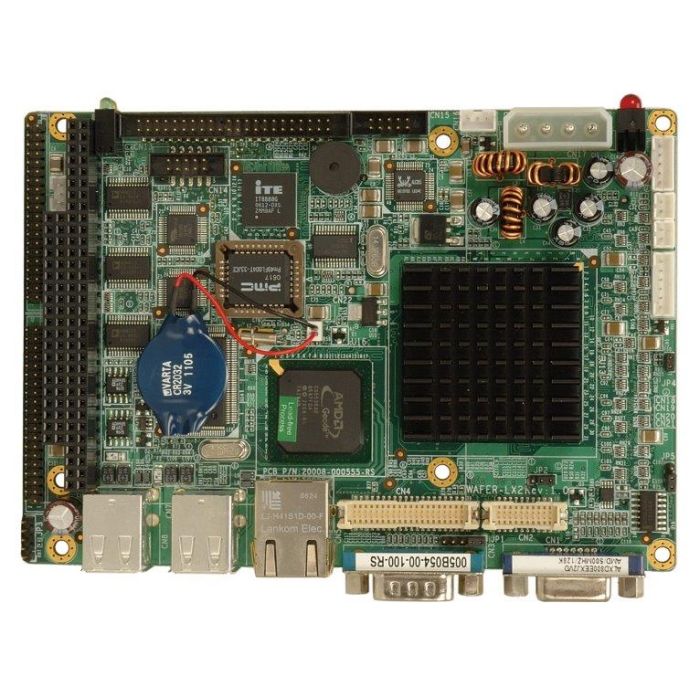

WAFER-LX2-800 3.5” SBC AMD Geode LX 800 Processor
3.5” SBC with on-board AMD Geode™ LX 800 Processor
3.5” SBC with on-board AMD Geode™ LX 800 Processor
· 3.5"" form factor with AMD Geode™ LX 800 CPU
· One 333/400 MHz DDR SO-DIMM socket supports up to 1 GB memory
· VGA, 24-bit TTL, 18-bit LVDS display interfaces
· Seven RS-232 and one RS-232/422/485
· IEI One Key Recovery solution allows you to create rapid OS backup and recovery
More Information
| brand |
IEI Integration Corp. |
| Specifications |
| Spec Item |
Description |
| CPU Cooler |
| CPU Cooler |
N/A |
| Display |
| Display |
VGA integrated in AMD Geode™ LX 800
24-bit TTL
18-bit single-channel LVDS |
| Environment |
| Humidity |
5% ~ 95%, non-condensing |
| Operating Temperature |
0°C ~ 60°C |
| Expansion Slots |
| Expansion Slots |
1 x PC/104 |
| I/O Interface |
| Audio |
Realtek ALC203 with AC`97 codec |
| Digital I/O |
1 x 8-bit digital I/O (2x5 pin) |
| Ethernet |
LAN: 10/100Mbps RTL8100C Ethernet Controller |
| I/O Interface |
| I/O Interface |
4 x USB 2.0 |
| 6 x Internal RS-232 |
| 1 x RS-232 |
| 1 x Internal RS-232/422/485 |
| Power |
| Power consumption |
5V@1.33A (AMD Geode™ LX 800 with one 1GB 400MHz DDR memory) |
| Storage |
| Storage |
1 x CF Type II
1 x IDE (2x22 pin, P=2.0) |
| System |
| Chipset |
AMD CS5536 |
| CPU |
AMD Geode™ LX 800 (500MHz) |
| CPU Socket |
On Board |
| Memory Max. |
One 200-pin 400/333MHz DDR SDRAM SODIMM
slot support up to 1GB |
| Watchdog Timer |
| Watchdog Timer |
Software programmable supports 1~255 sec.
system reset |
|
| Description |
3.5” SBC with on-board AMD Geode™ LX 800 Processor
· 3.5"" form factor with AMD Geode™ LX 800 CPU
· One 333/400 MHz DDR SO-DIMM socket supports up to 1 GB memory
· VGA, 24-bit TTL, 18-bit LVDS display interfaces
· Seven RS-232 and one RS-232/422/485
· IEI One Key Recovery solution allows you to create rapid OS backup and recovery
|
