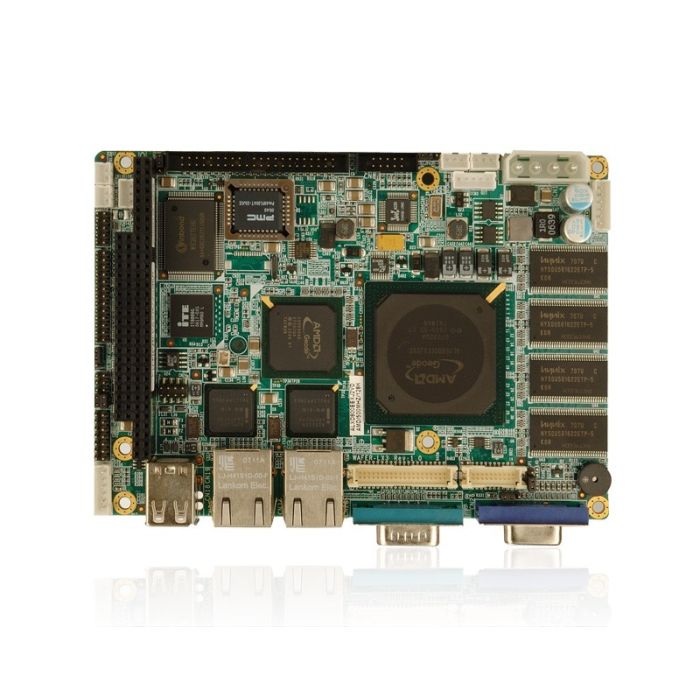

WAFER-LX-800 3.5” SBC with on-board AMD Geode LX 800 Processor

A$0.00

In stock

SKU

WAFER-LX-800-R12

3.5” SBC with on-board AMD Geode™ LX 800 Processor

3.5” SBC with on-board AMD Geode™ LX 800 Processor

· 3.5” form factor embedded board with AMD Geode™ LX 800 processor and RoHS compliant

· 333/400 MHz DDR SDRAM SO-DIMM supports up to 1 GB

· Complete I/O support with two SATA, IDE, CF Type II, PC/104, dual LAN and four USB 2.0

· 24-bit TTL/18-bit single-channel LVDS

· Value embedded applications with low power and fanless design. Support Windows® XP/CE/XPe

· The best choice for thin client Windows® CE 5.0, XPe OS image with ICA, RDP and IE APs ready

· IEI One Key Recovery solution allows you to create rapid OS backup and recovery

brand

IEI Integration Corp.

Specifications

Spec Item	Description
CPU Cooler
CPU Cooler	N/A
Display
Display	VGA integrated in AMD Geode™ LX 800 24-bit TTL 18-bit single-channel LVDS
Environment
Humidity	5% ~ 95%, non-condensing
Operating Temperature	0°C ~ 60°C
Expansion Slots
Expansion Slots	1 x PC/104
I/O Interface
Audio	Realtek ALC203 with AC’97 Codec
Digital I/O	1 x 8-bit digital I/O (2x5 pin)
Ethernet	Dual LAN: 10/100Mbps RTL8100C Ethernet Controller
I/O Interface
I/O Interface	2 x Internal USB 2.0
	2 x USB 2.0
	1 x RS-232
	1 x LPT
	1 x RS-422/485
	1 x Internal RS-232
Power
Power consumption	5V@1.53A (AMD LX800 with one 1GB 400MHz DDR memory)
Storage
Storage	1 x CF Type II 1 x IDE (2x22 pin, P=2.0) 2 x SATA 1.5Gb/s (RAID 0, 1 support)
System
Chipset	AMD CS5536
CPU	AMD Geode™ LX800 (500MHz) processor
CPU Socket	On Board
Memory Max.	One 200-pin 400/333MHz DDR SDRAM SODIMM slot support up to 1GB
Watchdog Timer
Watchdog Timer	Software programmable supports 1~255 sec. system reset

Description

3.5” SBC with on-board AMD Geode™ LX 800 Processor

· 3.5” form factor embedded board with AMD Geode™ LX 800 processor and RoHS compliant

· 333/400 MHz DDR SDRAM SO-DIMM supports up to 1 GB

· Complete I/O support with two SATA, IDE, CF Type II, PC/104, dual LAN and four USB 2.0

· 24-bit TTL/18-bit single-channel LVDS

· Value embedded applications with low power and fanless design. Support Windows® XP/CE/XPe

· The best choice for thin client Windows® CE 5.0, XPe OS image with ICA, RDP and IE APs ready

· IEI One Key Recovery solution allows you to create rapid OS backup and recovery
