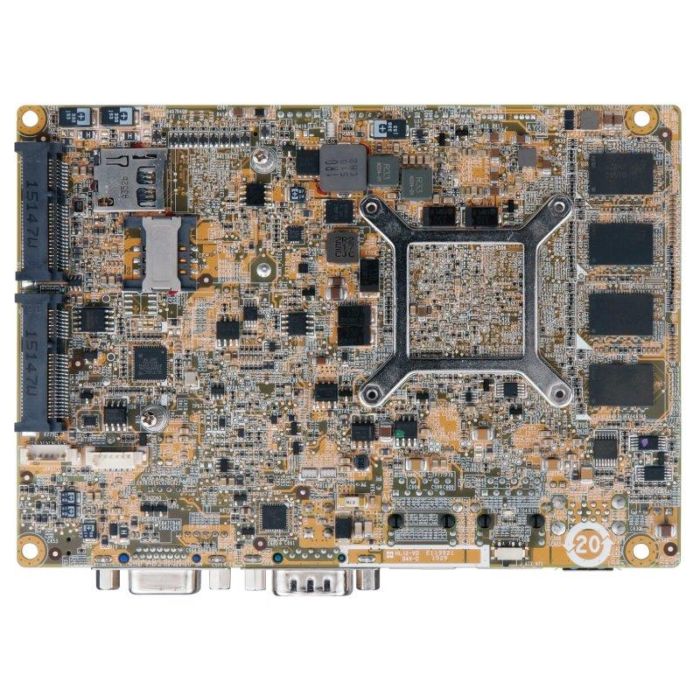

WAFER-BT-E38001W2 3.5” SBC Intel 22nm Atom SoC

A$0.00

In stock

SKU

WAFER-BT-E38001W2

3.5” SBC with Intel® 22nm Atom™ SoC

3.5” SBC with Intel® 22nm Atom™ SoC

· 3.5” SBC supports Intel® 22nm Atom™ on-board SoC

· Dual independent display support

· On-board 2 GB/4 GB 1066/1333 MHz DDR3L memory

· COM, USB 3.0, SATA 3Gb/s, PCIe Mini, mSATA and Audio support

· Supports -40°C ~ 85°C

· IEI One Key Recovery solution allows you to create rapid OS backup and recovery

brand

IEI Integration Corp.

Specifications

Spec Item	Description
CPU Cooler
CPU Cooler	N/A
Display
Display	Dual independent dispaly VGA (up to 2560x1600@60Hz) 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
Environment
Humidity	5% ~ 95%, non-condensing
Operating Temperature	-40°C ~ 85°C
Expansion Slots
Expansion Slots	2 x Full-size PCIe Mini card slot (one with SIM holder)
I/O Interface
Audio	Realtek ALC662 HD Audio codec 1 x Analog audio (2x5 pin)
Digital I/O	1 x 8-bit digital I/O (2x5 pin)
Ethernet	LAN1: Intel® I210-IT PCIe controller LAN2: Intel® I210-IT PCIe controller
I/O Interface
I/O Interface	1 x USB 2.0
	1 x USB 3.0
	1 x Internal RS-232
	4 x Internal USB 2.0
	1 x RS-232
Power
Power consumption	12V@1.32A (Intel® Atom™ processor E3845 with on-board 2 GB 1333 MHz DDR3L memory)
Storage
Storage	2 x SATA 3Gb/s with 5V SATA power connector (no RAID) 1 x mSATA colay SATA2
System
CPU	Intel® Atom™ E3845 on-board SoC (1.91GHz, quad-core, 2MB cache, TDP=10W) Intel® Atom™ E3827 on-board SoC (1.75GHz, dual-core, 1MB cache, TDP=8W) Intel® Atom™ E3826 on-board SoC (1.46GHz, dual-core, 1MB cache, TDP=7W) Intel® Atom™ E3825 on-board SoC (1.33GHz, dual-core, 1MB cache, TDP=6W) Intel® Atom™ E3815 on-board SoC (1.46GHz, single-core, 512KB cache, TDP=5W)
Memory Max.	4 GB solder-down 1066/1333 MHz DDR3L memory (for E3845) 2 GB solder-down 1066/1333 MHz DDR3L memory (for E3825)
Watchdog Timer
Watchdog Timer	Software programmable supports 1~255 sec. system reset
