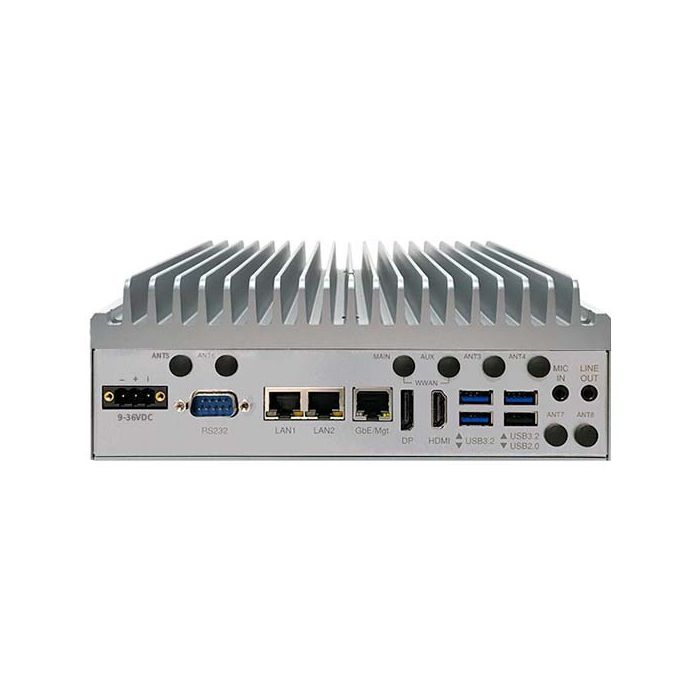

VTC7260 11th Gen Core Fanless AI-aided Vehicle Computer

CPU

• Intel Core 11th Gen. Tiger Lake UP3
• Core i5-1145GRE, base frequency 1.5GHz/ 2.6GHz, 4c, 8 MB Intel Smart Cache (VTC 7260-5)
• Core i7-1185GRE, base frequency 1.8GHz/ 2.8GHz, 4c, 12 MB Intel Smart Cache (VTC 7260-7)
• Graphics:
  • Intel Iris Xe graphics, 1.3GHz
  • Max resolution: 4096 x 2304@60Hz (HDMI)
  • DirectX: 12.1, OpenGL: 4.6

Memory

• 2 x SO-DIMM, DDR4-3200MHz
• 4GB+4GB in default, 64GB in max.
• ECC (in-band ECC), dual-channel support

Storage

• 1 x 2.5” SSD (15mm height)
• 1 x mPCIe for mSATA (SATA 3.0)
• 1 x M.2 2242/2280 Key M NVMe SSD (PCIe 4.0 x4)

Expansion slots

• 1 x mPCIe socket (PCIe 3.0 + USB 2.0/ USB 3.2), 2 x micro SIMs supported
• 1 x M.2 3042/3050/3052 Key B socket (USB 3.2), 2 x micro SIMs supported
• 1 x M.2 2230 Key E socket (2 x PCIe 3.0 x 1 & USB 2.0)

Display

• 1 x HDMI 2.0a/b, up to 3840 x 2160@60Hz
• 1 x VGA, up to 2560 x 1600@60Hz
• 1 x DP, 4096 x 2304@60Hz

2.5GbE

• 2-port independent 2.5GbE, RJ45 connector
  • 9K byte jumbo frame
  • PTP (IEEE 1588) support
  • Controller: Intel I225-IT

GbE

• 1-port independent GbE, RJ45 connector
  -- vPro (iAMT) support
  -- 9K byte jumbo frame
  -- PTP (IEEE 1588) support
  -- Wake-up function (WoL)
  -- Boot from PXE (Legacy & UEFI)

USB
ŒŒ 1 x USB 3.2 Gen2 & 2 x USB 3.2 Gen1:
-- Host type-A connector
-- 5V@900mA each
-- Up to 10Gbit/s link speed & compliance with USB 2.0 (LS/FS/HS link
speed)
ŒŒ 1 x USB 2.0, host type-A connector

Serial Port
ŒŒ 2 x full RS232/422/485, selectable
ŒŒ 2 x full RS232 reserved for option (wafer connector)
-- RS232 working voltage, +- 9V, baud rate up to 115.2kb/s

Security
ŒŒ TPM 2.0: Infineon SLB9665TT2.0FW5.62

Audio
ŒŒ Line-out, unbalance stereo, left & right channel
ŒŒ MIC-in, stereo
ŒŒ Line-in reserved (wafer connector)

MEMS Sensor
ŒŒ 3D accelerometer and 3D gyroscope
ŒŒ Controller: ST LSM6DSLTR

DI/DO
ŒŒ 4-bit input
-- Source: 9~36VDC (12V@1.1mA/24V@2.2mA)
-- External: 0~33VDC pull-high, high-level, 3.3 - 33 VDC; low-level, 0 - 2

VDC
ŒŒ 4-bit output
-- Source: 9~36VDC (nominal 35mA@24V):
-- External: 5~27VDC pull-high, sink current w/ 220mA for each bit,
500mA max (@25C)
ŒŒ Source or external can be selected by software (default: source type)

CAN bus
ŒŒ 1 x CAN 2.0A/ 2.0B
ŒŒ IEC 61000-4-2 Electrostatic Discharge (ESD): ± 8KV/15KV (contact/air)
ŒŒ 2.5KV isolated
GPS
ŒŒ U-blox NEO-M8N GNSS module for GPS/GLONESS/QZSS/Galileo/Beidou
ŒŒ Optional DR (Dead Reckoning) function, NEO-M8U/M8L
Power Supply
ŒŒ Nominal voltage: 9~36V
ŒŒ Cranking voltage: 6V~9V (less than 20 sec)
ŒŒ OCP & UVP (shut down once exceeding 37V)
ŒŒ Ignition on/off control & programmable on/off delay timer
ŒŒ Optional for remote power on/off control
I/O ports, Front-plate
ŒŒ ATX power button, Reset button
ŒŒ 9 x LED Indicators, 1 x VGA (DB15), 2 x COM (DB9, RS232/422/485), 1 x
Multi-port (DB15, 4xDI, 4xDO, CAN, DR signal) , 1 x Ext. (DB15, reserved),
1 x PR-SMA for GNSS, 4 x SMA for WWAN
I/O ports, Rear-plate
ŒŒ 2 x Audio jack (Line-out & MIC-in)
ŒŒ 3 x USB 3.2 type A, 1 x USB 2.0 type A
ŒŒ 1 x HDMI, 1 x DP, 4 x PoE+ (2.5GbE, RJ45), 1 x GbE, 9~36VDC (3-pin
Phoenix), 4 x PR-SMA for WLAN

I/O ports, side-plate
ŒŒ 2 x SIM slots (SIM1-1, SIM2-1)
Dimensions & Weight
ŒŒ 210.0mm x 173.0mm x 75.0mm (w/o mount brackets)
ŒŒ 234.0mm x 173.0mm x 81.0mm (w/ mount brackets)
ŒŒ Weight: 3.5kg
Environment
ŒŒ Operating temperatures: -40°C~70°C (12W TDP base)
ŒŒ Storage temperatures: -40°C~85°C
ŒŒ Relative humidity: 10%~95% (non-condensing)
Vibration & Shock
ŒŒ Vibration in operating:
-- MIL-STD-810H, 514.8C Procedure 6, Category 4
-- IEC 60068-2-64: 2.0g@5~500Hz
ŒŒ Vibration in storage:
-- MIL-STD-810G, 514.6E Procedure 1, Category 24, 7.7g
ŒŒ Shock:
-- MIL-STD-810G, 516.6 Procedure I, trucks and semi-trailers=40g
-- Crash hazard: Procedure V, ground equipment=75g
Certifications
ŒŒ CE approval, FCC Class A, UKCA, E13 Certified
Operating System
ŒŒ Windows 10 64-bit/Windows 10 IOT 64-bit, Windows 11
ŒŒ Linux (Ubuntu 18.04)
External Cable
ŒŒ DB15 multi-port adapter cable, 20cm
