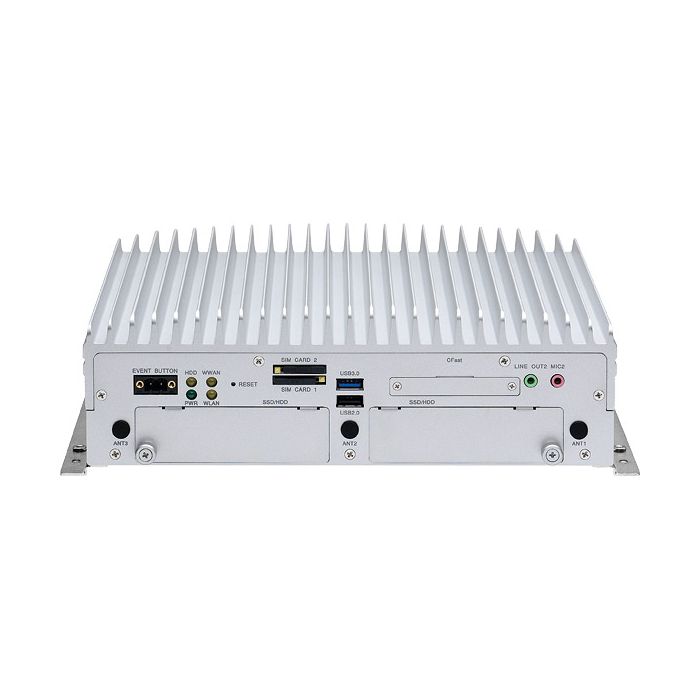

VTC7230 - i3-5010U, 3x sim support, 2x SATA SSD

_CPU

_Memory

_{2 channel 204-pin DDR3L SO-DMIM socket support 1333/1600MHz up to 16GB, default 2GB}

_Storage

_{2 x 2.5" SATA 3.0 SSD/HDD (externally accessible), RAID 0,1 supported (optional lockable storage available)}

_{1 x CFast (externally accessible)}

_Expansion

_{1 x full size Mini-PCIe socket (USB 2.0)}

_{1 x full size Mini-PCIe socket (USB 2.0 + PCIe)}

_{1 x full size Mini-PCIe socket (USB 2.0 + PCIe)}

_{1 x half size Mini-PCIe socket (USB 2.0 + PCIe)}

_Function

_{1 x default U-blox UBX-G6010 GPS module (50-channel and GALIELO) or optional modules with Dead Reckoning or GLONASS support Built-in G-sensor}

_{I/O Interface-Front}

_{4 x LED for power, storage, WWAN, WLAN}

_{2 x externally accessible SATA 3.0 SSD/HDD tray, RFID 0, 1 supported (optional lockable storage available)}

_{1 x dual USB type A connector for USB 3.0 port + USB 2.0 port}

_{2 x externally accessible SIM card socket (selectable)}

_{1 x phone jack 3.5mm}

_{1 x Mic-In}

_{1 x phone jack 3.5mm}

_{1 x Line-Out}

_{1 x externally accessible CFast card socket with cover}

_{1 x event button (trigger type)}

_{1 x reset button}

_{3 x antenna hole for WWAN/WLAN/BT}

_{I/O Interface-Rear}

_{1 x 9~36VDC input with ignition}

_{1 x dual USB type A connector for USB 3.0 port + USB 2.0 port}

_{2 x RJ45 10/100/1000 Fast Ethernet with LED}

_{1 x phone jack 3.5mm}

_{1 x Mic-In}

_{1 x phone jack 3.5mm}

_{1 x Line-Out with 1.5W output each}

_{1 x DB-15 VGA. Resolution up to 2560 x 1600 @60Hz}

_{1 x DP port. Resolution up to 2560 x 1600 @60Hz}

_{2 x DB-9 RS-232}

_{1 x DB-9 RS-232/422/485 (RI/5V/12V selectable)}

_{1 x DB-9 for CAN 2.0B (optional CAN Bus 2.0B Mini-PCIe card)}

_{2 x MCU-DI}

_{2 x MCU-DO}

_{1 x 16-pin terminal block}

_{1 x CAN Bus 2.0B (on board)}

_{1 x optional OBDII module (ASE J1939 or J1708)}

_{8 x Programmable GPIO
(Digital Input)
Input voltage (internal type): 5VDC TTL (default)
Input voltage (source type): 3~12VDC
(Digital Output)
Digital Output (sink type): 5VDC TTL (default), max current: 20mA
Digital Output (source type): 3~24VDC, max current: 150mA 1 x 12VDC output (2A), SM Bus 4 x antenna hole for WWAN/ WLAN/ BT/GPS 1 x Fuse (15A)}

_{Power Management}

_{Selectable boot-up & shut-down voltage for low power protection by software Setting 8-level power on/off delay time by software Status of ignition and low voltage can be detected by software Support S3/S4 suspend mode}

_{Operating System}

_{Windows 8, WES8 Window 7, WES7 Linux kernel 3.X}

_Dimensions

_{260 mm (W) x 206 mm (D) x 79.5 mm (H) (10.24" x 8.11" x 3.13") Weight: 2.5kg}

_Environment

_{Operating temperatures : Ambient with air -30°C to 60°C Storage temperatures : -35°C to 85°C}
