VTC6222 - Intel Atom E3950, 4xPOE

Be the first to review this product

A$0.00

In stock

SKU

VTC 6222

Fanless 4-CH PoE In-Vehicle Computer with Intel Atom® E3950

Details

Fanless 4-CH PoE In-Vehicle Computer with Intel Atom® E3950

· Intel Atom® processor quad core E3950, up to 2.0GHz

· 4 x PoE (802.3af/at, max. 60W)

· Built-in u-blox-M8N GPS

· Built-in CAN Bus 2.0B

· Three video outputs, one VGA and two HDMI

· E Mark conformity

· 3 x mini-PCIe socket expansion

· Dual external storage (compatible with 15mm disk)

· 1 x USB DOM to run OS

· 1 x SD card for exporting and backing up data

If you need assistance to find a vehicle PC that best suits your requirements, get in touch with our team today

More Information

brand

Nexcom

Specifications

CPU	Intel Atom® processor quad core E3950, up to 2.0GHz, 12W, 4 core
Memory	1 x 204-pin DDR3L SO-DIMM socket support 1866MHz up to 8GB. Default 4GB
Video Output	Chipset Intel® HD graphics 5052 x HDMI 1.4b up to 4096 x 2160 @30Hz1 x VGA up to 1920 x 1200 @60Hz
Storage	2 x 2.5" SSD/HDD SATA 3.0 (compatible with 15mm drive)1 x SD memory card 3.0 (externally accessible)1x USB EDC for USB DOM
Expansion	1 x Full size mini-PCIe socket (USB 2.0, (USB 3.0, Co-lay M.2)) with 2 x external SIM1 x Full size mini-PCIe socket (USB 2.0 + PCIe 2.0)1 x Half size mini-PCIe socket (USB 2.0 + PCIe 2.0)
GNSS and On Board Sensor	1 x Default U-blox NEO-M8N GNSS for GPS/Glonass/QZSS/Galileo/BeidouG Sensor (3-axis, 10-bit resolution)TPM 2.0 (optional)
LAN and Power over Ethernet	4-Port LAN, 10/100/1000 Mbps I210-IT GbE, PoE 802.3af/at, max. 60W1-Port LAN, 10/100/1000 Mbps I210-IT GbE

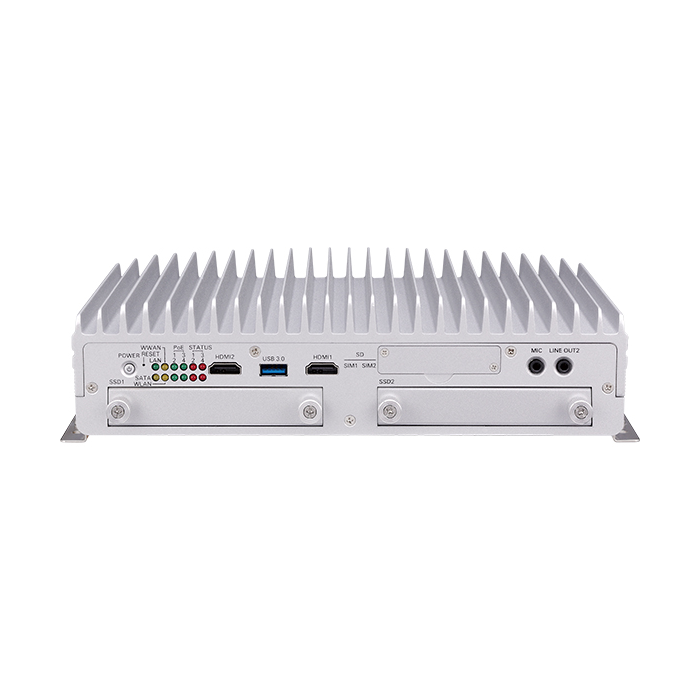

I/O Interface-Front	12 x LED indicators (including 3 x programmable LED)2 x Externally accessible SIM card socket with cover2 x 2.5" removable SSD tray1 x Externally accessible SD card socket with cover1 x Reset button1 x Power button1 x USB 3.0 type A (5V/0.9A)2 x HDMI 1.4b1 x Mic-in, 1 x Line-out
I/O Interface-Rear	1 x 3-pin terminal block for 9V~48V DC1 x RJ45 10/100/1000 Mbps4 x PoE 802.3af/at (max. 60W)1 x VGA1 x DB9 full RS-2324 x SMA antenna2 x USB 2.0 type A (5V/0.5A)1 x Line-out1 x DB15 (DIO) - 4 x DI with isolation - 4 x DO with isolation - Vin, GND for GPIO1 x DB15 (MULTI PORT) - 1 x RS422/RS485 - 1 x RS232 (TX/RX) - 1 x CAN 2.0B - 1 x 12VDC, 2A output (Vout, GND)
Power Management	Power input 9~48 VDCSelectable boot-up & shut-down voltage for low power protection by softwareSetting 8-level power on/off delay time by softwareSupport S3/S4 suspend mode10~255 seconds WDT support, setup by softwareSDK (Windows/Linux) including utility and sample code
Operating System	Windows 10/Linux
Dimensions	260mm (W) x 196mm (D) x 66.5mm (H)
Weight	3.2kg
Environment	Operating temperatures: -40°C to 70°C (w/ industrial SSD) with air flowStorage temperatures: -40°C to 80°CRelative humidity: 10% to 90% (non-condensing)Vibration (SSD) - Operating: MIL-STD-810G, Method 514.6, Category 4, common carrier US highway truck vibration exposure - Storage: MIL-STD-810G, Method 514.6, Category 24, minimum integrity testShock (SSD) - Operating: MIL-STD-810G, Method 516.6, Procedure I, functional shock=40g - Non-operating: MIL-STD-810G, Method 516.6, Procedure V, crash hazard shock test=75g
Standards/Certifications	CEFCC Class AE13 mark
