Intel Atom® processor E3950, up to 2.0GHz, 12W, 4 core
Memory
1 x 204-pin DDR3L SO-DIMM socket support 1866MHz up to 8GB. default 4GB
Video Output
Chipset Intel® HD graphics 5051 x HDMI 1.4b up to 4096 x 2160 @30Hz2 x VGA up to 1920 x 1200 @60Hz
Storage
1 x 2.5” SATA 3.0 external SSD (compatible with 9mm drive)1 x CFast (externally accessible), optional mSATA
Expansion
1 x Full size mini-PCIe socket (USB 2.0) with 2 x external SIM1 x Full size mini-PCIe socket (USB 2.0 + PCIe 2.0), optional full size mini-PCIe socket (USB 2.0) with 2 x external SIM1 x Full size mini-PCIe socket (USB 2.0 + PCIe 2.0)1 x M.2 3042 B key (USB 2.0, USB 3.0) with 2 x external SIM1 x M.2 3042 B key (USB 2.0, USB 3.0, PCIe 2.0) with 2 x external SIM
GNSS and On Board Sensor
1 x Default u-blox NEO-M8N GNSS module for GPS/Glonass/QZSS/Galileo/BeidouOptional M8U modules with dead reckoning availableG Sensor (3-axis, 10-bit resolution)
LAN
2-Port LAN, 10/100/1000 Mbps I210-IT GbE, optional 3-port LAN

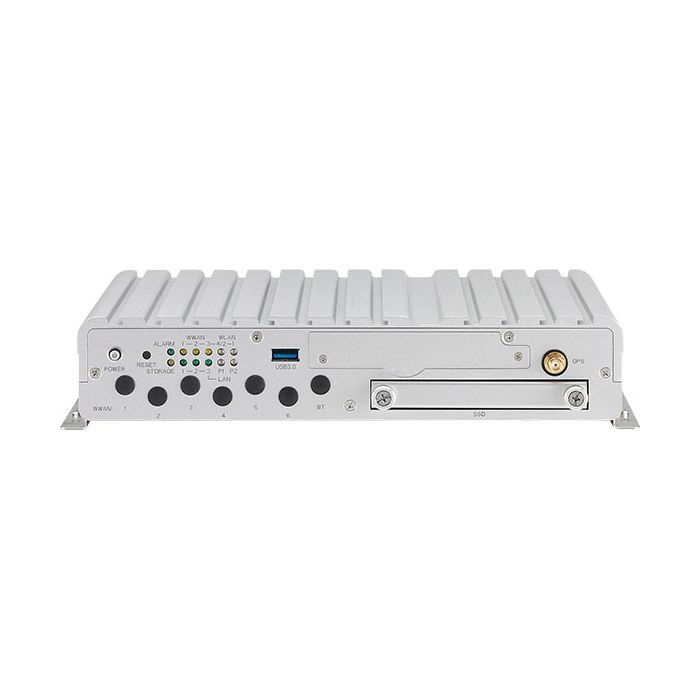

I/O Interface-Front
12 x LED indicators (including 2 x programmable LED)6 x Externally accessible SIM card sockets with cover1 x 2.5" removable SSD tray1 x Externally accessible CFast card socket with cover1 x Reset button1 x Power button1 x USB 3.0 type A (5V/0.9A)8 x SMA antenna
I/O Interface-Rear
1 x 3-pin terminal block for 9V~48 VDC2 x USB 2.0 type A (5V/0.5A)2 x RJ45 LAN port, 10/100/1000 Mbps1 x Mic-in, 2 x Line-out2 x VGA1 x HDMI 1.4b1 x DB9 full RS-2323 x SMA antenna1 x DB9 for RS-232 TX/RX, RS-485, USB 2.01 x 18-pin terminal block1 x CAN Bus 2.0B (on board)4 x DI4 x DOVin, GND for GPIO
Power Management & Software Support
Wide voltage input 9~48 VDC Selectable boot-up & shut-down voltage for low power protection by softwareSetting 8-level power on/off delay time by softwareSupport S3/S4 suspend mode10~255 seconds WDT support, setup by softwareSDK (Windows/Linux) including utility and sample code
Operating System
Windows 10/Linux
Dimensions
260mm (W) x 196mm (D) x 50mm (H) (10.24” x 7.71” x 1.97”)
Weight
2.5kg
Environment
EnvironmentOperating temperatures: - -40°C to 70°C (w/ industrial SSD) with air flowStorage temperatures: -40°C to 80°CRelative humidity: 10% to 90% (non-condensing)Shock (SSD/HDD): - Operating: MIL-STD-810G, Method 516.6, Procedure I, functional shock=20g - Non-operating: MIL-STD-810G, Method 516.6, Procedure V, crash hazard shock test=75g
Standards/Certifications
CEFCC Class AE13 mark
Description
Intel Atom® processor quad core E3950, up to 2.0GHz
