VTC1911-IPK - Intel Atom E3815, Dual Sim IP67 rated PC

Be the first to review this product

A$0.00

In stock

SKU

VTC 1911-IPK

Intel Atom® E3815 Telematics IoT Gateway IP67 Water and Dust Resistant

Details

The VTC 1911-IPK is a waterproof entry-level vehicle PC based on Intel Atom® E3815 1.46GHz designed for the wet, dirty and harsh environment. The rugged design resists water and dust to IP67 levels. It also complies with stringent MIL-STD-810G standard for voibration and support wide temp and input voltage range. Itegrated GPS and optional LTE, Wifi and CAN make it the complete package.

· IP67 precision design to resist water and dust

· Built-in CAN 2.0B. Optional OBDII function (SAE J1939/J1708)

· U-blox NEO-M8N on board

· Dual SIM cards for WWAN modules

· Additional waterproof HDMI connector (by request)

· Smart power management with ignition on/off delay via software control and low voltage protection

· Wide range DC input from 9V~36V

· Wide operating temperature -40°C~70°C

· Certified by CE/FCC/E13 mark

More Information

brand

Nexcom

Specifications

CPU	Intel Atom® processor Bay Trail E3815, 1.46GHz
Memory	1 x 204-Pin DDR3L SO-DIMM socket support 1066MHz/1333MHz up to 8GB. Default 2GB
Storage	1 x mSATA 1 x SATA DOM or 1 x 2.5” SSD
Expansion	1 x Full size mini-PCIe socket (USB 2.0) 1 x Full size mini-PCIe socket (mSATA + USB 2.0 + PCIe)
Function	1 x U-blox NEO-M8N on board (support GPS/Glonass/QZSS/Galileo/ BeiDou) Built-in G-sensor TPM 2.0
I/O Interface-Front	4 x LED for power, WWAN, Wi-Fi, storage 2 x SIM socket (micro type) with cover 1 x M12 (A-code) connector for 10/100/1000Mbps Ethernet 1 x (Male) 15-pin waterproof D-SUB connector - 1 x RS485 (TX+/TX-) - 1 x USB 2.0 - 1 x Mic-in (L/R) - 1 x Line-out (L/R) - 1 x Optional VIOB-CAN-05/06 or 2 x video input 1 x (Female) 15-pin waterproof D-SUB connector - 2 x RS-232 (TX/RX) - 1 x CAN 2.0B (w/ isolation) - 3 x DI, 3 x DO 2 x Antenna hole for WWAN/WLAN

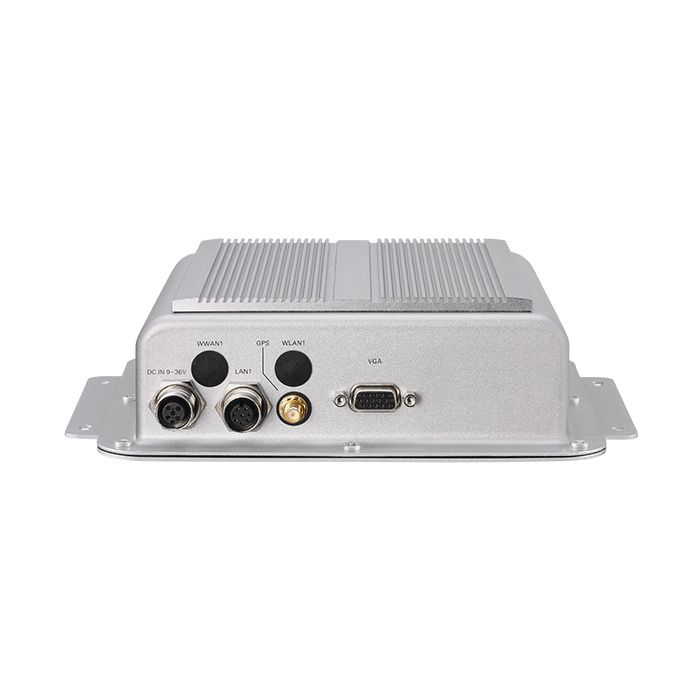

I/O Interface-Rear	1 x M12 5-pin circular power connector (ignition, power, GND) 1 x M12 (A-code) connector for 10/100/1000Mbps Ethernet 1 x 15-Pin waterproof D-SUB connector for VGA output 1 x Waterproof HDMI connector (by request) 3 x Antenna hole for WWAN/WLAN/GPS
Operating System	Windows 7, WES7 Windows 8, WES8 Windows 10 Linux (by request)
Dimensions	185 x 167 x 56.5 (W x D x H) (mm) (7.28” x 6.57” x 2.22”) Weight: 1.1kg (2.42bs)
Environment	Temperature - Operating temperatures: -40°C~70°C - Storage temperatures: -45°C~85°C - Damp heat test per EN60068-2-30 Humidity - IEC60068-2-3, damp heat steady state test, 40°C, 95%, 48Hrs Vibration - IEC 60068-2-64, 2G - Operating: MIL-STD-810G, 514.6C Procedure 1, Category 4 - Storage: MIL-STD-810G, 514.6E Procedure 1, Category 24 Shock - MIL-STD-810G, 516.6 Procedure I, trucks and semi-trailers=40g - Crash hazard: Procedure V, ground equipment=75g
Certifications	CE FCC Class A E13
