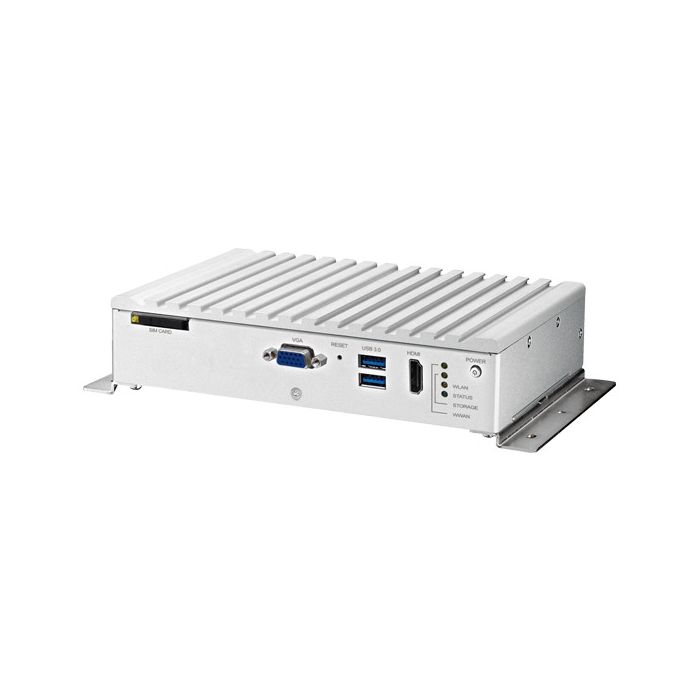

VTC1020PA - Intel Atom x5-E3930, 9~36DCV input

Be the first to review this product

A$0.00

In stock

SKU

VTC1020PA

Intel Atom® x5-E3930 processor Fanless In-Vehicle Computer for Public Transportation

Details

Intel Atom® x5-E3930 processor Fanless In-Vehicle Computer for Public Transportation

· Compact and fanless design

· Built-in GPS receiver with optional dead reckoning function

· Variety of wireless communication options

· Built-in CAN bus 2.0B. Optional OBD SAE J1939

· Smart power management with Ignition on/off delay via software control and low voltage protection

· Wide range DC input from 9~36V

· Certified by CE/FCC/E13 mark

· 5 x RS232 and 2 x RS485

· 3 x Audio-in and 3 x Audio-out switchable

· 3 x Video ouput (VGA + HDMI + LVDS)

More Information

brand

Nexcom

Specifications

CPU	Intel Atom® x5-E3930 processor dual core 1.3GHz
Memory	1 x 204-pin DDR3L SO-DIMM socket support 1866MHz up to 8GB. Default 4GB
Expansion	1 x mini-PCIe socket (USB) 1 x mini-PCIe socket (PCIe + USB + mSATA)
Function	1 x u-blox NEO-M8N module (support GPS/Gloness/QZSS/Galileo/Beidou) or optional module with Dead Reckoning Built-in G-sensor Built-in TPM
I/O Interface-Front	1 x power button 4 x LED indicators for Status (programmable), Storage, WLAN and WWAN 1 x system reset button 2 x type A USB 3.0 compliant host, supporting system boot up 1 x DB-15 VGA 1 x HDMI 1 x external SIM card socket 1 x DB26 LVDS interface with 12VDC, USB 2.0 and power button 2 x Audio-in, 2 x Audio-out
I/O Interface-Rear	1 x 9~36VDC input with Ignition and 20W typical power consumption 1 x 12V/2A DC output, SMBus, power button 1 x RJ45 with LEDs for 10/100/1000Mbps Ethernet 1 x Audio-in, 1 x Audio-out 1 x DB15 COM port for 4 x RS232 Tx/Rx and 2 x RS485 1 x DB15 for multi port - 1 x CAN2.0 (optional SAE J1939) - 1 x RS232 Tx/Rx - 1 x odometer and direction for optional GPS DR - 5 x programmable DIO Input voltage (internal type): 5VDC TTL (default) Input voltage (source type): 3~24VDC Digital output (sink type): 5VDC TTL (default), max current: 20mA Digital output (source type): 3~24VDC 3 x Antenna hole for SMA-type antenna (WWAN/WLAN/GPS)
Expandable Storage	1 x 2.5” SSD SATA 3.0 1 x mSATA
Operating System	Windows 10 Linux YOCTO (by request)
Power Management	Selectable boot-up & shut-down voltage for low power protection HW design ready for 8-level delay time on/off at user's self configuration Power on/off ignition, software detectable Support S3, S4 suspend mode
Dimensions	185mm (W) x 120mm (D) x 50mm (H) (7.3" x 4.7" x 1.96") 1.1kg (2.42 lbs)
Construction	Aluminum top case with sheet metal
Environment	-40°C to 70°C (w/ industrial SSD) with air flow Storage temperatures: -40°C to 85°C Relative humidity: 10% to 90% (non-condensing) Vibration: Vibration (SSD): 2g @5~500 Hz Operating: MIL-STD-810F, Method 514.5, Category 20, Ground Vehicle – Highway Truck Storage: MIL-STD-810F, Method 514.5, Category 24, Integrity Test Shock (SSD): Operating: MIL-STD-810F, Method 516.5, Procedure I, Trucks and semi-trailers=20g Crash hazard: MIL-STD-810F, Method 516.5, Procedure V, Ground equipment=75g
Standards/Certifications	CE approval FCC Class A E13 mark
