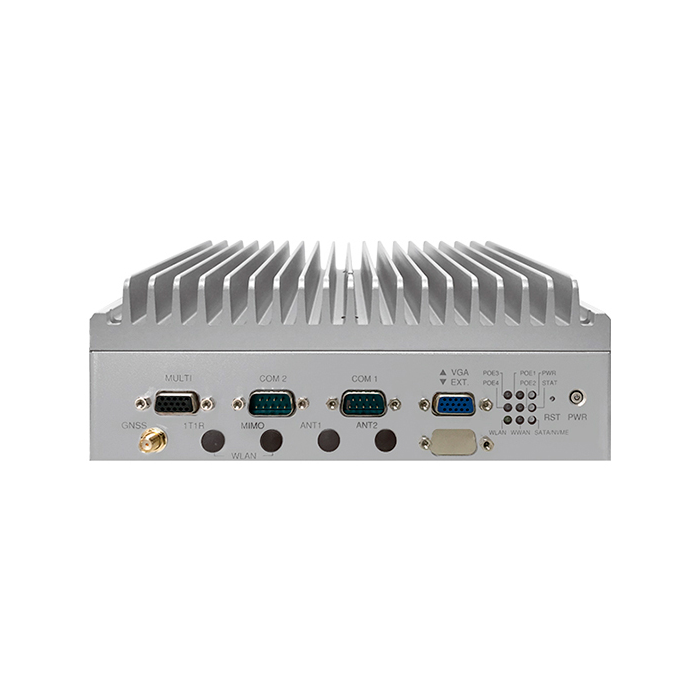

VTC7260-xC4 Fanless AI-Aided Vehicle Computer
Fanless AI-aided Vehicle Computer with Intel Core 11th Gen CPU
Key Features:
- Intel 11th Gen Tiger Lake UP3, cost-efficient performance
- Compact, rugged and fanless design
- Rich I/Os, 4 x PoE+, GbE, 4 x USB 3.2/2.0&2 x RS232/422/485
- 1 x 2.5” SSD, 1 x mSATA and 1 x NVMe SSD for data integrity
- Up to 3 combinations of LTE/5G, and Wi-Fi 5/6 for mobile router function
- Triple display, VGA, HDMI and DP for multi video-out
- 9~36V DC-IN with ignition control & OCP/OVP
- Wide range operating temperature of -30°C~60°C (15W TDP&PoE)
- Military standard of anti-vibration/shock for OHV applications
- CE/FCC, UKCA, Emark Certified
The VTC 7260-xC4 is an in-vehicle AI-assisted telematics computer that uses Intel's 11th Gen. Tiger Lake UP3 processor, which has 25% more processing power than the previous generation. Additionally, its 10-year product lifespan can meet the requirements for long-term support appropriate for any in-vehicle applications. The VTC 7260-xC4 can be easily installed in any small cabinet space thanks to its compact, tough, and fanless design, which also helps to minimise maintenance requirements while providing round-the-clock services. The VTC 7260-xC4 is a sophisticated in-vehicle computer because it also includes a variety of peripherals, including triple displays, audio in/out, DI/DO, and 936VDC with IGN control. Other features include 2.5GbE, PoE+, USB 3.2, isolation CANBus, serial ports, ultra-speed NVMe storage, and isolation CANBus, USB 3.2, USB 3.0, and IGN control.
Key Features:
- Intel 11th Gen Tiger Lake UP3, cost-efficient performance
- Compact, rugged and fanless design
- Rich I/Os, 4 x PoE+, GbE, 4 x USB 3.2/2.0&2 x RS232/422/485
- 1 x 2.5” SSD, 1 x mSATA and 1 x NVMe SSD for data integrity
- Up to 3 combinations of LTE/5G, and Wi-Fi 5/6 for mobile router function
- Triple display, VGA, HDMI and DP for multi video-out
- 9~36V DC-IN with ignition control & OCP/OVP
- Wide range operating temperature of -30°C~60°C (15W TDP&PoE)
- Military standard of anti-vibration/shock for OHV applications
- CE/FCC, UKCA, Emark Certified
| brand | Nexcom | ||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
||||||||||||||||||||||||||||||||||||||||||||||||||
| Description | The VTC 7260-xC4 is an in-vehicle AI-assisted telematics computer that uses Intel's 11th Gen. Tiger Lake UP3 processor, which has 25% more processing power than the previous generation. Additionally, its 10-year product lifespan can meet the requirements for long-term support appropriate for any in-vehicle applications. The VTC 7260-xC4 can be easily installed in any small cabinet space thanks to its compact, tough, and fanless design, which also helps to minimise maintenance requirements while providing round-the-clock services. The VTC 7260-xC4 is a sophisticated in-vehicle computer because it also includes a variety of peripherals, including triple displays, audio in/out, DI/DO, and 936VDC with IGN control. Other features include 2.5GbE, PoE+, USB 3.2, isolation CANBus, serial ports, ultra-speed NVMe storage, and isolation CANBus, USB 3.2, USB 3.0, and IGN control. Key Features:
|
