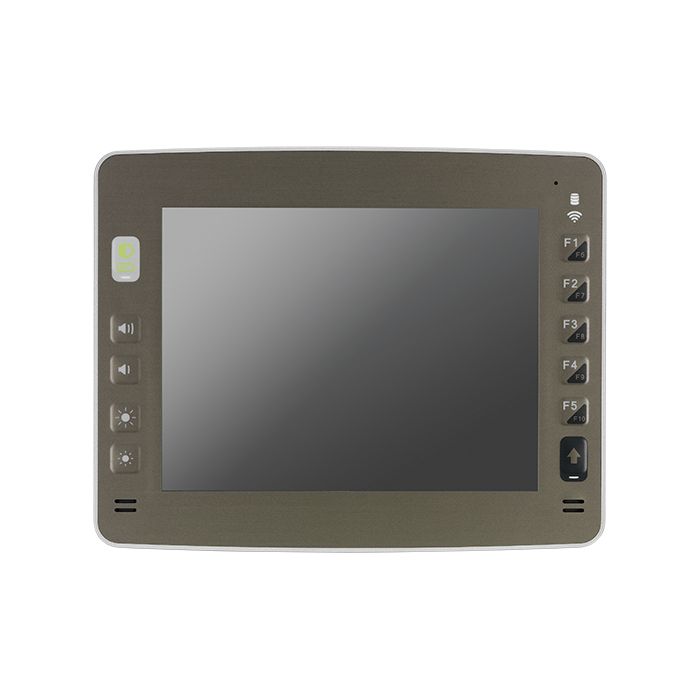

| Specifications |
LCD Panel
|
12.1-inch TFT LCD panel with LED backlight 1024 x 768 pixels (XGA)
Brightness: 1200 cd/m² (typical)
Viewing angle: 170° (H):170°(V)
Contrast ratio: 750:1 (typical)
|
Touch Screen Sensor
|
5-wire resistant touch Anti-glare coating surface Transmission rate: 81 ± 3%
|
CPU & Chipset
|
Intel Atom® x7-E3950 processor dual core 1.6GHz
Memory One 204-pin DDR3L 1600MHz SO-DIMM slot (default: 2GB)
|
Expandable Storage
|
1 x CFast 1 x 2.5" SATA SSD bay
|
Expansion
|
3 x Full-size mini-PCIe socket (PCIe + USB)
1 x Full-size mini-PCIe socket (USB)
1 x CFast 2 x Micro SIM slot
|
I/O Interface-Front
|
LCD back light on/off Volume control (+/-) Brightness control (+/-)
Light sensor
4 x LED indicators (power/battery charging, WLAN, shift, storage)
F1 ~ F10 programmable function 2 x Built-in 2W speakers
|
I/O Interface-Lateral
|
Right Side:
1 x CFast card slot
1 x System reset button
1 x USB 2.0 host type A connector Left Side:
1 x Antenna for WWAN
|
I/O Interface-Bottom (VMC 4020-4A1, IP65)
|
1 x M12 (22 pins)
-1 x 10/100/1000, LAN1 (wake up on LAN)
-1 x RS232 (Tx/Rx)/RS422/RS485 (RI, 5V/0.5A, 12V/0.5A)
-1 x DR (Odometer + Speed )
-2 x GPI
Source: 9V ~ 60V-in (default)
Sink: external 0V ~ 60VDC pull-high selected by software settings
Input High "1" Voltage: 3.3 ~ 60 VDC
Input Low "0" Voltage: 0 ~ 2 VDC
-2 x GPO
Source: 9V ~ 60V-in (default)
12V/6mA, 24V/12mA, 36V/18mA, 48V/24mA, 60V/30mA
Sink: external max. 0.5A pull high 1 x M12 (21-pin)
-1 x Mic-in
-1 x Line-out
-1 x Full RS232/422/485 (RI, 5V/0.5A, 12V/05A)
-2 x Isolated CANBus 2.0B
When installing CAN06, CAN2 becomes J1939/ISO15675-4
When installing CAN05, CAN2 becomes J1708
-1 x iButton 1 x M12 (5-pin)
-9V ~ 60V DC in (UPS battery: 12V, 24V, 36V and 48V) 1 x M12 (8-pin)
-Either of DC output or RFID
1 x DC output (12V/2A )
1 x RFID (Tx/Rx, 12V/2A) 1 x M12 (8-pin)
-1 x 10/100/1000, LAN2 (optional for 802.3af/at) 1 x M12 (8-pin)
-2 x USB Type A 1 x M12 (18-pin)
-Expansion port 1 x GPS Antenna SMA connector (On housing)
|
I/O Interface-Bottom (VMC 4020-4A0, Front IP65)
|
1 x Mic in and Line out 2 x RJ45 10/100/1000
-LAN1, wake up on LAN
-LAN2, optional for 802.3at 1 x USB type A
1 x DB9 full RS232/422/485 (RI, 5V/0.5A, 12V/05A)
1 x 26 pins connector:
-1 x Full RS232/422/485 (RI, 5V/0.5A, 12V/05A)
-1 x RFID ( Tx/Rx )
-2 x Isolated CAN 2.0B
-1 x J1939/ISO15765-4 or J1708 (CAN05 or CAN06)
When installing CAN06, CAN2 becomes J1939/ISO15675-4
When installing CAN05, CAN2 becomes J1708
-1 x DR (Odometer + Speed)
-1 x iButton
-1 x GPI
Source: 9V ~ 60V-in (default)
Sink: external 0V ~ 60DC pull-high selected by software settings
Input High "1" Voltage: 3.3 ~ 60 VDC
Input Low "0" Voltage: 0 ~ 2 VDC
-2 x GPO
Source: 9V ~ 60V-in (default)
12V/6mA, 24V/12mA, 36V/18mA, 48V/24mA, 60V/30mA
Sink:external external max. 0.5A pull high 1 x DB15 for expansion port 1 x 3-pin terminal block
-9V ~ 60V DC in (UPS battery: 12V, 24V, 36V and 48V)
|
I/O Interface-Top
|
2 x Antenna for Wi-Fi
|
Mechanical
|
Cooling system: Fanless Enclosure: Aluminum die castig
Mounting: VESA 75 Ingress protection: Complete IP65, or IP65 without covering the
bottom Dimension: 340mm(W) x 262mm(H) x 87mm(D) Weight: 5kg
|
Power Management
|
9V ~ 60V DC in (UPS: 12V, 24V, 36V and 48V) Reverse protection/over voltage protection/under voltage protection Ignition On/O control & programmable On/O delay timing Wake up by LAN1, SMS, RTC and ignition
|
Environment
|
Operating temperatures: Ambient with air -30°C to 60°C
Storage temperatures: -30°C to 70°C
Relative humidity: 10% to 90% (non-condensing)
Vibration
Operating: MIL-STD-810G, 514.6 Procedure 1, Category 4
Storage: MIL-STD-810G, 514.6 Procedure 1, Category 24 Shock
Operating: MIL-STD-810G, Method 516.6,
Procedure I, trucks and semi-trailers = 40g
Crash hazard: MIL-STD-810G, Method 516.6, Procedure V, ground
equipment = 75g
|
Operating System
|
Windows 10 Linux: YOCTO (by request)
|
Standards/Certifications
|
CE/FCC class B/E13
|
|
