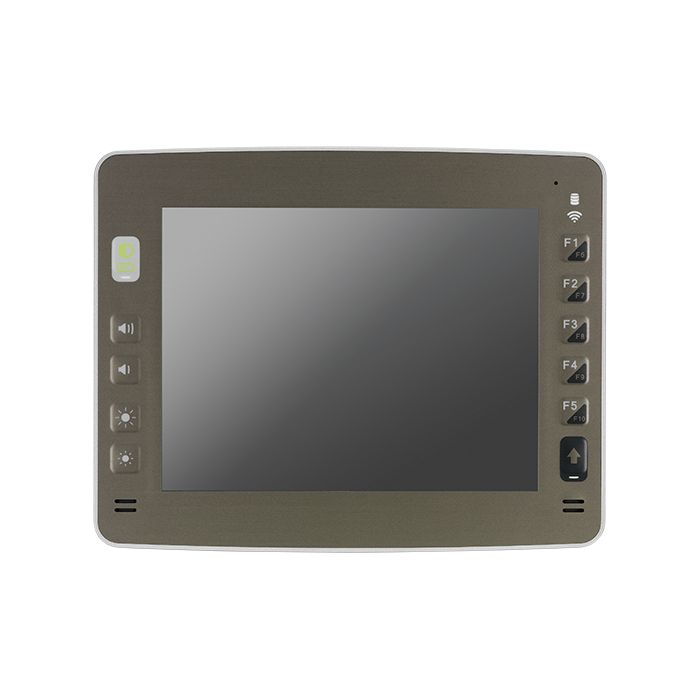

10.4" Rugged Vehicle Mount Computer with Intel Atom® x7-E3950 processor, Touchscreen and IP65

· 10.4" XGA TFT LCD monitor with 5-wire resistive touch

· Built-in Intel Atom® x7-E3950 processor, 1.6GHz

· Aluminum die-casting and fanless design

· Analog camera x 3 (CVBS)

· Complete IP65 housing

· Automatic/manual brightness control

· Isolated CANBus 2.0 x 2

· 10/100/1000Mhz for independent ethernet x 2

· On screen F1 ~ F10 programmable function keys

· Military standard for vibration and shock

· UPS Battery & PoE 802.3af/at (optional)

· iButton and RFID for ID identification

· Micro SIM x 2

· Wide range DC input from 9V ~ 60V DC in

· Sunlight readable capability: 1,200nits LCD brightness

· One expansion port reserved

· Operating system: Windows and Linux

· CE/FCC/EMark

More Information

Specifications

_{LCD Panel}	_{10.4-inch TFT LCD panel with LED backlight 1024 x 768 pixels (XGA)} _{Brightness: 1200 cd/m² (typical)} _{Viewing angle: 140° (H):120°(V)} _{Contrast ratio: 500:1 (typical)}
_{Touch Screen Sensor}	_{5-wire resistant touch Anti-glare coating surface Transmission rate: 81 ± 3%}
_{CPU & Chipset}	_{Intel Atom® x7-3950 processor dual core 1.6GHz Memory One 204-pin DDR3L 1600MHz SO-DIMM slot (Default: 2GB)}
_{Expandable Storage}	_{1 x CFast 1 x 2.5" SATA SSD bay}
_Expansion	_{3 x Full-size mini-PCIe socket (PCIe + USB)} _{1 x Full-size mini-PCIe socket (USB)} _{1 x CFast 2 x Micro SIM slot}
_{I/O Interface-Front}	_{LCD back light on/off Volume control (+/-) Brightness control (+/-)} _{Light sensor 4 x LED indicators (power/battery charging, WLAN, shift, storage)} _{F1 ~ F10 programmable function 2 x Built-in 2W speakers}
_{I/O Interface-Lateral}	_{Right Side -1 x CFast card slot -1 x System reset button -1 x USB 2.0 host type A connectorr Left Side -1 x antenna for WWAN}
_{I/O Interface-Bottom (VMC3021-4A1, IP65)}	_{1 x M12 (22-pin) -1 x 10/100/1000, LAN1 (wake up on LAN) -1 x RS232 (Tx/Rx)/RS422/RS485 (RI, 5V/0.5A, 12V/0.5A) -1 x DR (odometer + speed ) -2 x GPI Source: 9V ~ 60V-in (default) Sink: external 0V ~ 60VDC pull-high selected by software settings Input High "1" Voltage: 3.3 ~ 60 VDC Input Low "0" Voltage: 0 ~ 2 VDC -2 x GPO Source: 9V ~ 60V-in (default) 12V/6mA, 24V/12mA, 36V/18mA, 48V/24mA, 60V/30mA Sink: external max. 0.5A pull high 1 x M12 (21-pin) -1 x Mic-in -1 x Line-out -1 x full RS232/422/485 (RI, 5V/0.5A, 12V/05A) -2 x Isolated CANBus 2.0B When installing CAN06, CAN2 becomes J1939/ISO15675-4 When installing CAN05, CAN2 becomes J1708 1 x iButton 1 x M12 (5-pin) -9V ~ 60V DC in (UPS battery: 12V, 24V, 36V and 48V) 1 x M12 (8-pin) -Either of DC output or RFID 1 x DC output (12V/2A ) 1 x RFID (Tx/Rx, 12V/2A)}
_{I/O Interface-Top}	_{2 x Antenna for Wi-Fi}
_Mechanical	_{Cooling system: Fanless Enclosure: Aluminum die castig Mounting: VESA 75} _{Ingress protection: Complete IP65 Dimension: TBD} _{Weight: 3.5kg, 7.7lb}
_{Power Management}	_{9V ~ 60V DC in (UPS: 12V, 24V, 36V and 48V)} _{Reverse protection/over voltage protection/under voltage protection} _{Ignition On/O control & programmable On/O delay timing Wake up by LAN1, SMS, RTC and ignition}
_Environment	_{Operating temperatures: Ambient with air -30°C to 60°C} _{Storage temperatures: -30°C to 70°C} _{Relative humidity: 10% to 90% (non-condensing)} _{Vibration Operating: MIL-STD-810G, 514.6 Procedure 1, Category 4 Storage: MIL-STD-810G, 514.6 Procedure 1, Category 24 Shock Operating: MIL-STD-810G, Method 516.6, Procedure I, trucks and semi-trailers = 40g} _{Crash hazard: MIL-STD-810G, Method 516.6, Procedure V, ground equipment = 75g}
_{Operating System}	_{Windows 10 Linux: YOCTO (by request)}
_{Standards/Certifications}	_{CE/FCC class B/E13}

Description

10.4" Rugged Vehicle Mount Computer with Intel Atom® x7-E3950 processor, Touchscreen and IP65

· 10.4" XGA TFT LCD monitor with 5-wire resistive touch

· Built-in Intel Atom® x7-E3950 processor, 1.6GHz

· Aluminum die-casting and fanless design

· Analog camera x 3 (CVBS)

· Complete IP65 housing

· Automatic/manual brightness control

· Isolated CANBus 2.0 x 2

· 10/100/1000Mhz for independent ethernet x 2

· On screen F1 ~ F10 programmable function keys

· Military standard for vibration and shock

· UPS Battery & PoE 802.3af/at (optional)

· iButton and RFID for ID identification

· Micro SIM x 2

· Wide range DC input from 9V ~ 60V DC in

· Sunlight readable capability: 1,200nits LCD brightness

· One expansion port reserved

· Operating system: Windows and Linux

· CE/FCC/EMark

Reviews

Write Your Own Review

Downloads

Datasheet

Product Data Sheet

User Manual

VMC3021 - 10" AIO Vehicle Computer

LCD Panel

10.4-inch TFT LCD panel with LED backlight 1024 x 768 pixels (XGA)

Brightness: 1200 cd/m² (typical)

Viewing angle: 140° (H):120°(V)

Contrast ratio: 500:1 (typical)

Touch Screen Sensor

5-wire resistant touch Anti-glare coating surface Transmission rate: 81 ± 3%

CPU & Chipset

Intel Atom® x7-3950 processor dual core 1.6GHz Memory One 204-pin DDR3L 1600MHz SO-DIMM slot (Default: 2GB)

Expandable Storage

1 x CFast 1 x 2.5" SATA SSD bay

Expansion

3 x Full-size mini-PCIe socket (PCIe + USB)

1 x Full-size mini-PCIe socket (USB)

1 x CFast 2 x Micro SIM slot

I/O Interface-Front

LCD back light on/off Volume control (+/-) Brightness control (+/-)

Light sensor 4 x LED indicators (power/battery charging, WLAN, shift, storage)

F1 ~ F10 programmable function 2 x Built-in 2W speakers

I/O Interface-Lateral

Right Side-1 x CFast card slot-1 x System reset button-1 x USB 2.0 host type A connectorr Left Side-1 x antenna for WWAN

I/O Interface-Bottom (VMC3021-4A1, IP65)

I/O Interface-Top

2 x Antenna for Wi-Fi

Mechanical

Cooling system: Fanless Enclosure: Aluminum die castigMounting: VESA 75

Ingress protection: Complete IP65 Dimension: TBD

Weight: 3.5kg, 7.7lb

Power Management

9V ~ 60V DC in (UPS: 12V, 24V, 36V and 48V)

Reverse protection/over voltage protection/under voltage protection

Ignition On/O control & programmable On/O delay timing Wake up by LAN1, SMS, RTC and ignition

Environment

Operating temperatures: Ambient with air -30°C to 60°C

Storage temperatures: -30°C to 70°C

Relative humidity: 10% to 90% (non-condensing)

VibrationOperating: MIL-STD-810G, 514.6 Procedure 1, Category 4Storage: MIL-STD-810G, 514.6 Procedure 1, Category 24 ShockOperating: MIL-STD-810G, Method 516.6, Procedure I, trucks and semi-trailers = 40g

Crash hazard: MIL-STD-810G, Method 516.6, Procedure V, ground equipment = 75g

Operating System

Windows 10 Linux: YOCTO (by request)

Standards/Certifications

CE/FCC class B/E13
