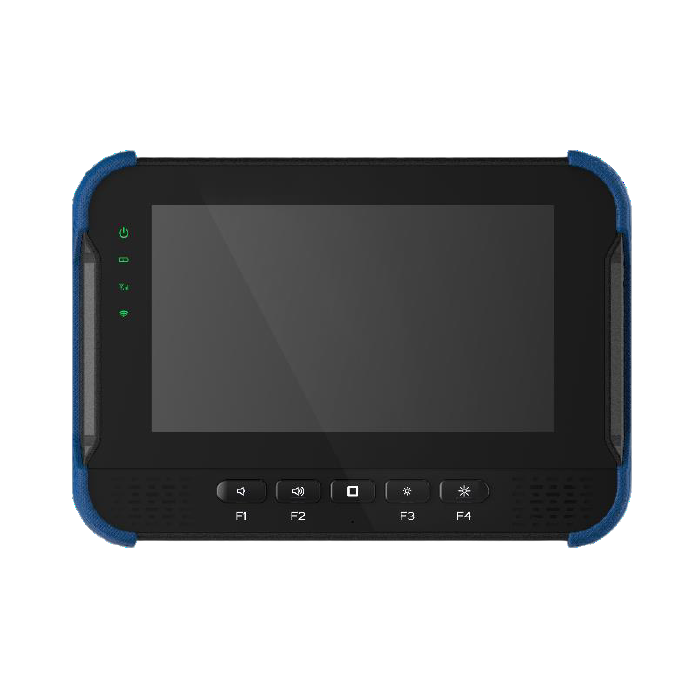

The VMC 220 is an 8-inch all-in-one robust vehicle mount computer designed for the warehouses, port, logistic, and material handling markets. It implements the NXP i.MX 8M Quad low-power processor on both Android and Linux platforms, and offers complete IP65 and IK08. VMC 220 can support analog camera x 4 for security purposes and takes less than 1 second to see video content. An optional backup battery can help to back up data when the car power battery stops supplying. LCD panel: 1,000nits typ. guarantees to reach sunlight-readable. Wide-range power input (9V~60V) can let VMC 220 be capable of setting up in various facilities and vehicles. The M.2 slot x 2 are designed for WLAN and WWAN wireless connectivity.
Key Features:
Built-in NXP i.MX 8M Quad low-power processor, up to 1.3 GHz
8" TFT LCD monitor with projected capacitive touch screen
IPS LCD with wide viewing angle and resolution 1280 x 720
Touch panel cover thickness 3mm for IK08 protection
1 x M.2 2230 Key E socket (SDIO 3.0, PCIe 2.0, UART)
1 x M.2 3042/3050/3052 Key B socket (USB 3.0) for LTE/5G NR module with 1 x external Micro-SIM slot, with 1 x internal Micro-SIM slot
GNSS and Onboard Sensor
1 x Default u-blox NEO-M8N GNSS for GPS/Glonass/QZSS/Galileo/Beidou
Optional M8U modules with dead reckoning available
G Sensor and gyroscope
LAN
1-Port LAN, 10/100/1000 Mbps
I/O Interface-Front
Volume control keys (+/-) with LED
Brightness control keys (+/-) with LED
F1 ~ F4 programmable function keys with LED
1 x Shift key with LED
Light sensor
5 x LED indicators (power, battery, WWAN, WLAN, storage)
2 x Built-in 2W speakers
1 x Mic
I/O Interface-Lateral
Left Side
1 x System reset button w/ cover
1 x MicroSD slot w/ cover
1 x Micro-SIM slot w/ cover
Right Side
1 x Power button
1 x USB 2.0 type A connector w/ cover
1 x Mic-in (mono), 1 x Line-out (mono) w/ cover
I/O Interface-Rear
1 x Full RS232 (COM, w/ 5VDC, 12VDC)
1 x Power connector, M12 A-coded 5-pin
1 x 10/100/1000 Mbps LAN, M12 A-coded 8-pin
1 x M12 A-coded 8 pin for 2 x USB 2.0
1 x M12 (MULTI PORT1, A-coded 12-pin)
2 x GPI
2 x GPO
1 x Isolated CANBus 2.0B
PWM (Speed)+Direction+GND
1 x M12 (MULTI PORT2, A-coded 12-pin)
1 x RS232 (Tx, Rx)
1 x RS232 (Tx, Rx)/RS422/RS485
4 x Composite video input
2 x SMA connector for WWAN
3 x SMA connector for WLAN
1 x SMA connector for Bluetooth
1 x SMA connector for GNSS
Mechanical
Cooling system: fanless
Enclosure: plastic
IK Rating: IK08 (housing and touch screen)
Mounting: VESA 75
Ingress protection: complete IP65
Dimension: 250x179x67.5 mm
Weight: 2.6kg
Power Management
9V ~ 60V DC-in
Back-up battery for approx. 15 min of operation (optional)
Reverse protection/over-voltage protection/under voltage protection
Ignition on/off control & programmable on/off delay timing
Wake up by LAN, SMS, RTC and ignition
RFID Module (optional, occupied 1 x USB 2.0)
13.56-MHz RFID/contactless standard protocols Compatibles with all major global secured baseband ISO standards including ISO14443 Type A, MIFARE classic cards, and Smartlabel ISO15693
Environment
Operating temperatures: Ambient with air -30°C to 70°C, ambient with air and without battery
