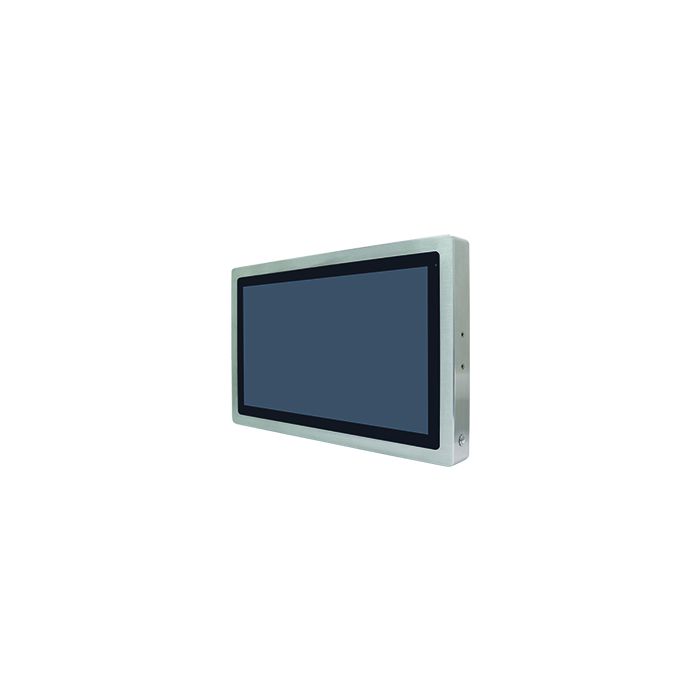

ViTAM-917A 17" IP66/IP69K Stainless Steel Panel PC
17" New Gen. IP66/IP69K Stainless Steel Panel PC
17" New Gen. IP66/IP69K Stainless Steel Panel PC
· 17" TFT-LCD Projected Capacitive Touch
· 6th Gen Intel Core i3-6100U / Core i5-6300U(Option)
· True Flat Front Bezel and Grade 304 Stainless Steel Enclosure (Grade 316 for Option).
· IP66/IP69K Rated with M12 Connectors.
· Touch on/off Button on the Side Edge for Hygienic Cleaning.
| brand | Aplex Technology Inc. |
|---|---|
| Specifications | System
CPUIntel 6th Core i3-6100U / Core i5-6300U(Option) System ChipsetSoC System Memory1 x SO-DIMM DDR4 slot, up to 16GB Power ConsumptionTBD USB1 x M12 8-pin for USB 2.0 with waterproof cap Serial / Parallel1 x M12 8pin for COM 1, RS-232/422/485, Default RS-232, with waterproof cap LAN1 x M12 8pin for LAN with waterproof cap Power1 x M12 3pin DC Power with waterproof cap / 1 x Power Switch on the rear side / 1 x Touch on/off button on the side Storage Space
HDD/SSD1 x 2.5" HDD/SSD / 1 x mSATA slot onboard Expansion
Expansion slot1 x Mini PCIe slot for WIFI/BT (optional) Display
LCD Size17" TFT-LCD Max. resolution1280 x 1024 Max. color16.7M Luminance(cd/m²)350 Viewangle(H°/V°)170/170 Contrast1000:1 Backlight lifetime(hrs)50000 Touch Screen(Option)
Touch TypeProjected Capacitive Touch InterfaceUSB Light transmission(%)Over 90% Power
Power inputDC 9~36V Mechanical
ConstructionStainless steel enclosure IP ratingIP66 / IP69K MountingVESA 75 x 75, Yoke mount Dimension(mm)432 x 358 x 55.3 Net weight(Kgs)8 Kg Enviroment
Operating temperature(°C)0~50°C Storage temperature(°C)-30~70°C Storage humidity10 to 90% @ 40°C, non- condensing CertificationCE / FCC CLASS A Operating System SupportWindows 7 64 bitWindows 8 64 bitWindows 10 IoT 64 bit
|
| Description |
17" New Gen. IP66/IP69K Stainless Steel Panel PC · 17" TFT-LCD Projected Capacitive Touch · 6th Gen Intel Core i3-6100U / Core i5-6300U(Option) · True Flat Front Bezel and Grade 304 Stainless Steel Enclosure (Grade 316 for Option). · IP66/IP69K Rated with M12 Connectors. · Touch on/off Button on the Side Edge for Hygienic Cleaning. |
