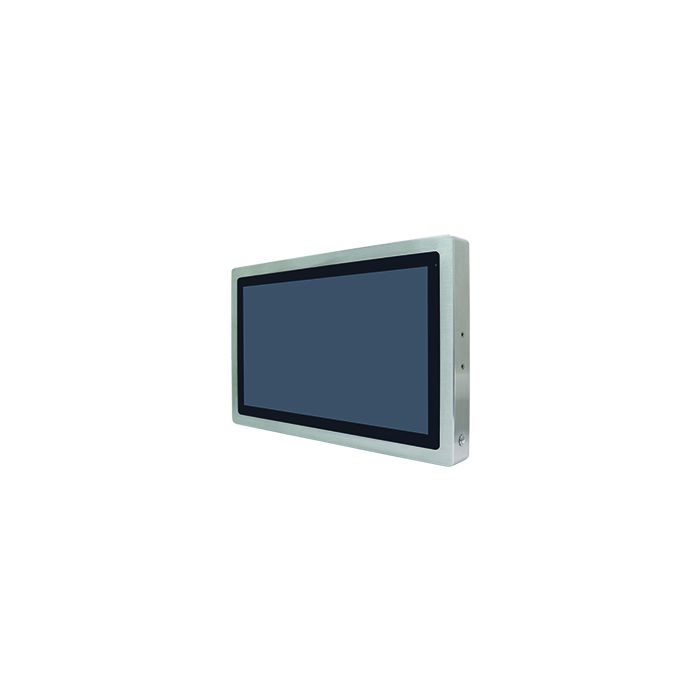

ViTAM-812 12.1" IP66/IP69K Stainless Panel PC
12.1" New Gen. IP66/IP69K Stainless Steel Panel PC
12.1" New Gen. IP66/IP69K Stainless Steel Panel PC
· 12.1" TFT-LCD Projected Capacitive Touch.
· Intel Celeron N2930 1.83GHz Onboard Processor.
· True Flat Front Bezel and Grade 304 Stainless Steel Enclosure (Grade 316 for Option).
· IP66/IP69K Rated with M12 Connectors.
· Touch on/off Button on the Side Edge for Hygienic Cleaning.
| Brand | Aplex Technology Inc. |
|---|---|
| Specifications | System
CPUOnboard Intel Celeron N2930(1.83GHz) Processor System ChipsetSoC System MemoryOnboard 4GB DDR3L SDRAM , up to 8GB(option) Power Consumption 21W USB1 x M12 8-pin for 2 x USB 2.0 with waterproof cover and chain Serial / Parallel1 x M12 8-pin COM1, RS-232/422/485, default RS-232, with waterproof cover and chain LAN1 x M12 8-pin for LAN with waterproof cover and chain Power1 x M12 3-pin for DC power with waterproof cover and chain / 1 x Power switch on the side / 1 x Touch on/off button on the side Storage Space
HDD/SSD1 x 2.5" SATA3 HDD Expansion
Expansion slot1 x MiniPCIe slot for WIFI/BT(optional), 4G/LTE(optional) Display
LCD Size12.1" TFT-LCD Max. resolution800 x 600, 1024 x 768 (optional) Max. color262K, 16.2M (optional) Luminance(cd/m²)450, 500 (optional) Viewangle(H°/V°)160/150, 160/140 (optional) Contrast800:1 / 700:1 (optional) Backlight lifetime(hrs)50000, 30000 (optional) Touch Screen(Option)
Touch TypeProjected Capacitive Touch InterfaceUSB Light transmission(%)Over 90% Power
Power inputDC 9~36V Mechanical
Construction304 Stainless steel chassis(default), 316 Stainless steel chassis(optional) IP ratingIP66 / IP69K MountingVESA 75 x 75, Yoke mount Dimension(mm)335 x 265 x 53 Net weight(Kgs)5.3 Kg Enviroment
Operating temperature(°C)0~50°C Storage temperature(°C)-30~70°C Storage humidity10 to 90% @ 40°C, non- condensing CertificationCE / FCC CLASS A Operating System SupportWEC 7, Windows Embedded 7, Windows Embedded 8.1, Windows 10 IoT ENT LTSB |
| Description | 12.1" New Gen. IP66/IP69K Stainless Steel Panel PC · 12.1" TFT-LCD Projected Capacitive Touch. · Intel Celeron N2930 1.83GHz Onboard Processor. · True Flat Front Bezel and Grade 304 Stainless Steel Enclosure (Grade 316 for Option). · IP66/IP69K Rated with M12 Connectors. · Touch on/off Button on the Side Edge for Hygienic Cleaning. |
