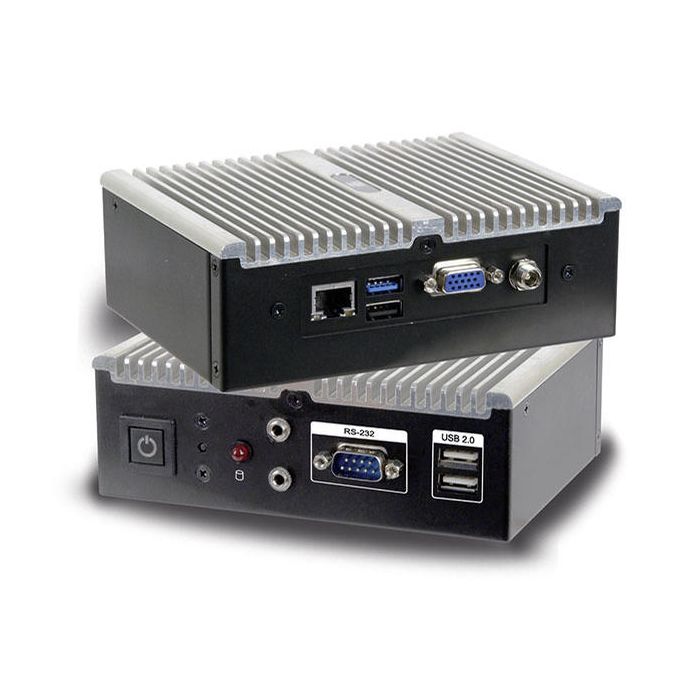

uIBX-230-BT Celeron N2930, Low power consumption

A$0.00

In stock

SKU

uIBX-230-BT

Ultra Compact Size ,Intel® Celeron® Processor N2930 1.83 GHz

Ultra Compact Size ,Intel® Celeron® Processor N2930 1.83 GHz

● Ultra compact size embedded system

● Intel® Celeron® processor N2930 1.83 GHz 7.5W on-board

● 1 x 2.5'' SATA 6Gb/s HDD/SSD drive bay

● DDR3L SO-DIMM for low power consumption

Specifications

Spec Item	Description
Form factor
SBC Form Factor	CPU:Intel® Celeron® N2930 1.83 GHz Chipset:SoC System Memory:1 x 204-pin DDR3L 1.35 V SO-DIMM (system max: 8 GB) Pre-installed 2 GB
I/O Interface
I/O Ports	1 x USB 3.0 3 x USB 2.0 Ethernet: 1 x RJ-45 1 x PCIe GbE by Intel® I210 RS-232:1 x DB-9 Display:1 x VGA Resolutio: 2560 x 1600 Audio:1 x Line-out, 1 x Mic-in
System
Cooling method / System Fan	Fanless
Drive Bays	1 x 2.5' SATA 3Gb/s HDD/SSD bay
Color
Color	Silver
Dimensions
Dimensions	135.6 x 102.8 x 47
Weight
Weight	470 g/1.4 kg
Environment
Operating Temperature	-20°C ~60°C with air flow (SSD)
Humidity	5% ~ 95%, non-condensing
