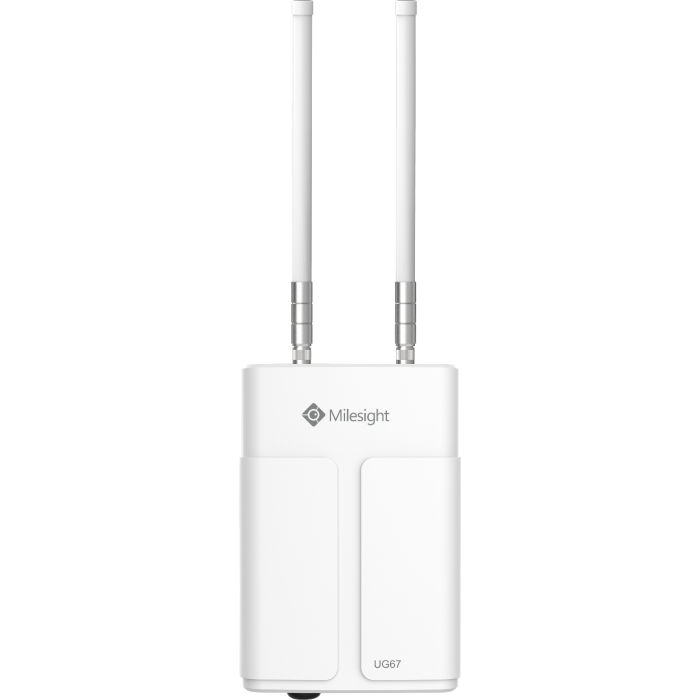

Shop UG67 IP67 Outdoor LoRaWAN Gateway with LTE

Details

The UG67 is an 8-channel outdoor LoRaWAN gateway. With its SX1302 LoRa chip and high-performance quad-core CPU, the UG67 can connect to over 2000 nodes. The UG67 has a range of up to 15 kilometres and an IP67 weatherproof case, making it excellent for smart agriculture, smart metering, and a variety of other outdoor applications. Not only does the UG67 enable numerous back-haul backups through Ethernet, Wi-Fi, and cellular, but it also includes integrated standard network servers (such as TTI, ChirpStack, and so on) as well as a built-in network server and Milesight IoT Cloud for easy deployment.

Key Features:

IP67 Rating
64-bit Quad-Core Processor
New SX1302 LoRa Chip
Built-in Supercapacitor
Multiple Backhaul Connectivities
Internal Antenna Design
Embedded Network Server
Compatible with Multiple Network Servers

More Information

brand

Milesight IoT

Specifications

Model	UG67
Hardware System	CPU	Quad-core 1.5 GHz, 64-bit ARM Cortex-A53
	Memory	512 MB DDR4 RAM
	Flash	8 GB eMMC
LoRaWAN®	Antenna	Fully Integrated Internal Antenna (Optional: 2 × 50 Ω N-Female External Antenna Connector)
	Channel	8
	Frequency Band	CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923
	Sensitivity	-140dBm Sensitivity @292bps
	Output Power	27dBm Max
	Protocol	V1.0 Class A/Class B/Class C and V1.0.2 Class A/Class B/Class C
Ethernet Interface	Port	1 × RJ45 (PoE PD Supported)
	Physical Layer	10/100/1000 Base-T (IEEE 802.3)
	Data Rate	Rate 10/100/1000 Mbps (Auto-Sensing)
	Interface	Auto MDI/MDIX
	Mode	Full or Half Duplex (Auto-Sensing)
Wi-Fi	Antenna	Fully Integrated Internal Antenna
	Standards	IEEE 802.11 b/g/n
	Tx Power	802.11b: 18 dBm +/-2.0 dBm (11 Mbps)
		802.11g: 15 dBm +/-2.0 dBm (6 Mbps)
		802.11g: 15 dBm +/-2.0 dBm (54 Mbps)
		802.11n@2.4 GHz: 14 dBm +/-2.0 dBm (MCS0_HT20)
		802.11n@2.4 GHz: 14 dBm +/-2.0 dBm (MCS7_HT20)
		802.11n@2.4 GHz: 13 dBm +/-2.0 dBm (MCS0_HT40)
		802.11n@2.4 GHz: 13 dBm +/-2.0 dBm (MCS7_HT40)
Cellular Interface (Optional)	Antenna	Fully Integrated and Internal Antenna
Cellular Interface (Optional)	SIM Slot	1
GPS	Antenna	Internal Antenna
	Sensitivity	-167dBm@Tracking, -149dBm@Acquisition, -161dBm@Re-acquisition
	Position Accuracy	<2.5 m CEP
Software	Network Protocols	PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS, HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, MQTT, etc.
	VPN Tunnel	OpenVPN/IPsec/PPTP/L2TP/GRE/DMVPN
	Access Authentication	CHAP/PAP/MS-CHAP/MS-CHAPV2
	Firewall	ACL/DMZ/Port Mapping/MAC Binding/URL Filter
	Management	Web, CLI, SMS, On-demand dial up, DeviceHub, Milesight IoT Cloud
	Reliability	WAN Failover
Power Supply and Consumption	Power Supply	1. 1 × 802.3 af PoE input
	Power Supply	2. 1 × 12 VDC with M12 Connector
	Consumption	Typical 3.6 W, Max 4.8 W
Physical Characteristics	Ingress Protection	Protection IP67
	Dimensions	250 x 172 x 92 mm
	Mounting	Wall or Pole Mounting
Others	Reset Button	1 × RST
	Console Port	1 × Type-C Port
	LED Indicators	1 × SYS, 1 × LoRa, 1 × LTE
	Built-in	Watchdog, RTC, Timer
	Certification	CE, FCC
Environmental	Operating Temperature	-40°C to +70°C (-40℉ to +158℉)
	Operating Temperature	Reduced Cellular Performance Above 60°C
	Storage Temperature	-40°C to +85°C (-40℉ to +185℉)
	Ethernet Isolation	1.5 kV RMS
	Relative Humidity	0% to 95% (non-condensing) at 25°C/77℉

Description

The UG67 is an 8-channel outdoor LoRaWAN gateway. With its SX1302 LoRa chip and high-performance quad-core CPU, the UG67 can connect to over 2000 nodes. The UG67 has a range of up to 15 kilometres and an IP67 weatherproof case, making it excellent for smart agriculture, smart metering, and a variety of other outdoor applications. Not only does the UG67 enable numerous back-haul backups through Ethernet, Wi-Fi, and cellular, but it also includes integrated standard network servers (such as TTI, ChirpStack, and so on) as well as a built-in network server and Milesight IoT Cloud for easy deployment.
