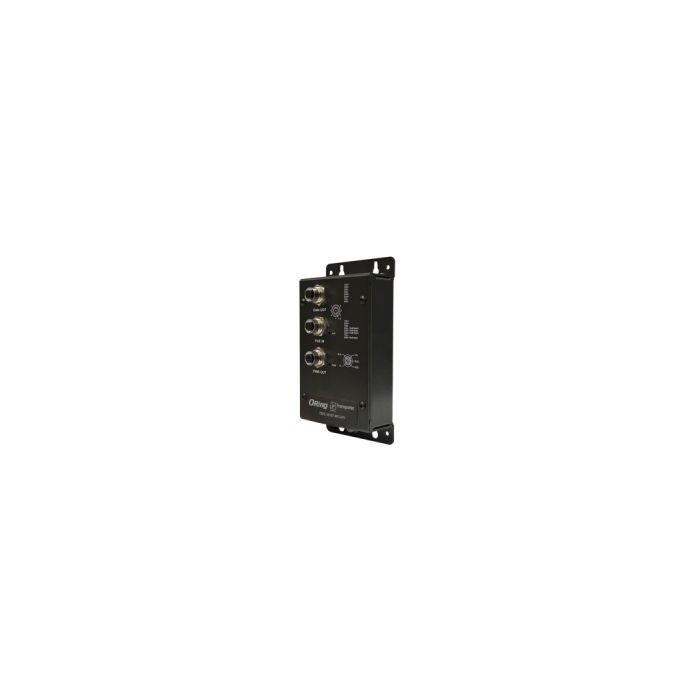

TSPL-101GT EN50155 1-port Gigabit High Power PoE Splitter
EN50155 Industrial 1-port Gigabit High Power PoE Splitter, IEEE802.3at standard compliant, 12VDC output, M12 connector
- Leading EN50155-compliant Ethernet switch for rolling stock application
- Fully compliant with IEEE802.3at standard
- Supports 10/100/1000Base-T(X) for PoE In and Data Out
- Power Short Circuit Protection for Power Output
- Auto protection for Over Voltage Power Input
- Supports Power Outputs up to 25Watts Max.
- Ultra-rugged enclosure M12 connector for toughest industrial usages
- Wall Mounting enabled
More Information
| Specifications |
| Physical Ports |
|
| 10/100/1000Base-T(X) Port with PoE Input in M12 Auto MDI/MDIX |
1 x M12 connector (8-pin M12 A-coding) |
| 10/100/1000Base-T(X) Output Port in M12 Auto MDI/MDIX |
1 x M12 connector (8-pin M12 A-coding) |
| Power Output Connector |
1 x M12 connector (5-pin M12 A-coding) |
| Operating Voltage |
|
| Input Voltage |
36 ~ 57 VDC |
36 ~ 57 VDC |
| Output Voltage |
24V @ 1.04A max. |
12V @ 2.08A max. |
| LED Indicator |
|
| Power Indicator |
PWR / Ready: 1 x LED
Green On: Power is on and functioning Normally. |
| Protection |
|
| Short Circuit Protection |
Present |
| Over Load Protection |
Present |
| Physical Characteristics |
|
| Enclosure |
IP-40 |
| Dimensions (W x D x H) |
88.9 (W) x 40 (D) x 178.2 (H)mm (3.5 x 1.57 x 7.0 inch) |
| Weight (g) |
385 g |
385 g |
| Environmental |
|
| Storage Temperature |
-40 to 80°C (-40 to 176°F) |
| Operating Temperature |
-25 to 75oC (-13 to 167oF) |
| Operating Humidity |
5% to 90% Non-condensing |
| Regulatory Approvals |
|
| EMI |
CISPR 22, EN 55011, FCC Part 15B Class A |
| EMC |
EN 55022, EN 55024(CE EMC),EN 50121-4,EN 60945, FCC, EN 50121-3-2(EN50155), EN 61000-6-2,EN 61000-6-4,IEC 61000-3-2 ,IEC 61000-3-3
|
| EMS |
EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8 (PFMF), EN61000-4-11 (DIP)
|
| Shock |
IEC 60068-2-27, IEC 61373(EN50155) |
| Free Fall |
IEC 60068-2-31 (IEC 60068-2-32) |
| Vibration |
IEC 60068-2-6, IEC 61373(EN50155) |
| Safety |
EN60950-1 |
| Warranty |
5 years |
|
| Description |
- Leading EN50155-compliant Ethernet switch for rolling stock application
- Fully compliant with IEEE802.3at standard
- Supports 10/100/1000Base-T(X) for PoE In and Data Out
- Power Short Circuit Protection for Power Output
- Auto protection for Over Voltage Power Input
- Supports Power Outputs up to 25Watts Max.
- Ultra-rugged enclosure M12 connector for toughest industrial usages
- Wall Mounting enabled
|
