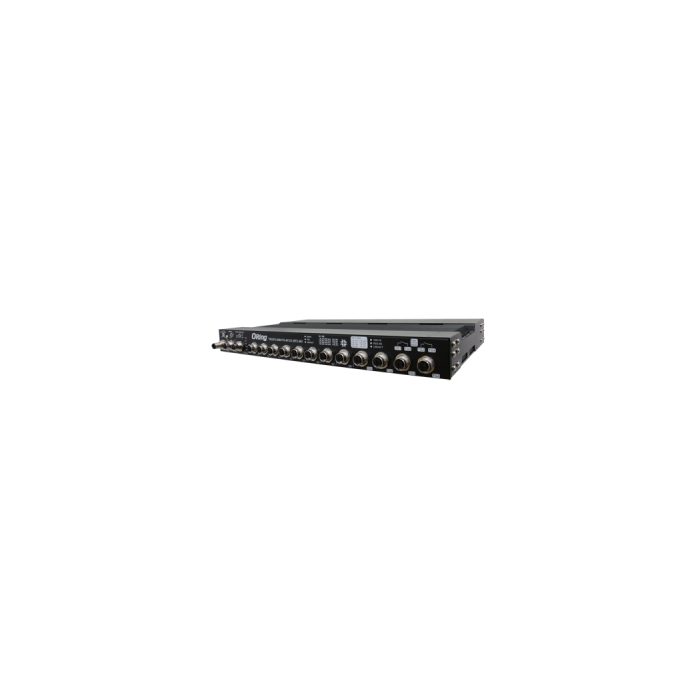

| Physical Ports |
|
|
10/100/1000Base-T(X) with P.S.E. Ports in M12 Auto MDI/MDIX
|
8 (8-pin female X-coding connector) |
| 1G/2.5G/5G/10GBase-T Ports in M12 Auto MDI/MDIX |
4 (8-pin female X-coding connector) |
| Technology |
|
| Ethernet Standards |
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3ab for 1000Base-T
IEEE 802.3bz for 2.5GBase-T
IEEE 802.3an for 10GBase-T
IEEE 802.3x for Flow control
IEEE 802.3ad for LACP (Link Aggregation Control Protocol)
IEEE 802.1p for COS (Class of Service)
IEEE 802.1Q for VLAN Tagging
IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol)
IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol)
IEEE 802.1x for Authentication
IEEE 802.1AB for LLDP (Link Layer Discovery Protocol)
IEEE 802.3at PoE specification (up to 30 Watts per port for P.S.E.)
|
| MAC Table |
8K |
| Priority Queues |
8 |
| Processing |
Store-and-Forward |
| Switch Properties |
Switching latency: 7 us
Switching bandwidth: 96 Gbps
Max. Number of Available VLANs: 4095
IGMP multicast groups: 128 for each VLAN
Port rate limiting: User Define
|
| Jumbo frame |
Up to 9.6K Bytes
|
| Security Featues |
Device Binding security feature
Enable/disable ports, MAC based port security
Port based network access control (802.1x)
VLAN (802.1Q ) to segregate and secure network traffic
Radius centralized password management
SNMPv3 encrypted authentication and access security
Https / SSH enhance network security
|
| Software Features |
STP/RSTP/MSTP (IEEE 802.1D/w/s)
Redundant Ring (O-Ring) with recovery time less than 30ms over 250 units
TOS/Diffserv supported
Quality of Service (802.1p) for real-time traffic
VLAN (802.1Q) with VLAN tagging and GVRP supported
IGMP Snooping
IP-based bandwidth management
Application-based QoS management
DOS/DDOS auto prevention
Port configuration, status, statistics, monitoring, security
DHCP Server/Client/Relay
SMTP Client
Modbus TCP
|
| Network Redundancy |
O-Ring
O-Chain
MSTP (RSTP/STP compatible)
|
| RS-232 Serial Console Port |
RS-232 in 5-pin M12 female A-coding connector with a console cable. 115200bps, 8, N, 1 |
| LED Indicators |
|
| Power Indicator (PWR) |
Green : Power LED x 1 |
| Ring Master Indicator (R.M.) |
Green : Indicates that the system is operating in O-Ring Master mode |
| O-Ring Indicator (Ring) |
Green : Indicates that the system operating in O-Ring mode
Green Blinking : Indicates that the Ring is broken.
|
| Fault Indicator (Fault) |
Amber : Indicate unexpected event occurred |
| 10/100/1000Base-T(X) M12 P.S.E. Port Indicator |
Top dual color LED for Ethernet speed indicator: Green LED for 1Gbps, Amber for 100Mbps, Off for 10Mbps
Middle Blue LED for PoE enable indicator
Bottom Green LED for port Link/Act indicator |
| 1G/2.5G/5G/10GBase-T(X) M12 Port Indicator |
Top dual color LED for Ethernet speed indicator : Green LED for 10Gbps, Amber for 1Gbps
Middle dual color LED for Ethernet speed indicator: Green LED for 5Gbps, Amber for 2.5Gbps
Bottom Green LED for port Link/Act indicator
|
| Fault Contact |
|
| Relay |
Relay output to carry capacity of 3A at 24VDC on 5-pin M12 female connector (A-coding) |
| Power |
|
| Redundant Input power |
72/110VDC (50.4-154VDC) on 4-pin M12 male S-coding connector
|
| Power consumption (Typ.) |
41 Watts (power consumption of P.S.E. is not included)
|
| PoE Total Power Budget |
60Watts
|
| Overload Current Protection |
Present |
| Reverse Polarity Protection |
Present |
| Physical Characteristics |
|
| Enclosure |
IP-30 |
| Dimensions (W x D x H) |
438 (W) x 250 (D) x 44 (H) mm (17.2x9.8x1.7 inch) |
| Weight (g) |
3,919g |
| Environmental |
|
| Storage Temperature |
-40 to 85°C (-40 to 185°F) |
| Operating Temperature |
-40 to 75°C (-40 to 167°F) |
| Operating Humidity |
5% to 95% Non-condensing |
| Regulatory Approvals |
|
| EMI |
FCC Part 15, CISPR (EN55022) class A, EN50155 (EN50121-3-2, EN55011) |
| EMS |
EN61000-4-2 (ESD),EN61000-4-3 (RS), EN61000-4-4 (EFT),EN61000-4-5 (Surge), EN61000-4-6 (CS),EN61000-4-8, EN61000-4-11 |
| Shock |
IEC60068-2-27 |
| Free Fall |
IEC60068-2-32 |
| Vibration |
IEC60068-2-6 |
| Safety |
EN60950-1 |
| Other |
EN50155 |
| Warranty |
5 years |
