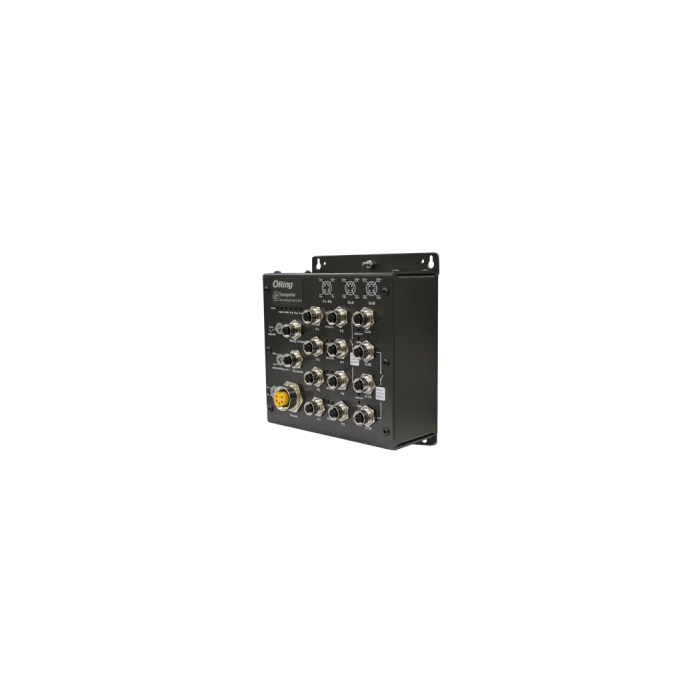

EN50155 10-port managed PoE Ethernet switch with 8x10/100Base-T(X) P.S.E. and 2x10/100/1000Base-T(X), A-coding M12 connector and 1xbypass included, 24VDC power inputs
10/100 Base-T(X) Ports in M12 Auto MDI/MDIX with P.S.E
8 x M12 connector (4-pin D-coding)
10/100/1000Base-T(X) ports in M12
2 x (combinig 2 x M12 connectors 4-pin D-coding for 1 Gigabit port)
RS-232 Serial Console Port
RS-232 in M12 connector (A-coding). Baud rate setting: 9600bps, 8, N, 1
Technology
Ethernet Standards
IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX IEEE 802.3ab for 1000Base-T IEEE 802.3x for Flow control IEEE 802.3ad for LACP (Link Aggregation Control Protocol ) IEEE 802.1p for COS (Class of Service) IEEE 802.1Q for VLAN Tagging IEEE 802.1D for STP (Spanning Tree Protocol) IEEE 802.1D-2004 for RSTP:2004 (Rapid Spanning Tree Protocol 2004) IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol) IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol) IEEE 802.1x for Authentication IEEE 802.1AB for LLDP (Link Layer Discovery Protocol) IEEE 802.3af PoE specification (up to 15.4 Watts per port for P.S.E.)
MAC Table
8192 MAC addresses
Priority Queues
4
Processing
Store-and-Forward
Switch Properties
Switching latency: 7 us Switching bandwidth: 5.6Gbps Max. Number of Available VLANs: 4096 IGMP multicast groups: 1024 Port rate limiting: User Define
Security Featues
Enable/disable ports, MAC based port security Port based network access control (802.1x) VLAN (802.1Q ) to segregate and secure network traffic Supports Q-in-Q VLAN for performance & security to expand the VLAN space Radius centralized password management SNMP v1/v2c/v3 encrypted authentication and access security Https / SSH enhance network security
Software Features
STP/RSTP:2004/MSTP (IEEE 802.1D/w/s) Redundant Ring (O-Ring) with recovery time less than 10ms over 250 units TOS/Diffserv supported Quality of Service (802.1p) for real-time traffic VLAN (802.1Q) with VLAN tagging and GVRP supported IGMP Snooping for multicast filtering Port configuration, status, statistics, monitoring, security SNTP for synchronizing of clocks over network Support PTP Client (Precision Time Protocol) clock synchronization DHCP Server / Client support Port Trunk support MVR (Multicast VLAN Registration) support Modbus TCP
Network Redundancy
O-Ring O-Chain RSTP:2004 MSTP
Warning / Monitoring System
Relay output for fault event alarming Syslog server / client to record and view events Include SMTP for event warning notification via email Event selection support
LED Indicators
Power Indicator
Green : Power LED x 2
R.M. Indicator
Green : Indicate system operated in O-Ring Master mode
O-Ring Indicator
Green : Indicate system operated in O-Ring mode
Fault Indicator
Amber : Indicate unexpected event occurred
10/100Base-T(X) M12 PoE Port Indicator
Up Green for port Link/Act. Down Green for PoE indicator. Amber for Collision/Duplex indicator.
10/100/1000Base-T(X) M12 Port Indicator
Green for Link/Act. Amber for 100Mbps indicator
Fault Contact
Relay
Relay output to carry capacity of 3A at 24VDC on M12 connector (5-pin A-coding)
Power
Redundant Input Power
Dual DC inputs. 24VDC (12 ~ 57VDC) on 5-pin M23 connector
Power Consumption (Typ.)
15 Watts (power consumption of P.S.E. is not included)
PoE Output Power
60 Watts (12~24VDC)
Overload Current Protection
Present
Reverse Polarity Protection
Present
Physical Characteristics
Enclosure
IP-30
Dimensions (W x D x H)
170 (W) x 75 (D) x196 (H) mm
Weight (g)
1510 g
Environmental
Storage Temperature
-40 to 85°C (-40 to 185°F)
Operating Temperature
-40 to 70°C (-40 to 158°F)
Operating Humidity
5% to 95% Non-condensing
Regulatory Approvals
EMI
FCC Part 15, CISPR (EN55022) class A, EN50155 (EN50121-3-2, EN55011, EN50121-4)
