●CPU: Intel 7th Gen Core CPU & Intel® Core™ i7-6700TE (2.4 GHz, quad-core, TDP=35W) Intel® Core™ i5-6500TE (2.3 GHz, quad-core, TDP=35W) ●Chipset: Intel® H110 ●System Memory: 2 x 260-pin DDR4 SO-DIMM, one 4 GB pre-installed (system max: 32GB) ●Power: Input - DC Jack: 9 V~36 V DC, Terminal Block: 9 V~36 V DC Consumption: 19 V@3.44 A (Intel® Core™ i7-6700TE with 8 GB memory) Internal Connector: 5V@3A or 12V@3A ●Reliability: Operating Shock - Half-sine wave shock 5G, 11ms, 100 shocks per axis Non-Operating Shock - Half-sine wave shock 15G, 11ms, 100 shocks per axis Operating Vibration - MIL-STD-810G 514.6C-1 (with SSD) Non-Operation Vibration - Half-sind mode IEC-60068-2-06 Safety/EMC - CE/FCC
I/O Interface
I/O Ports
●USB: 4 x USB 3.0 ●Ethernet: 2 x RJ-45 PCIe GbE by RTL8111G controller ●COM Port: 2 x RS-232/422/485 (DB-9, w/ 2.5kV isolation protection) ●Display: 1 x VGA (Up to 1920 x 1200@60Hz) 1 x HDMI 1.4 (up to 3840x2160@30Hz) ●Audio: 1 x Line-out, 1 x Mic-in
Expansion Slots
Expansion Slots
●PCIe Mini: 1 x Full-size PCIe Mini slot 1 x Full-size PCIe Mini slot (supports mSATA, colay with SATA) ●Backplane: 3A: 1 x PCIe x16, 2 x PCI 3B: 1 x PCIe x16, 1 x PCIe x4, 1 x PCI 3C: 3 x PCI
System
Cooling method / System Fan
Fanless
Drive Bays
1 x 2.5＂ SATA 6Gb/s HDD/SSD bay
Indicator&Buttons
Buttons
1 x Power Button 1 x Reset Button 1 x AT/ATX Switch
Physical Characteristics
Construction
Extruded aluminum alloys
Color
Color
Dark silver purple + Silver
Dimensions
Dimensions
132.6 x 255.2 x 190 (WxDxH) (mm)
Weight
Weight
4.2 kg/6.3 kg
Environment
Operating Temperature
i7-6700TE -20°C ~ 50°C with air flow (SSD) i5-6500TE -20°C ~ 60°C with air flow (SSD)
Humidity
10% ~ 95%, non-condensing
Description

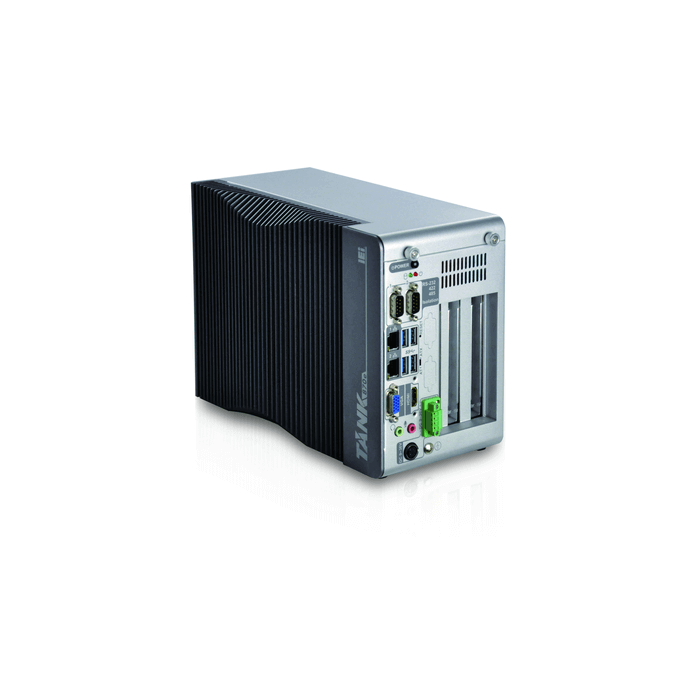

Ruggedized Fanless embedded system with 6th/7th Gen Intel® Core™ processor platform
● 6th/7th Gen Intel® Core™ processor platform with Intel® H110 chipset and DDR4 memory
● Support dual display VGA+HDMI
● On-board internal power connector for providing power to add-on cards
