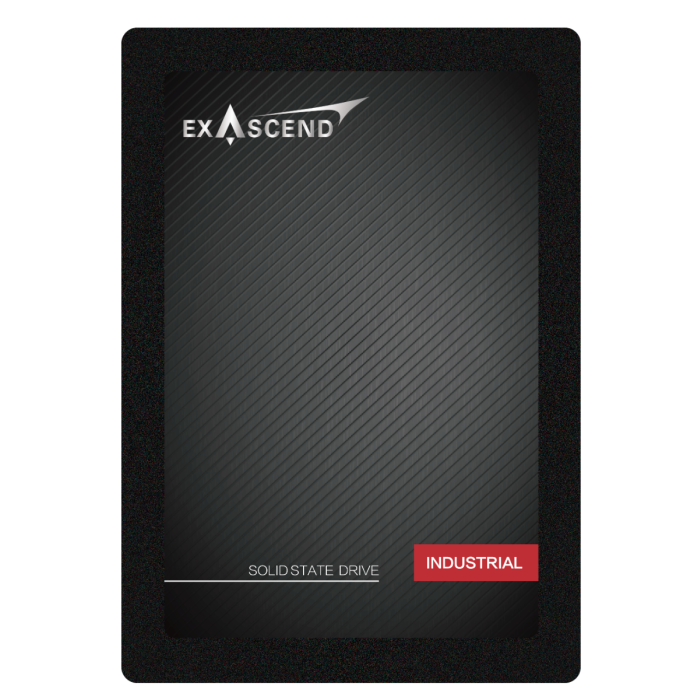

SV4 2.5" Industrial SSD with SATA-III Interface up to 4TB

A$0.00
In stock
SKU
EXSV4A*****B

SATA-III, 6.0Gb/s 2.5" SSD Drives 480GB to 3.84TB

Key Features:

  • State-of-the-art 112-layer NAND flash technology
  • High capacities up to 3.84TB in 2.5-inch form factor
  • Rugged design for industrial environments, withstanding temperatures from -40°C to 85°C
  • Extended drive lifespan through Exascend’s advanced flash management
  • Extensive customization options, including optional power loss protection (PLP)
  • TCG Opal 2.0 compliant with AES-256 encryption support; hardware secure erase
  • Enhanced power efficiency ensuring optimal performance

The SV4 series features 112-layer 3D TLC NAND technology designed for industrial applications. Available in form factors including M.2 2280 and 2.5-inch, and storage capacities ranging from 480GB to 3.84TB, the SV4 series is engineered to meet the rigorous demands of industrial environments.

Powered by Exascend's cutting-edge technologies, our SSDs consume less than 4W of power while delivering maximum performance, ensuring energy conservation without compromising on speed.



More Information
brand Exascend
Specifications

Edition

SV4 Series

Interface

SATA-III, 6.0Gbps

Flash type

112-layer 3D TLC

Form factor

2.5 inch (7mm)

M.2 (2280)

Capacity

480GB to 3.84TB

480GB to 1.92TB

Input voltage

5V ±10%

3.3V ±5%

Power consumption

Active <4W (avg.); Idle <0.5W

Sequential read/write up to

550/530 MB/s

4K random read/write up to

96,000/12,000 IOPS

96,000/10,000 IOPS

Operational temperature

-40°C to 85°C

Storage temperature

-50°C to 95°C

Humidity (non-condensing)

5–95% (Operating)

Vibration

10 G (peak, 10–2000 Hz)

Shock

Operating: 50 G (11 ms duration, half sine wave)

Non-operating: 1500 G (0.5 ms duration, half sine wave)

Features

Advanced LDPC error correction.

Firmware & hardware power loss protection.

TCG Opal 2.0, AES-256. (optional)

Advanced LDPC error correction.

Firmware power loss protection.

TCG Opal 2.0, AES-256. (optional)

TBW (JESD219 enterprise) up to

2,400 TB

1,200 TB

DWPD (JESD219 enterprise)

0.6 @ 3 years

MTBF

2,000,000 hours

Warranty

3 years

Description

The SV4 series features 112-layer 3D TLC NAND technology designed for industrial applications. Available in form factors including M.2 2280 and 2.5-inch, and storage capacities ranging from 480GB to 3.84TB, the SV4 series is engineered to meet the rigorous demands of industrial environments.

Powered by Exascend's cutting-edge technologies, our SSDs consume less than 4W of power while delivering maximum performance, ensuring energy conservation without compromising on speed.
