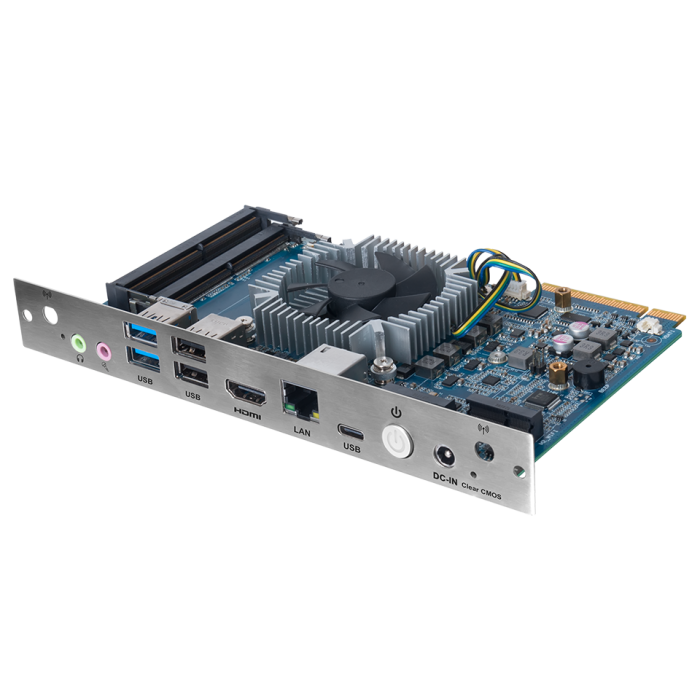

Shop SDM-L 611 Gen 11 Smart Display Module at Tekdis LLC

Details

Tiger Lake UP3, Intel's 11th generation mobile processors constructed using 10nm process technology, power the SDM-L. The platform combines a high-performance CPU with single-thread performance that is up to 23% faster and multi-thread performance that is up to 19% faster. As an option, it supports vPro functionality.

Key Features:

Intel Tiger Lake UP3 Celeron/Core processors
SDM I/O support 8K resolution, 1 x HDMI (4096 x 2304 @60 Hz)
Support Wi-Fi/BT module
Intel vPro technology Core i5-1145G7

More Information

brand

Giada Technology Inc.

Specifications

CPU	CPU	Intel^® Celeron^® 6305 processor Intel^® Core™ i3-1115G4 processor Intel^® Core™ i5-1135G7 processor Intel^® Core™ i5-1145G7 processor Intel^® Core™ i7-1165G7 processor
	Base Frequency	1.80GHz /3.00 GHz /2.40 GHz /2.60 GHz /2.80 GHz
	Turbo Frequency	NA /4.10 GHz /4.20 GHz /4.40 GHz /4.70 GHz
	Chipset	SoC
	Processing Units	2 Cores /2 Cores /4 Cores /4 Cores /4 Cores
	Configurable TDP-up	15 W /28 W /28 W/ 28 W /28W
Memory	Size	Up to 32 GB
Memory	Type	2 x SO-DIMM DDR4-3200 MHz
Storage	Socket 1	1 x M-Key M.2 (2242/2280) for SSD
Display	GPU	Intel^® UHD Graphics (Celeron 6305, Core i3) Intel^® IRIS^® Xe Graphics (Core i5, Core i7)
	Graphic Engine	DirectX 12.0, OpenGL 4.5, OpenCL 2.2, 8K60fps 12b 4:2:0 HEVC/VP9/SCC
	Display Interface	1 x HDMI (Max.4096 x 2304 @60 Hz)
Network	Network Controller	1 x i219LM Gigabit Ethernet
	Ethernet Interface	1 x RJ45
	Wi-Fi/BT	1 x E-Key M.2 (2230) for Wi-Fi/BT, Support Wi-Fi 5, Wi-Fi 6 (CNVi)
	Mobile Network	NA
I/O interface	USB	1 x USB Type-C3.2 Gen1, 2 x USB3.2 Gen2, 2 x USB2.0
	Serial Port	NA
	Audio	1 x MIC-IN, 1 x AUDIO-OUT
	Button	1 x Power on, 1 x CLR-CMOS
	Antenna	2 x Connector for Wi-Fi/BT
	SDM I/O PCIe X8 Edge Connector	HDMI, DP1.4, USB3.2 Gen2, UART, GSPI, I2C, PCIe, SYS_FAN
System	TPM	Optional: TPM2.0
	Watchdog Timer	Yes
	Auto Power On	Yes
	RTC	Set up independently every day, a week as a cycle
	Remo on	NA
	Power Requirement	DC-IN, 12 V/5 A SDM IO: 12 V
	Dimensions	175mm x 110mm (6.89” x 4.33” )
	Operating System	Windows 10 (64bit) /Windows 11 (64bit) /Linux Ubuntu (64bit)
	Operating Temperature	0°C ~60°C (32°F~113°F) @0.7m/s Air Flow
	Humidity	95% @ 60°C (non-condensing)

Description

Tiger Lake UP3, Intel's 11th generation mobile processors constructed using 10nm process technology, power the SDM-L. The platform combines a high-performance CPU with single-thread performance that is up to 23% faster and multi-thread performance that is up to 19% faster. As an option, it supports vPro functionality.

Key Features:

Intel Tiger Lake UP3 Celeron/Core processors
SDM I/O support 8K resolution, 1 x HDMI (4096 x 2304 @60 Hz)
Support Wi-Fi/BT module
Intel vPro technology Core i5-1145G7
