Details

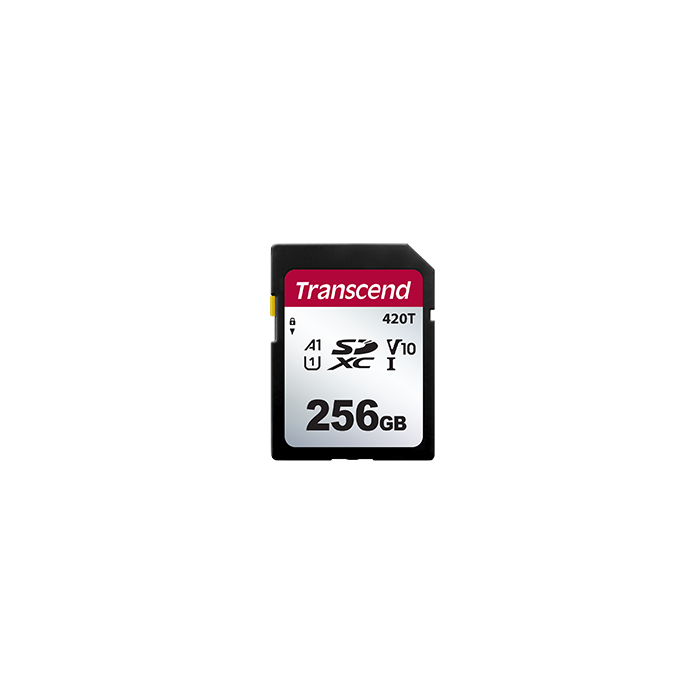

Transcend's SDXC/SDHC 420T memory cards combine the benefits of high performance and exceptional endurance at an affordable price, making them ideal for demanding industrial applications such as POS terminals and portable devices equipped with an SD memory card slot. They use top-quality 3D NAND Flash and are rated to endure 3K P/E cycles.

Key Features:

Firmware:

Built-in ECC (Error Correction Code) functionality
Early Move
Wear-Leveling

Hardware:

Compliant with RoHS 2.0 standards
Electrostatic protection (ESD IEC 61000-4-2)
Compliant with SD specification 6.1
Compliant with UHS-I
Endurance: 3K P/E cycles (Program/Erase cycles) guaranteed

More Information

brand

Transcend

Specifications

Appearance
Dimensions	24 mm x 32 mm x 2.1 mm (0.94" x 1.26" x 0.08")
Form Factor	SD flash card
Storage
Flash Type	3D NAND flash
Capacity	16 GB/ 32 GB/ 64 GB/ 128 GB/ 256 GB
Operating Environment
Operating Voltage	2.7V ~ 3.6V
Drop Test	1.5m free fall
Operating Temperature	Standard Temp. -25°C (-13°F) ~ 85°C (185°F)
Storage Temperature	-40°C (-40°F) ~ 85°C (185°F)
Humidity	0% ~ 95%
Shock	Acceleration: 490 m/s² (standard holding time: 11 ms, semi-sine wave, velocity change: 3.44 m/s)
Vibration (Operating)	20 G (peak-to-peak), 20 Hz ~ 2,000 Hz (frequency)
Power
Power Consumption (Max.)	2.88 watt(s)
Performance
Read Speed (Max.)	up to 95 MB/s
Write Speed (Max.)	up to 40 MB/s
Terabytes Written (TBW)	up to 640 TBW
Note	Speed may vary due to host hardware, software, usage, and storage capacity. Terabytes Written (TBW) expresses the endurance under the highest capacity.

Description

Transcend's SDXC/SDHC 420T memory cards combine the benefits of high performance and exceptional endurance at an affordable price, making them ideal for demanding industrial applications such as POS terminals and portable devices equipped with an SD memory card slot. They use top-quality 3D NAND Flash and are rated to endure 3K P/E cycles.

Key Features:

Firmware:

Built-in ECC (Error Correction Code) functionality
Early Move
Wear-Leveling

Hardware:

Compliant with RoHS 2.0 standards
Electrostatic protection (ESD IEC 61000-4-2)
Compliant with SD specification 6.1
Compliant with UHS-I
Endurance: 3K P/E cycles (Program/Erase cycles) guaranteed
