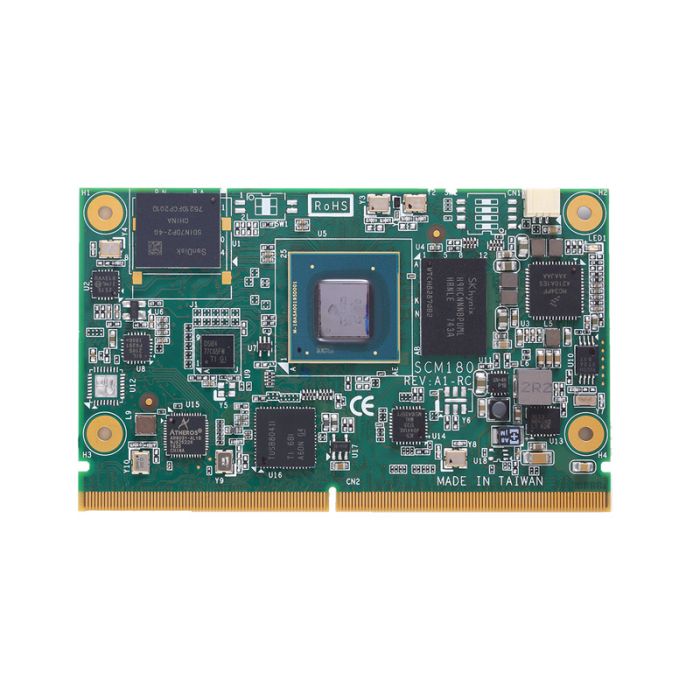

SCM180 Ultra Small SMARC v2.0 SOM i.MX 8M Multi-Core CPU

A$0.00

In stock

SKU

SCM180

SMARC v2.0 SoM with i.MX8M Quad/Dual 1.3 GHz (Industrial) SoC, 1GB/2GB Memory, 8GB eMMC, CAN, MIPI CSI/DSI, HDMI 2.0

SMARC v2.0 SoM with i.MX8M Quad/Dual 1.3 GHz (Industrial) SoC, 1GB/2GB Memory, 8GB eMMC, CAN, MIPI CSI/DSI, HDMI 2.0

brand

Axiomtek

Specifications

CPU	Freescale i.MX8M series SoC with Quad/Dual A53
Chipset	SoC integrated
System Memory	Onboard LPDDR4 1GB 3200Mbps, up to 4GB
OS	Linux Kernel, Android
COM	2 x COM with TX/RX/RTS/CTS 2 x RX/TX (1 x Debug Console)
USB	1 x USB 2.0 1 x OTG client 2 x USB 3.0
Ethernet	1 x 10/100/1000 Mbps
Display	1 x HDMI 2.0; or DP 1.3
CAN	2 x CAN 2.0B
I2C	3 x I2C interface
SPI	1 x QSPI with 2 Chip Select 1 x SPI with 2 Chip Select
GPIO	Up to 12
Audio	1 x I2S
Storage	Onboard eMMC 8GB, up to 64GB; or SD Card
Expansion	N/A
Others	N/A
Battery	Battery on the Baseboard is required
Power Input	N/A
Operating Temperature	0°C to +85°C (32°F to +185°F) (Commercial) -40°C to +85°C (-40°F to +185°F) (Industrial)
Relative Humidity	N/A
Dimensions	82 x 50 mm
Board Thickness	1.2 mm ± 0.1 mm
Certifications	CE

Description

SMARC v2.0 SoM with i.MX8M Quad/Dual 1.3 GHz (Industrial) SoC, 1GB/2GB Memory, 8GB eMMC, CAN, MIPI CSI/DSI, HDMI 2.0
