CPU: Intel® mobile Core™ i5-4400E (2.7 GHz, 37W) Chipset: Intel® QM87 System Memory: 2 x 204-pin DDR3 SO-DIMM slot (system max. 16 GB) Pre-installed 4 GB DDR3 SO-DIMM
I/O Interface
I/O Ports
1 x PS2 (KB/MS) 2 x USB3.0 2 x USB2.0 2 x RJ-45 with teaming support 1 x PCIe GbE by Intel® I217LM 1 x PCIe GbE by Intel® I210-AT (2 with 2 kV isolation) 1 x DB-9 (non-isolated) 4 x RS-232/422/485 (with 2.5 kV isolation) 2 x CAN-bus (with 2.5 kV isolation) 1 x VGA 1 x DVI-D 1 x HDMI 1 x Line-out, 1 x Line-in, 1 x Mic-in 2 x Antenna SMA hole (reserved)
Expansion Slots
Expansion Slots
2 x Full size
System
Cooling method / System Fan
Fanless
Drive Bays
2 x 2.5” SATA 6Gb/s SSD bay with RAID 0/1 function
Indicator&Buttons
Indicators
Power (power on: green, power off: orange), storage (red, blinking), IPMI (blue)
Color
Color
Black
Dimensions
Dimensions
290 x 75 x 225
Weight
Weight
4.08 kg / 6.03 kg
Environment
Operating Temperature
-15°C ~ 55°C with air flow
Humidity
5% ~ 95%, non-condensing
Description

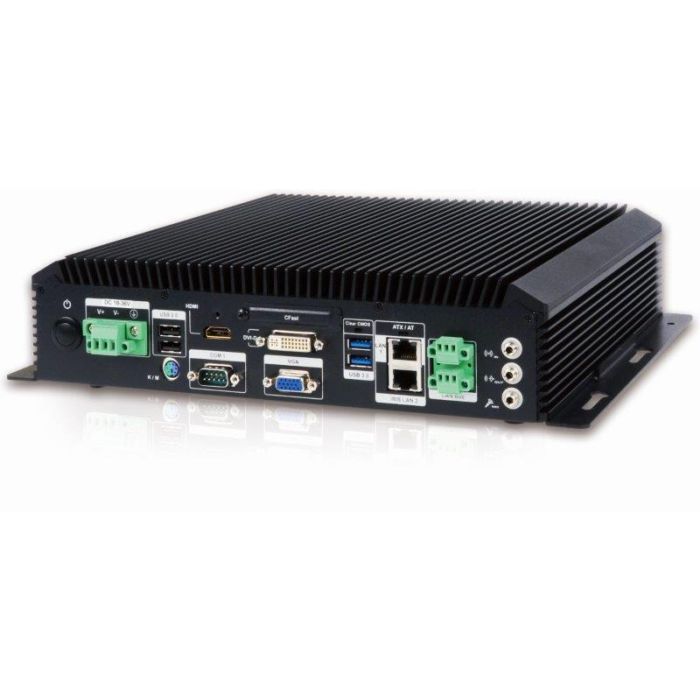

Fanless marine computer with Intel® Mobile Core™ i5-4400E 2.7GHz Processor
