S24M, 24" PCAP touch with AC/DC redundant power

A$0.00

In stock

SKU

S24M

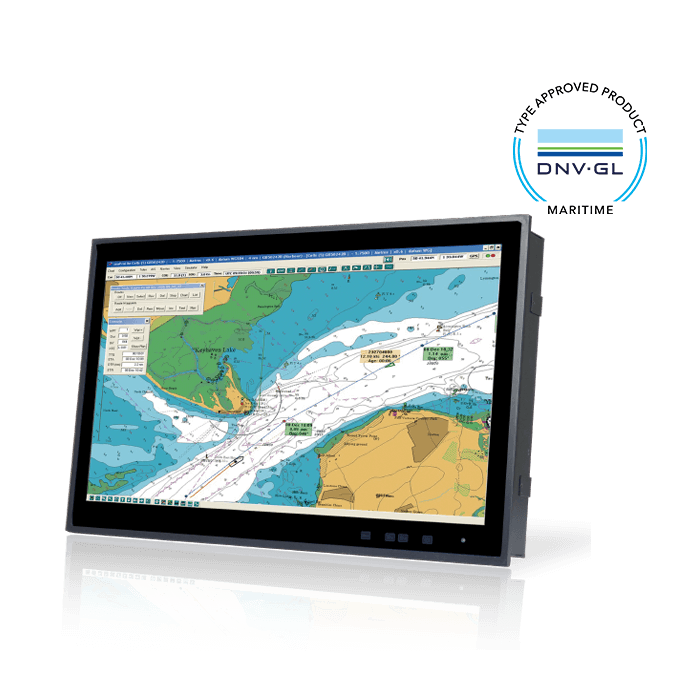

24" FHD 300cd/m2 Marine Display with AC and DC redundant power, PCAP touch screen, R10

24" FHD 300cd/m2 Marine Display with AC and DC redundant power, PCAP touch screen, R10

Brand

IEI Integration Corp.

Specifications

Spec Item	Description
Display
Backlight MTBF(hrs)	50000
Brightness(cd/m2)	300
Contrast Ratio	5000 : 1
LCD Size	24"
Max Resolution	1920(W) x 1080(H)
Environment
Humidity	10% to 95% (non-condensing)
Operating Temperature	-15°C~55°C
Storage Temperature	-20°C~60°C
I/O Interface
I/O Ports and Switches	DVI-D Signal Input: 2 x DVI (24-pin, female) VGA Signal Output: 1 x D-sub (15-pin, female) - Clone of VGA IN* Composite Video Input: 1 x BNC connector (female)
LCD
LCD Color	16.7M
Pixel Pitch (mm)	0.3075mm x 0.3075mm
Viewing Angle (H-V)	178° / 178°
Physical Characteristics
Cutout Dimensions	576 mm x 358 mm
Dimensions (LxWxH) (mm)	592 mm x 374 mm x 113 mm
Touch
Touch Controller	6H
Touch Screen	EXC7200 (2-point)
Weight
Weight	11.48 Kg
I/O Interface
I/O Interface	1 x LAN(RJ-45)
	2 x Power In(100)
	1 x RS-422/485
	1 x Touchscreen(UUSB Type A connector (female))
	2 x BNC(Input/Output)
	1 x Buzzer
	3 x VGA(Input x 2/Output x 1)
	2 x DVI-D

Description

24" FHD 300cd/m2 Marine Display with AC and DC redundant power, PCAP touch screen, R10
