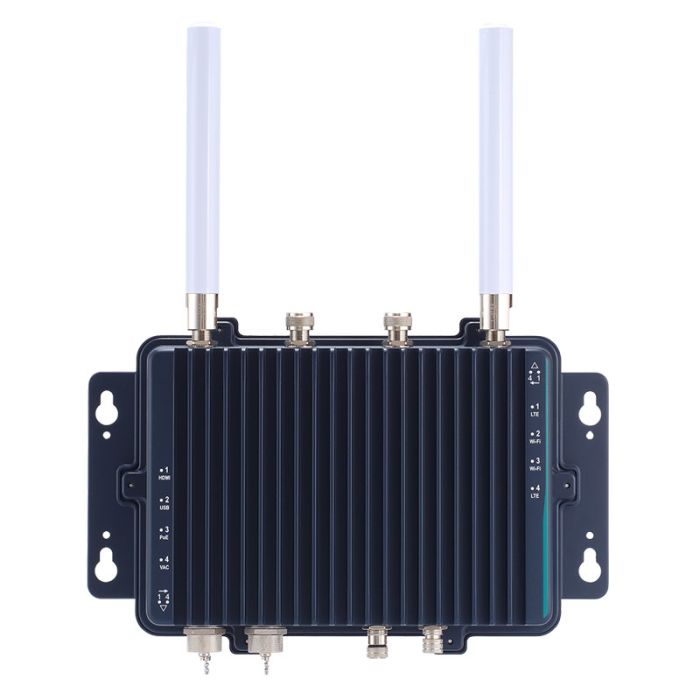

The Axiomtek AIE800-904-FL is a rugged AI system powered by an NVIDIA Xavier NX processor. This product incorporates a full IP67-rated extruded aluminium and heavy-duty steel case for dust intrusion protection and water resistance.
Features:
IP67-rated design, specifically for outdoor environments
NVIDIA Jetson Xavier NX with Volta GPU architecture with 384 NVIDIA CUDA cores
High AI computing performance for GPU accelerated processing
-30°C to +50°C operating temperature range
100 to 240 VAC wide range power input with 10kV surge protection
1 x Full-size PCI Express Mini Card slot (USB + PCI Express signal)
1 x SIM slot
Others
1 x M12 S-Code 3-pos AC in power input
4 x N-jack antenna opening with waterproof design
Built-in Xavier NX
Power Supply
100 to 240 VAC with 10kV SPD
Watchdog Timer
Built-in Xavier NX
Construction
Aluminum die-casting and heavy-duty steel, IP67
Operating Temperature
-30°C to +50°C (-22°F to +122°F)
Relative Humidity
10% - 95% , non-condensing
Vibration
3 Grms with SSD (5 to 500Hz, X, Y, Z directions)
Dimensions (W x D x H)
366.8 x 235 x 83.8 mm (14.44\" x 9.25\" x 3.3”)
Weight (net/gross)
4.13 kg (9.11 lb)/5.5 kg (12.13 lb)
Certifications
CE, FCC Class A
EOS Support
Linux Ubuntu 18.04
Description
The Axiomtek AIE800-904-FL is a rugged AI system powered by an NVIDIA Xavier NX processor. This product incorporates a full IP67-rated extruded aluminium and heavy-duty steel case for dust intrusion protection and water resistance.
Features:
IP67-rated design, specifically for outdoor environments
NVIDIA Jetson Xavier NX with Volta GPU architecture with 384 NVIDIA CUDA cores
High AI computing performance for GPU accelerated processing
-30°C to +50°C operating temperature range
100 to 240 VAC wide range power input with 10kV surge protection
