Shop ROBOX500 ROS 2 AMR Controller

Details

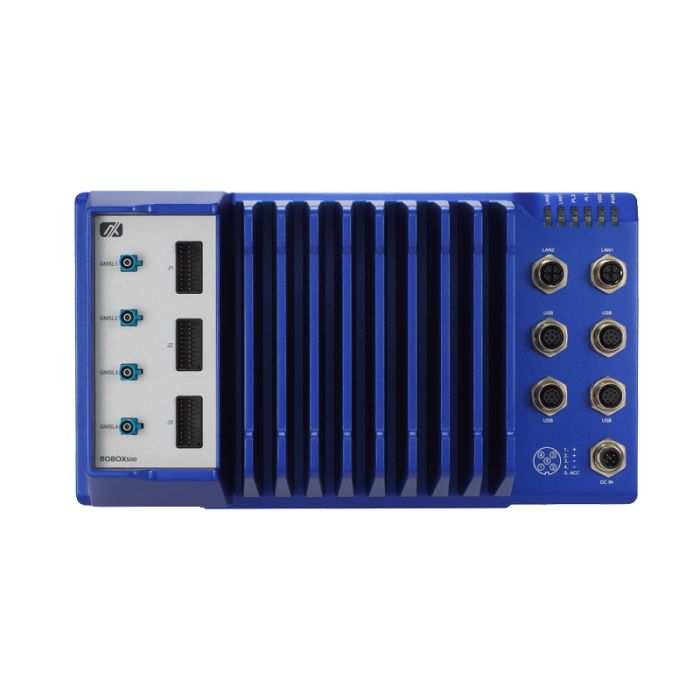

Introducing the ROBOX500, a ROS 2 AMR controller designed for precise navigation and control in demanding heavy-duty industrial applications. Powered by a high-performance 12th Gen Intel® Core™ i7 processor (Alder Lake P), it features a 4-channel GMSL interface, ensuring low latency and high-resolution camera support for long-range visibility. Optimized for a wide array of sensors, the ROBOX500 offers extensive I/O connectivity with an M12 lockable design, ensuring secure and reliable connections. Built for tough environments, it delivers reliable performance in temperatures from -20°C to +70°C and withstands vibrations up to 3Grms. With exceptional computing power, adaptability, and durability, the ROBOX500 is the ideal controller for heavy-duty autonomous vehicles such as driverless forklifts and autonomous road rollers.

More Information

brand

Axiomtek

Specifications

CPU	13th/12th gen Intel® Core™ i7 processor, 28W/15W TDP
System Memory	2 x DDR4 SO-DIMM slot, up to 64GB
Ethernet	2 x M12 X-code GbE Ethernet 1 x RJ-45 GbE Ethernet
USB	4 x M12 A-code USB 3.2 Gen1x1 & USB 2.0 1 x USB 2.0 (Type A) 1 x USB 3.2 Gen1x1 (Type A)
COM	4 x 4-Wire RS-232/422/485
DIO	1 x DIO with isolation, 16-CH DI, 8-CH DO, 2-CH SSR
GMSL	4 x GMSL camera interface (FAKRA universal type)
CAN	2 x CAN 2.0 A/B with isolation
Display	1 x HDMI (4K x 2K @30Hz)
Storage	1 x M.2 Key M 2280 for NVMe
Audio	1 x Mic-in 1 x Line-out
Expansion Interface	1 x M.2 Key E 2230 slot for Wi-Fi/Bluetooth module 1 x M.2 Key B 3052 slot for 5G module 1 x M.2 Key M 2242 slot for AI module 1 x SIM slot
Others	4 x Antenna opening
Power Supply	9 to 60VDC, typical 24V or 48V battery
Construction	Aluminum extrusion and heavy-duty steel, IP40
Operating Temperature	-20°C to +70°C (-4°F to +158°F)
Humidity	10% to 95%, non-condensing
Vibration Endurance	5 Grms (5 to 500Hz, X, Y, Z directions)
Dimensions	289 x 106.5 x 161.7 mm (11.38" x 4.19" x 6.37")
Weight (net/gross)	3.87 kg (8.53lb)
Shock	IEC 60721-3-5 5M3 shock operating
OS Support	Linux Ubuntu 20.04 LTS
Software Support	Axiomtek AMR Builder Package Intel® OpenVINOTM ROS/ROS 2
Certifications	CE, FCC Class A, UKCA

Description

Introducing the ROBOX500, a ROS 2 AMR controller designed for precise navigation and control in demanding heavy-duty industrial applications. Powered by a high-performance 12th Gen Intel® Core™ i7 processor (Alder Lake P), it features a 4-channel GMSL interface, ensuring low latency and high-resolution camera support for long-range visibility. Optimized for a wide array of sensors, the ROBOX500 offers extensive I/O connectivity with an M12 lockable design, ensuring secure and reliable connections. Built for tough environments, it delivers reliable performance in temperatures from -20°C to +70°C and withstands vibrations up to 3Grms. With exceptional computing power, adaptability, and durability, the ROBOX500 is the ideal controller for heavy-duty autonomous vehicles such as driverless forklifts and autonomous road rollers.

Reviews

Write Your Own Review

Downloads

Datasheet
