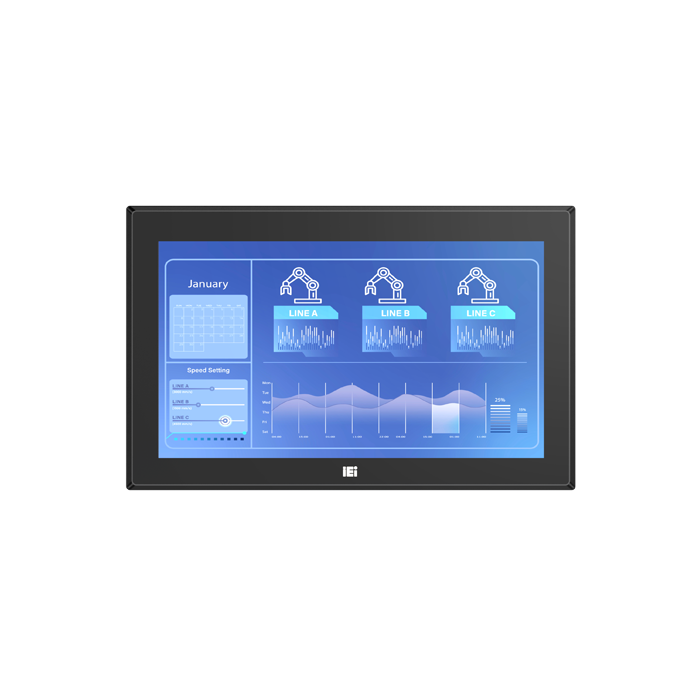

The PPC2-CW215A-ADLP from IEI is a 21.5" industrial-grade panel PC, powered by Intel® Alder Lake processors, designed for demanding applications. It features a full HD multi-touch display, fanless design for reliability, and multiple I/O options for flexible connectivity. Its robust construction and high performance make it ideal for manufacturing, automation, and other industrial environments.
2 x M.2 M Key 2280 (PCle Gen 4 x4) 1 x M.2 B KEY (PCIe x1 or SATA) for IPMI 1 x M.2 2230 E Key Slot support Vpro (PCIe 3.0 x1 + USB2.0 x1 + CNVI)
Power
Power Supply
12V DC
Environment
Operating Temperature
-20°C ~ 60°C
Safety & EMC
CE, FCC (Class A)
Humidity
10% ~ 90% (non-condensing)
Storage Temperature
-20°C ~ 70°C
IP Level
IP 65 compliant front panel
Physical Characteristics
Colour
Black
Mounting
Panel, Wall, Stand and Arm VESA 75 /100mm
LCD
Size
21.5”
Resolution
1920 x 1080 (16:9)
Brightness (cd/m2)
350 cd/m²
Contrast Ratio
1000: 1
LCD Color
16.2M
Viewing Angle (H-V)
178°/178°
Backlight MTBF
50000 hours
Touch
Touch Screen
PCAP with USB interface (anti-UV/AR coating)
Touch Controller
EXC81W32
I/O Interface
I/O Interface
1 x RS-232 (by DB9)
1 x RS-232/422/485 (by DB9)
4 x USB 3.2 Gen1x1 (Type-A (5Gb/s))
1 x HDMI™ (2.0 (up to 3840 x 2160 @60Hz))
2 x LAN (Intel® I226 2.5GbE controller)
1 x DC Input Jack (12V)
1 x Reset Button
1 x AT/ATX switch
1 x Clear CMOS Button
Ordering Information
PPC2-CW215A-ADLP-i7/8G-R11
21.5" 350cd/m² 1920x1080 Fanless Panel PC with 12th Generation Intel® Core™ i7-1260P on-board Processor,TDP 28W,1 x 8GB DDR4, PCAP touch,12V DC,Ver.A,R11
PPC2-CW215A-ADLP-i5/8G-R11
21.5" 350cd/m² 1920x1080 Fanless Panel PC with 12th Generation Intel® Core™ i5-1240P on-board Processor,TDP 28W,1 x 8GB DDR4, PCAP touch,12V DC,Ver.A,R11
PPC2-CW215A-ADLP-i3/8G-R11
21.5" 350cd/m² 1920x1080 Fanless Panel PC with 12th Generation Intel® Core™ i3-1220P on-board Processor,TDP 28W,1 x 8GB DDR4, PCAP touch,12V DC,Ver.A,R11
PPC2-CW215A-ADLP-Ri7E/8G-R11
21.5" 350cd/m² 1920x1080 Fanless Panel PC with 13th Generation Intel® Core™ i7-1370PE on-board Processor,TDP 28W, 1 x 8GB DDR4 RAM, PCAP touch,12V DC,Ver.A,R11
PPC2-CW215A-ADLP-Ri5E/8G-R11
21.5" 350cd/m² 1920x1080 Fanless Panel PC with 13th Generation Intel® Core™ i5-1340PE on-board Processor,TDP 28W,1 x 8GB DDR4 RAM, PCAP touch,12V DC,Ver.A,R11
PPC2-CW215A-ADLP-Ri3E/8G-R11
21.5" 350cd/m² 1920x1080 Fanless Panel PC with 13th Generation Intel® Core™ i3-1320PE on-board Processor,TDP 28W, 1 x 8GB DDR4 RAM, PCAP touch,12V DC,Ver.A,R11
Package Contents
Package Contents
1 x PPC2-CW215A-ADLP
1 x Power Cord
1 x Power Adapter
1 x Package
1 x QIG
Description
The PPC2-CW215A-ADLP from IEI is a 21.5" industrial-grade panel PC, powered by Intel® Alder Lake processors, designed for demanding applications. It features a full HD multi-touch display, fanless design for reliability, and multiple I/O options for flexible connectivity. Its robust construction and high performance make it ideal for manufacturing, automation, and other industrial environments.
