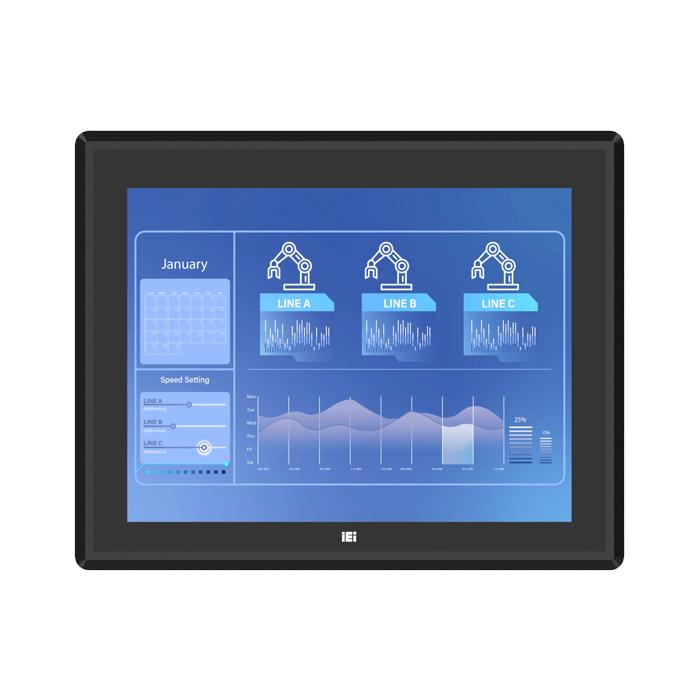

The PPC2-C-EHL series heavy industrial panel PC is built to withstand harsh work environments of any size. It has no fans, a wide operating temperature range of -10°C to 60°C, and vibration-resistant features such as 8GB on-board memory and NVMe storage. The Intel® Celeron® J6412 CPU was chosen as the panel PC's heart to deliver excellent performance while consuming very little power. The panel PC's equipped 10-point P-CAP touchscreen with anti-glare/anti-UV coating and scratch resistance is IP65-rated and supports gloved/wet hand operation, making it an ideal solution for Industrial Internet of Things (IIoT) applications.
Intel® Celeron® Processor J6412 1.5M Cache, up to 2.60 GHz / TDP 10W
On-board Memory
on-board dual-channel LPDDR4x 8GB
Storage
1 x M.2 2280 M-key (PCIe Gen3 x2) 1 x 2.5” HDD/SSD drive bay
I/O Interface
Ethernet
2 x 2.5GbE LAN via Intel® I225V
Expansion
1 x M.2 2242/2280 B key (PCIe Gen3 x1 + USB 3.0) 1 x M.2 B key 2242/2280 (PCIe Gen3 x2 + USB 2.0)
Environment
Operating Temperature
-10ºC ~ 60ºC
Safety & EMC
CE, FCC Class A, UKCA
Humidity
10% ~ 95%, non-condensing
Storage Temperature
-20ºC ~ 60ºC
Physical Characteristics
Color
Black
Mounting
VESA 75/100, Panel, Wall, Rack, Stand and Arm
Dimensions (LxWxH) (mm)
378.5 x 303 x 53.2
Net Weight
3.94 Kg
LCD
Size
15”(4:3)
Resolution
1024 (W) x 768 (H)
Brightness (cd/m2)
450 cd/m²
Contrast Ratio
800:1
LCD Color
16.2M
Pixel Pitch (mm)
0.297 x 0.297
Viewing Angle (H-V)
160°/150°
Backlight MTBF
70,000 hours
Touch
Touch Screen
Multi-point projected capacitive type (anti-UV / anti-glare coating, support gloves) Surface hardness: 7H
Touch Controller
EETI 80 series
Other Features
TPM
Intel® Platform Trust Technology
I/O Interface
I/O Interface
1 x RS-232/422/485 (by DB9)
4 x USB 2.0
1 x HDMI (up to 3840*2160 @30Hz)
2 x LAN - LAN1: Intel® I225V 2.5GbE controller LAN2: Intel® I225V 2.5GbE controller
1 x Reset Button
1 x Power Switch
1 x AT/ATX switch
1 x Clear CMOS Button
1 x RS-232 (by DB9)
2 x Power In - 1 x 12V-24V power jack 1 x Power terminal block (2-pin)
2 x USB 3.2 Gen2x1 (10Gb/s (Type A))
OS Support
OS Support
Windows 10 IOT Linux
Description
The PPC2-C-EHL series heavy industrial panel PC is built to withstand harsh work environments of any size. It has no fans, a wide operating temperature range of -10°C to 60°C, and vibration-resistant features such as 8GB on-board memory and NVMe storage. The Intel® Celeron® J6412 CPU was chosen as the panel PC's heart to deliver excellent performance while consuming very little power. The panel PC's equipped 10-point P-CAP touchscreen with anti-glare/anti-UV coating and scratch resistance is IP65-rated and supports gloved/wet hand operation, making it an ideal solution for Industrial Internet of Things (IIoT) applications.
