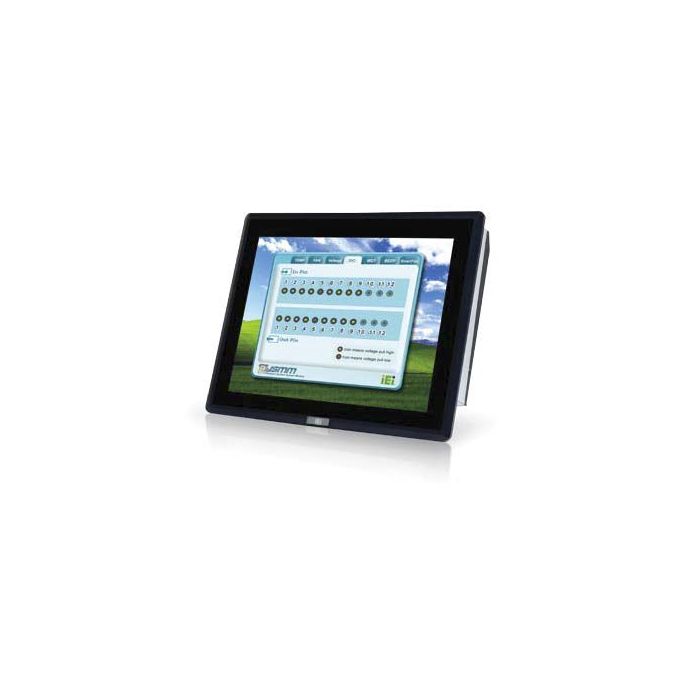

PPC-F22A-H81 21.5" i3/i5/Pentium Panel PC

A$0.00

In stock

SKU

PPC-F22A-H81

21.5" 250 cd/m2 FHD Panel PC with Intel H81 chipset, Core i3 Dual Core i3-4330 Processor, Core i5 Quad Core i5-4570S Processor or Intel® Pentium® Processor G3420

Details

21.5" 250 cd/m2 FHD Panel PC with Intel H81 chipset, Core i3 Dual Core i3-4330 Processor, Core i5 Quad Core i5-4570S Processor or Intel® Pentium® Processor G3420

● Support IEI iRIS-2400 IEI remote intelligent solution

● Scalable Intel® H81 chipset supports LGA1150 Intel® 4th generation Core™ i7/i5/i3, Pentium® or Celeron® processor with up to 65W TDP

● Robust IP65 aluminum front bezel

● Aesthetic ultra-thin bezel for seamless panel mount installation

● Projected capacitive multi-touch

● Dual full-size PCIe Mini card expansion

● AC/DC power input options (DC model by build to order manufacturing)

More Information

Brand

IEI Integration Corp.

Specifications

Spec Item	Description
Display
Backlight MTBF(hrs)	30000
Brightness(cd/m2)	250
Contrast Ratio	1000:1
LCD Size	21.5”(16:9)
Max Resolution	1920 (W) x 1080 (H)
Environment
Humidity	10% to 95% (non-condensing)
IP Level	IP 65 compliant front panel
Operating Temperature	-10°C~50°C (14°F~122°F)
Storage Temperature	-20°C~60°C (-4°F~140°F)
I/O Interface
I/O Ports and Switches	2 x RJ-45 LAN Port 2 x USB 3.0 4 x USB 2.0 1 x HDMI output 4 x RS-232 1 x RS-422/485 1 x VGA output 1 x AC/DC power plug (DC model is by build to order manufacturing) 1 x AT/ATX switch 1 x Clear CMOS 1 x Reset button 1 x Power switch
LCD
LCD Color	16.7M
Pixel Pitch (mm)	0.25 x 0.25
Viewing Angle (H-V)	170° / 160°
Physical Characteristics
Cutout Dimensions	341 x 536
Dimensions (LxWxH) (mm)	350.4 x 550.4 x 71.7
Power
Power Supply	AC input ATX power supply 220W power supply Input: 90VAC-264VAC, 50/60Hz Output (max.): 3.3V@10A, 5V@14A, 12V@14A, -12V@0.3A
Touch
Touch Screen	2-point projected capacitive touch window (EETI EXC7200), 6H
Weight
Weight	10.1/14.4

Description

21.5" 250 cd/m2 FHD Panel PC with Intel H81 chipset, Core i3 Dual Core i3-4330 Processor, Core i5 Quad Core i5-4570S Processor or Intel® Pentium® Processor G3420

● Support IEI iRIS-2400 IEI remote intelligent solution

● Scalable Intel® H81 chipset supports LGA1150 Intel® 4th generation Core™ i7/i5/i3, Pentium® or Celeron® processor with up to 65W TDP

● Robust IP65 aluminum front bezel

● Aesthetic ultra-thin bezel for seamless panel mount installation

● Projected capacitive multi-touch

● Dual full-size PCIe Mini card expansion

● AC/DC power input options (DC model by build to order manufacturing)
