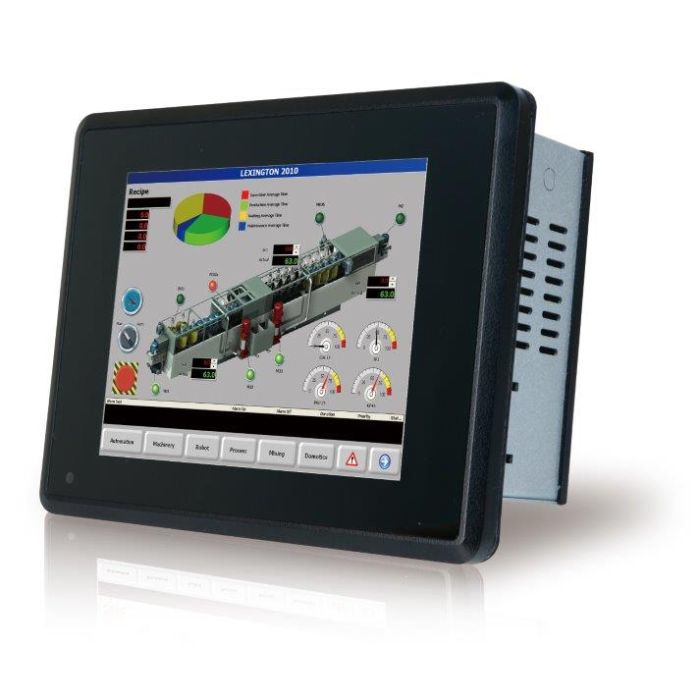

PPC-F08B-BT 8" Fanless J1900 Panel PC

A$0.00

In stock

SKU

PPC-F08B-BT

8 inch 500 cd/m2 SVGA Panel PC with Intel® Celeron® Processor J1900

8 inch 500 cd/m2 SVGA Panel PC with Intel® Celeron® Processor J1900

● 5.7”, 8” and 10.4” fanless industrial panel PC

● 2.0 GHz Intel® Celeron® J1900 quad-core processor or 1.58 GHz Intel® Celeron® N2807 dual-core processor

● Low power consumption DDR3L memory supported

● IP 65 compliant front panel

● 9 V~30 V wide DC input

● mSATA SSD suppoted

● Dual GbE for backup

● -10°C~50°C extended operating temperature

Brand

IEI Integration Corp.

Specifications

Spec Item	Description
Display
Backlight MTBF(hrs)	50000
Brightness(cd/m2)	500
Contrast Ratio	500:1
LCD Size	8”(4:3)
Max Resolution	800(W) x 600(H)
Environment
Humidity	10% to 95% (non-condensing)
IP Level	Front IP 65
Operating Temperature	-10°C~50°C (14°F~122°F)
Safety & EMC	CE & FCC Class A certified
Storage Temperature	-20°C~60°C (-4°F~140°F)
Expansion Slots
Expansion Slots	1 x Full-size PCIe Mini slot (with mSATA/PCIe/USB signal) 1 x Full-size/Half-size PCIe Mini slot (PCIe signal only)
I/O Interface
I/O Ports and Switches	1 x RJ-45 LAN port 1 x RS-232 COM port (DB-9 connector) (RI/5V/12V) 1 x RS-422/485 2 x USB 3.0 1 x 9 V~30 V DC lockable DC jack (2-pin) 1 x Audio port (line-out) 1 x Power switch
RAM	2 x 204-pin DDR3L SO-DIMM slots (max. 8GB)
LCD
LCD Color	16.2M
Pixel Pitch (mm)	0.2025 (H) x 0.0675 (V)
Viewing Angle (H-V)	140° / 120°
Physical Characteristics
Color	Black C
Construction	Aluminum front bezel
Cutout Dimensions	207 x 154
Dimensions (LxWxH) (mm)	182.2 x 222.2 x 44
Mounting	Stand, panel mount, rack mount, VESA 75x75
Power
Power adapter	9V~30VDC
System
CPU	Intel® Celeron® J1900 quad-core on-board SoC, 2GHz
SSD	mSATA
Touch
Touch Screen	5-wire resistive type flat touchscreen
Weight
Weight	1.17 kg
I/O Interface
I/O Interface	1 x AT/ATX Switch
	1 x Audio(line-out)
	2 x LAN(GbE)
	1 x Power In(9-30V Lockable power jack)
	1 x Power Switch
	1 x RS-232(RJ-45)
	1 x RS-422/485(DB-9)
	1 x Reset Button
	2 x USB3.0
