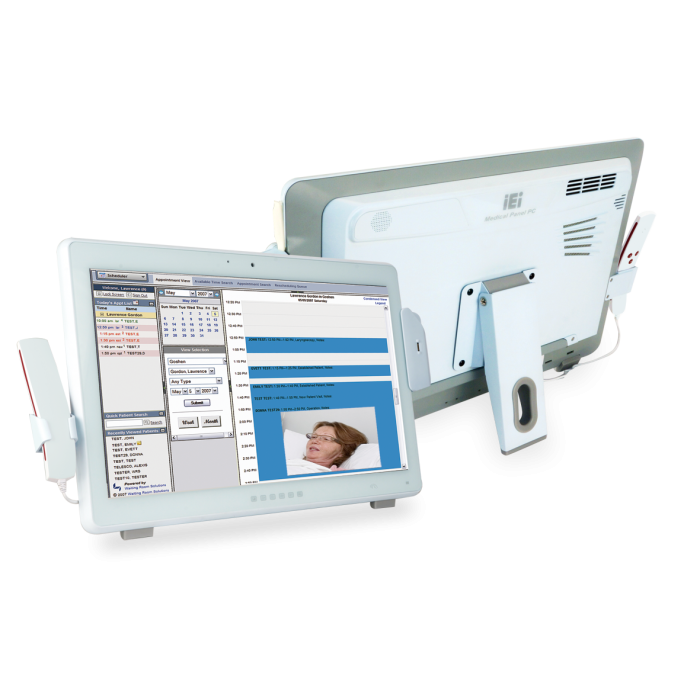

POC-W22A-H81 21.5" Medical Panel PC

A$0.00

In stock

SKU

POC-W22A-H81-R10

21.5” 250cd/m² FHD medical panel PC with Intel® H81 chipset, Intel® Pentium® G3320TE processor (dual core, 2.3 GHz, TDP 35W), two 2 GB DDR3 RAM, 802.11a/b/g/n/ac Wi-Fi module, projected capacitive touchscreen, 2M camera, microphone, support iRIS-2400

Details

· W21.5” 16:9 LED panel with FHD (1920 x 1080)

· 4th generation Intel® Core™ i5/i3/Pentium® CPU

· Projected capacitive touchscreen supports multi-touch

· IP65 compliant front bezel

· Anti-bacteria cover

· Optional 3-in-1 card reader: MSR, SCR and fingerprint

· Optional Mifare RFID module

· Optional internal 54W battery module

· Optional VoIP phone handset

· Optional handle module with barcode scanner and reading light

More Information

Brand

IEI Integration Corp.

Specifications

Spec Item	Description
Communication
Wi-Fi	802.11a/b/g/n
Dimensions
Dimensions	470 x 383 x 79
Environment
IP Level	IP 65 compliant front panel
Operating Temperature	0°C ~ 40°C
I/O Interface
Audio	2 x 3W AMP
I/O Ports	1 x RS-232/422/485 2 x GbE LAN by RJ-45 (1 for iRIS) 1 x Power button 1 x VGA output 1 x HDMI output 1 x 9V~28V DC Jack 2 x USB 3.0 4 x USB 2.0 (2 on bottom and 2
LCD
Backlight MTBF	30000
Brightness (cd/m2)	250
Contrast Ratio	1000:1
LCD Color	16.7M
Resolution	1920 (W) x 1080 (H)
Size	21.5"
Viewing Angle (H-V)	170°/160°
Physical Characteristics
Construction	Anti-bacteria plastic front frame
Mounting	Panel, Wall, Rack, Stand and Arm VESA 100mm x 100mm
Net Weight	7.3 kg
Power
Power adapter	Medical Grade. AC 90V~264VAC input to DC 12V output
Power Requirement	DC 12V input
System
Chipset	Intel® H81
CPU	Intel® desktop Core™ i7/i5/i3/Pentium®/Celeron® CPU with Intel® H81 chipset (Up to TDP 35W CPU)
Drive Bays	1 x 2.5” SATA HDD
Memory Max.	Two 204-pin 1600/1333MHz dual-channel DDR3 SDRAM, 4GB pre-installed (system max.16GB)
Touch
Touch Screen	Projected Capacitive Touch screen
LED Function
LED Function	One power on/off LED on front panel
OSD Function
OSD Function	Five buttons (LCD on/off, Light +/-, Audio +/-)
