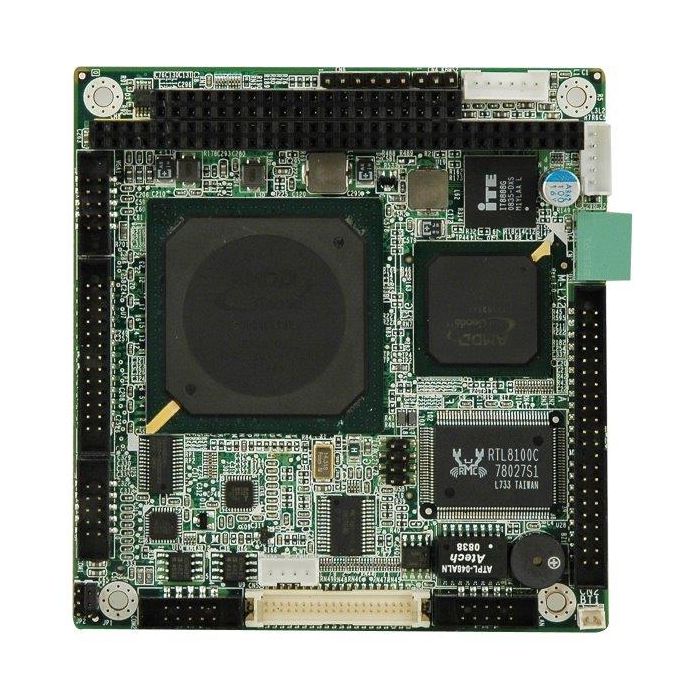

PM-LX2 AMD Geode LX 800 CPU on-board PC/104 Module
AMD Geode™ LX 800 CPU on-board PC/104 Module
AMD Geode™ LX 800 CPU on-board PC/104 Module
· 5V@1.13A(LX800-500Mhz, DDR 400/1G RAM)
More Information
| brand |
IEI Integration Corp. |
| Specifications |
| Spec Item |
Description |
| CPU Cooler |
| CPU Cooler |
Heatsink |
| Display |
| Display |
Dual display supported
1 x VGA
1 x 24-bit TTL |
| Environment |
| Humidity |
5% ~ 95%, non-condensing |
| Operating Temperature |
PM-LX2-800: 0°C ~ 60°C
PM-LX2-800W: -40°C ~ 70°C |
| Expansion Slots |
| Expansion Slots |
1 x PC-104 |
| FSB |
| FSB |
N/A |
| I/O Interface |
| Ethernet |
10/100Mbps LAN by Realtek RTL8100C |
| I/O Interface |
| I/O Interface |
1 x RS-422/485 |
| 2 x RS-232 |
| 1 x LPT |
| 2 x USB 2.0 |
| Power |
| Power consumption |
5V@1.13A (AMD Geode™ LX 800 with one 1 GB 400 MHz DDR memory) |
| Storage |
| Storage |
1 x Slim FDD
1 x IDE
1 x CF Type II |
| System |
| Chipset |
AMD CS5536 |
| CPU |
AMD Geode™ LX 800 (500 MHz) processor |
| CPU Socket |
On board |
| Memory Max. |
One 200-pin 400 MHz DDR SDRAM SO-DIMM supports up to 1 GB |
| Watchdog Timer |
| Watchdog Timer |
Software programmable and supports 1~255 sec. system reset |
|
| Description |
AMD Geode™ LX 800 CPU on-board PC/104 Module
