PCISA-BT Half-size PCISA Atom

A$0.00

In stock

SKU

PCISA-BT

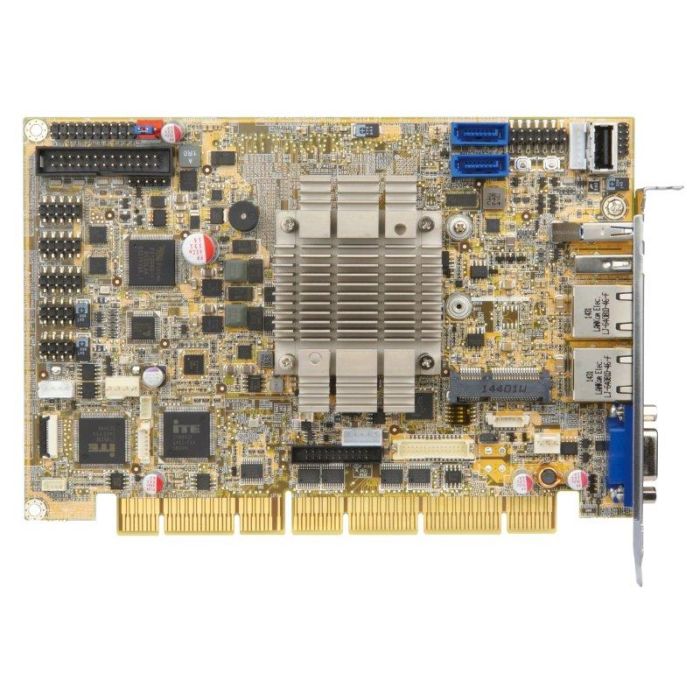

Half-size PCISA CPU Card supports Intel® 22nm Atom™ On-board SoC with VGA

Half-size PCISA CPU Card supports Intel® 22nm Atom™ On-board SoC with VGA

· Half-size PCISA CPU card supports Intel® 22nm Atom™ or Celeron® on-board SoC

· Supports dual LAN by Intel® I211-AT PCIe controllers

· Supports 1.35 V 1333/1066 MHz DDR3L SDRAM up to 8 GB

· Supports dual independent display with one analog CRT, iDP and one 24-bit dualchannel LVDS (optional)

· COM, USB 3.0, SATA 3Gb/s, PCIe Mini, mSATA and HD Audio support

· IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Brand

IEI Integration Corp.

Specifications

Spec Item	Description
Environment
Humidity	N/A
Operating Temperature	-20°C ~ 60°C
Expansion Slots
Expansion Slots	1 x microSD socket 1 x PCIe Mini slot PCIe-PCI bridge: ITE8892E LPC-ISA bridge: F85226FG PCI and ISA signal via golden finger
I/O Interface
Audio	Support 7.1 channel HD audio by IEI AC-KIT-892HD kit 1 x Analog audio (2x5 pin)
Digital I/O	1 x 8-bit digital I/O (2x5 pin)
Display	Dual independent display VGA (up to 2560x1600@60Hz) 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
Ethernet	LAN1: Intel® I211-AT PCIe controller LAN2: Intel® I211-AT PCIe controller
I/O Interface
I/O Interface	1 x I²C
	2 x Internal RS-232
	1 x Internal RS-422/485
	5 x Internal USB 2.0
	1 x KB/MS
	2 x LAN LED
	1 x LPT
	1 x SMBus
	1 x USB 2.0
	1 x USB 3.0
	1 x VGA
Power
Power consumption	5V@1.55A,12V@0.74A (Intel® Atom™ E3845 1.91GHz CPU with one 8GB 1333MHz memory)
Storage
Storage	1 x mSATA (SATA 3Gb/s, shares with SATA1) 2 x SATA 3Gb/s
System
CPU	Intel® Atom™ E3845 on-board SoC (1.91GHz, quad-core, 2MB cache, TDP=10W)
CPU Socket	On Board
Memory Max.	One 204-pin 1066/1333MHz single-channel DDR3L SDRAM unbuffered DIMM (system max. 8GB)
Watchdog Timer
Watchdog Timer	Software programmable supports 1~255 sec. system reset
