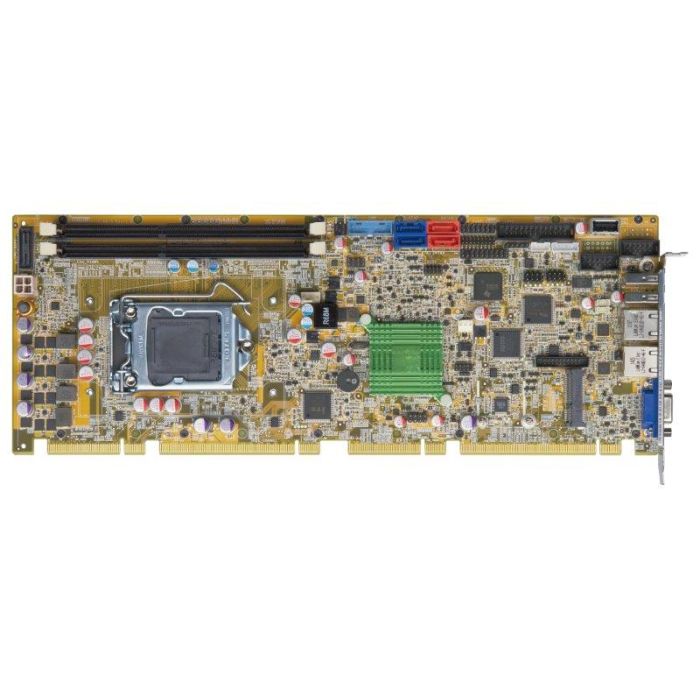

PCIE-H810 Full-size PICMG i7/i5/i3/Pentium/Celeron
Full-size PICMG 1.3 CPU card supports LGA 1150 Intel® Core™ i7/i5/i3, Pentium® and Celeron® with Intel® H81
Full-size PICMG 1.3 CPU card supports LGA 1150 Intel® Core™ i7/i5/i3, Pentium® and Celeron® with Intel® H81
· PICMG 1.3 full-size solution
· 4th generation LGA 1150 Intel® Core™ i7/i5/i3, Pentium® or Celeron® processor supported
· Two 1600/1333 MHz DDR3 SDRAM DIMMs support up to 16 GB
· Dual Realtek PCIe GbE supported
· TPM v1.2 hardware security function supported by TPM module
· IEI One Key Recovery solution allows you to create raipd OS backup and recovery
· Stiffener bars
· IEI jumper-less function
More Information
| Brand |
IEI Integration Corp. |
| Specifications |
| Spec Item |
Description |
| CPU Cooler |
| CPU Cooler |
CF-1150SB-R11
CF-1150SC-R20
CF-1150SE-R10
CF-1150SF-R10 |
| Environment |
| Humidity |
5% ~ 95%, non-condensing |
| Operating Temperature |
-20°C ~ 60°C |
| Expansion Slots |
| Expansion Slots |
1 x PCIe Mini slot (PCIe Mini & mSATA colay)
One PCIe x16 & four PCIe x1 signal via golden finger
PCI signal by ITE IT 8892 (PCIe to PCI bridge) |
| I/O Interface |
| Audio |
Support 7.1-channel HD Audio by IEI AC-KIT-892HD kit |
| Digital I/O |
1 x 8-bit digital I/O (2x5 pin) |
| Display |
Dual independent display
VGA (up to 1920x1200@60 Hz)
iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60 Hz) |
| Ethernet |
Dual Realtek RTL8111E PCIe GbE controllers supported |
| I/O Interface |
| I/O Interface |
2 x Internal RS-232 |
| 1 x Internal RS-422/485 |
| 4 x Internal USB 2.0 |
| 2 x Internal USB 3.0 |
| 1 x LPT |
| 2 x USB 2.0 |
| Power |
| Power consumption |
5V@3.41A, 12V@0.35A, Vcore_12V@7.52A, 3.3V@1.41A, 5VSB@0.12A
(Intel® Core™ i7-4770K 3.90 GHz CPU with 8 GB (two 4 GB) 1333 MHz DDR3 memory) |
| Storage |
| Storage |
2 x SATA 6Gb/s
2 x SATA 3Gb/s (H81 supports AHCI, no RAID) |
| System |
| Chipset |
Intel® H81 |
| CPU |
4th generation LGA 1150 Intel® Core™ i7/i5/i3, Pentium® or Celeron® processor supported |
| CPU Socket |
LGA1150 |
| Memory Max. |
Two 240-pin 1600/1333 MHz dual-channel unbuffered DDR3 & DDR3L SDRAM DIMMs
support up to 16 GB |
| Watchdog Timer |
| Watchdog Timer |
Software programmable supports 1~255 sec. system reset |
|
| Description |
Full-size PICMG 1.3 CPU card supports LGA 1150 Intel® Core™ i7/i5/i3, Pentium® and Celeron® with Intel® H81
· PICMG 1.3 full-size solution
· 4th generation LGA 1150 Intel® Core™ i7/i5/i3, Pentium® or Celeron® processor supported
· Two 1600/1333 MHz DDR3 SDRAM DIMMs support up to 16 GB
· Dual Realtek PCIe GbE supported
· TPM v1.2 hardware security function supported by TPM module
· IEI One Key Recovery solution allows you to create raipd OS backup and recovery
· Stiffener bars
· IEI jumper-less function
|
