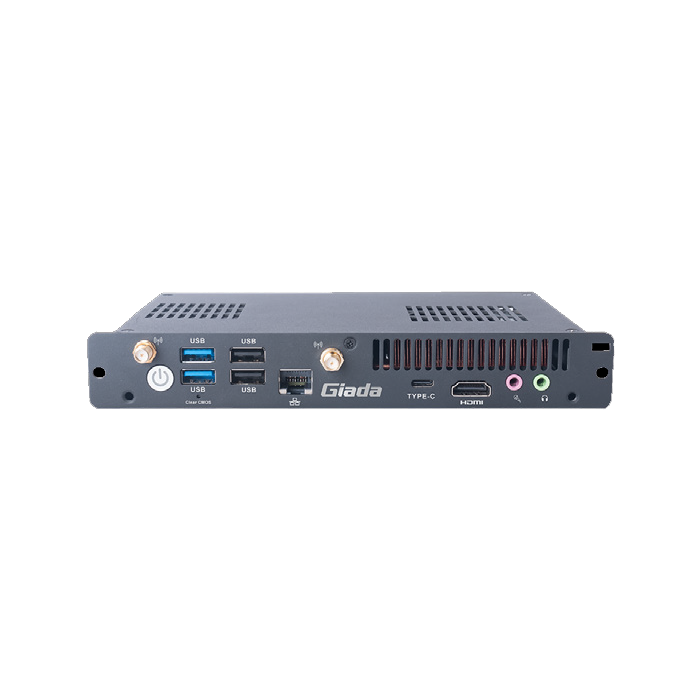

The PC612 is equipped with Intel 12th-Gen processors, the i3-1215U, i5-1235U, and i7-1255U, which offer 19% more performance than the 11th-gen "Rocket Lake". Alder Lake-P processors from Intel's 12th generation can be supported concurrently (optional). The Intel Open Pluggable Specification (OPS)-compliant device is simple to install, update, and maintain. It's the perfect option for contemporary interactive whiteboards and large-format displays. PC612 also has Intel vPro (optional) and TPM 2.0 features to deliver increased productivity, remote manageability and data security.
Key Features:
Intel Alder Lake-U/P 12th Gen. processors
JAE support HDMI/DP output 1 x HDMI (4096 x 2160 @60 Hz)
DirectX12.1, OpenGL4.6, OpenCL3.0, Intel® Quick Sync Video
Display Interface
1 x HDMI (Max.4096 x 2160 @60 Hz)
JAE Interface
DP/HDMI (Max. 7680 x 4320 @60Hz)
Network
Network Controller
1 x Realtek RTL 8111H Gigabit Ethernet
Ethernet Interface
1 x RJ45
Wi-Fi/BT
1 x E-Key M.2(2230) for Wi-Fi/BT, Support Wi-Fi 5, Wi-Fi 6 (CNVi)
Mobile Network
NA
I/O interface
USB
1 x USB Type-C3.2 Gen2 (10 Gbps),
2 x USB3.2 Gen2 (10 Gbps), 2 x USB2.0
Serial Port
NA
Audio
1 x MIC-IN, 1 x AUDIO-OUT
Button
1 x Power on, 1 x CLR-CMOS
Antenna
2 x Connector for Wi-Fi/BT
System
TPM
Optional: TPM2.0
Watchdog Timer
Yes
Auto Power On
Yes
RTC
Set up independently every day, a week as a cycle
Remo on
NA
Power Requirement
DC jack/80pin JAE
DC-IN, 12 V~19 V
Dimensions
200 mm x 119 mm x 30 mm (7.87” x 4.69” x 1.18”)
Construction
Metal, Black
Operating System
Windows 10 (64bit) /Windows 11 (64bit) /Linux Ubuntu (64bit)
Operating Temperature
0°C ~45°C (32°F~113°F) @0.7m/s Air Flow
Humidity
95% @ 45°C (non-condensing)
Certifications
CE, FCC Class B
