PBOX 520A

A$0.00

In stock

SKU

PBOX 520A

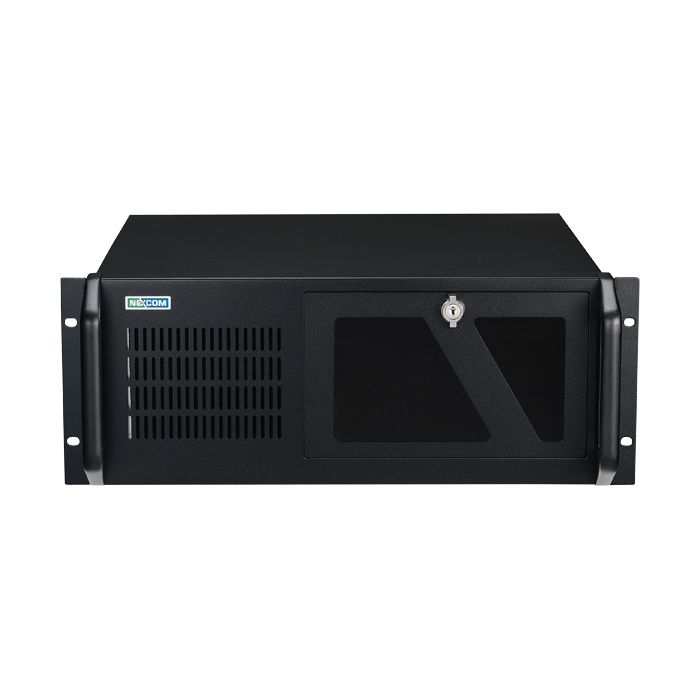

4U ATX Industrial Motherboard 19” Rackmount Chassis

4U ATX Industrial Motherboard 19” Rackmount Chassis

· 19” Rackmount Industrial Chassis for ATX/ Micro-ATX industrial Motherboards

· Shockproof disk bay design hold up three 5.25” and one x 3.5” device bays

· Adjustable height of Hold-down clamp design for add-in cards protected shock and vibration

· Power and HDD LEDs improve system availability

· Front accessible air-filter for dust and easy maintenance

· Key-Lockable front door to avoid unauthorized access

· Thermal design with dual cooling fans in front and extra dual cooling fans in the rear windows

· Standard ATX 400W, active PFC F3, full-range +100~240VAC input

Specifications

Construction	4U, 19” Rackmount, heavy-duty steel chassis with color black
Devices Bay	Front Accessible three 5.25” and one 3.5” device Bays
Cooling Fans	Two front-filtered cooling fans: 80x 80x 25mm, 41 CFM/ 33dBA/ 3200 RPM eachTwo rear-windows cooling fans : 60x 60x 25mm, 23.5 CFM/ 33.5dBA/ 4500 RPM each
Front Panel	LEDs indication: one Power LED and one HDD status LEDControl: one Power On/ Off Switch and one Power Reset Bottom
Environment	Temperature - Operating: 0°C ~ 40°C (32 ~ 104°F) - Non- Operating: -20°C ~ 60°C (-4 ~ 140°F)Humidity - Operating: 10 ~ 85% @ 40°C, non-condensing - Non- Operating: 10 ~ 95% @ 40°C, non-condensingVibration (5~500Hz) - Operating: 0.5 Grms (w/ HDD) - Non-Operating: 2 G (sin wave)Shock - Operating: 10 G (with 11ms duration, half sin wave) - Non- Operating: 30 G
Power Supply	Power Type: ATX mode, 80plusInput Voltage: +100V~240VAC, Full RangeMax. Output Power 400W, active PFC F3Power Supply Certification: CE, FCC, CCC and TUV
Dimension	482mm (W) x 450mm (D) x 177mm (H) (19” x 17.8”x 7”, 1U= 1.75” height)
