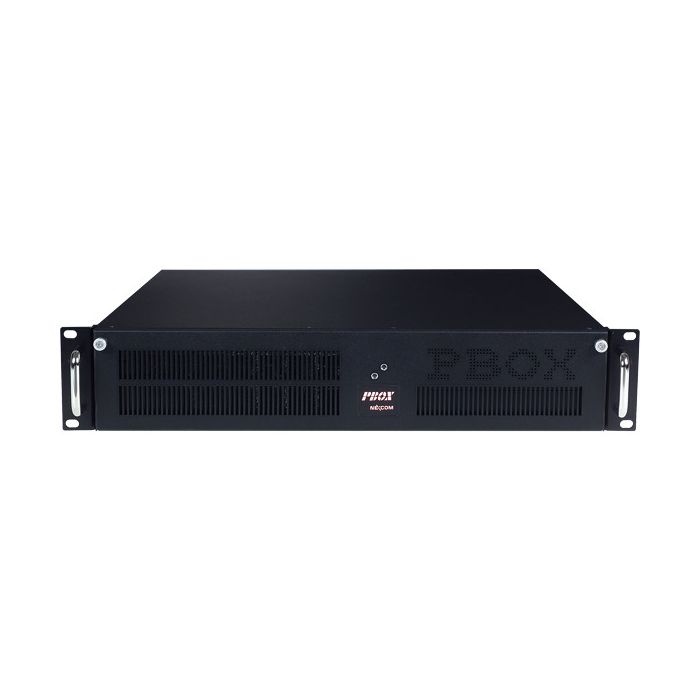

PBOX 240P

Be the first to review this product

A$0.00

In stock

SKU

PBOX 240P

2U 4 Slots Full-sized PICMG 1.3 Rackmount Chassis

Details

2U 4 Slots Full-sized PICMG 1.3 Rackmount Chassis

· Compact 2U Rackmount Chassis

· Supports 45nm/65nm Intel® Core™ 2 Quad & Core™ 2 Duo Processors with Greater Performance and Energy Efficiency

· Supports One Slim CD-ROM and Two 3.5 Disk Drives

· Front-accessible USB and PS/2 Ports

· Supports the following Butterfly Backplanes Designs: NBP 2U040: Four PCI Expansion; NBP 2U220: Two PCI, One PCIe x4 and One PCIe x16 Expansion

More Information

Specifications

Main Board	SHB Express: PEAK 872VL2; PICMG 1.3 Full-Size, Intel® Q45 Chipset, LGA775 Core™ 2 Quad, Core™ 2 Duo support Max.4GB DDR3 800/1066/1333 SDRAM, with VGA, Dual GbE LAN, PS2 outputSHB Express: PEAK 870VL2; PICMG 1.3 Full-Size, Intel® 945G Chipset, LGA775 Core™ 2 Duo support Max. 4GB DDR2 400 DIMM,with VGA, Dual GbE LAN, PS2 output
Backplane Option	NBP 2U220: 2 PCI slots (1 Full-sized add-on card support); 1 PCIe x4/1 PCIe x16 SlotsNBP 2U040: 4 PCI slots (3 Full-sized add-on card support)
Physical Construction	Form Factor: 2U 19" rackmount industrial computing chassisConstruction: Heavy-Duty Cold Rolled Electroplated SteelColor: BlackDimensions (W x H x D): 483mm x 88mm x 450mm (19" x 35" x 17.7")Mounting: 2 x Rack Mount EarCooling System: 3 x ball-bearing Chassis FAN (80mm x 80mm x 25mm); 1 x Active CPU Cooler (83mm x 89mm x 68mm)Weight: 16Kgs (GW)
Indicator	Front panel Indicator: 1 x HDD status LED; 1 x Power LED
I/O Interface	Front panel external I/O: 1 x power on-off switch; 1 x power reset switch; 2 x USB port; 1 x Keyboard Port
Storage Support	2 x 3.5" Drive Bay1 x 5.25" Drive Bay (Slim type)
Power Supply	Power type: ATX modeInput Voltage: 100-240 VACMax. Output Power: 400 WPower Supply Certifications: CE/FCC Class B/UL 60950/TUV EN60950
Environment	Operating temperature: 0°C to 40°C (32°F ~ 104°F)Operating Humidity: 10% ~ 90% (Non-condensing)Storage Temperature: -20°C ~ 60°C (-4°F ~ 140°F)Non-Operating Humidity: 10% ~ 95% @ 40 °C non-condensing
Certifications	CE approvalFCC Class A
