1 x 204-pin DDR3L SO-DIMM socket support 1867MHz up to 8GB. Default 4GB
Expansion
1 x mini-PCIe socket (USB)1 x mini-PCIe socket (PCIe + USB + mSATA)
Function
1 x u-blox NEO-M8N module (support GPS/Gloness/QZSS/Galileo/Beidou) or optional module with Dead ReckoningBuilt-in G-sensorBuilt-in TPM

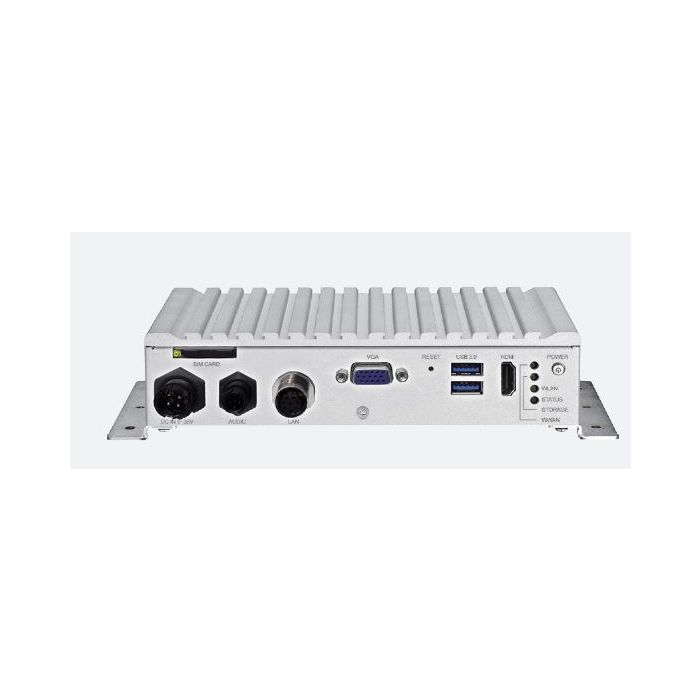

I/O Interface-Front
1 x power button4 x LED indicators for Status (programmable), Storage, WLAN and WWAN1 x system reset button2 x type A USB 3.0 compliant host, supporting system boot up1 x DB-15 VGA1 x HDMI1x external SIM card socket1 x circular connector for 9~36VDC input with ignition and 20W typical power consumption1 x circular connector for Audio-In and Audio-Out1 x M12 connector for 10/100/1000Mbps Ethernet
I/O Interface-Rear
1 x 12V/2A DC output, SMBus, power button1 x DB15 COM port for 4 x RS232 Tx/Rx and 2 x RS4851 x DB15 for multi port - 1 x CAN2.0 - 1 x RS232 Tx/Rx - 1 x odometer and direction for optional DR - 5 x programmable DIO Input voltage (internal type): 5VDC TTL (default) Input voltage (source type): 3~24VDC Digital output (sink type): 5VDC TTL (default), max current: 20mA Digital output (source type): 3~24VDC3 x Antenna hole for SMA-type antenna (WWAN/WLAN/GPS)
Expandable Storage
1 x 2.5” SSD SATA 3.01 x mSATA
Operating System
Windows 10Linux YOCTO(by request)
Power Management
Selectable boot-up & shut-down voltage for low power protectionHW design ready for 8-level delay time on/off at user's self configurationPower on/off ignition, software detectableSupport S3, S4 suspend mode
Dimensions
185mm (W) x 120mm (D) x 45mm (H) (7.3" x 4.7" x 1.8")1 kg (2.20 lbs)
