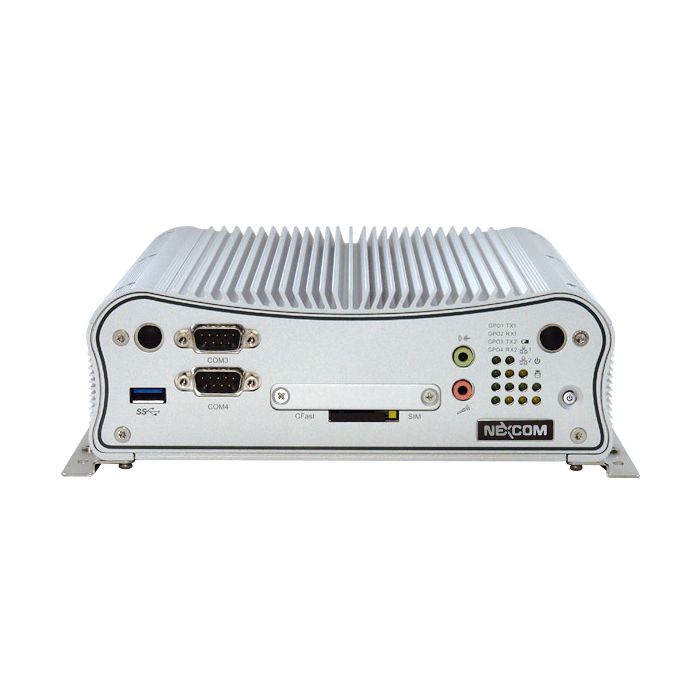

NISE-2400-J1900 Celeron J1900 Quad Core Fanless System

Be the first to review this product

A$0.00

In stock

SKU

NISE-2400-J1900

Intel® Celeron® Processor J1900 Quad Core or Atom™ Processor E3827 Dual Core Fanless System

Details

Intel® Celeron® Processor J1900 Quad Core or Atom™ Processor E3827 Dual Core Fanless System

· Onboard Intel® Celeron® Processor J1900 Quad Core, 2.0GHz

· Dual independent display from DVI-I and HDMI

· 2 x Intel® I210IT GbE LAN ports; support WoL, teaming and PXE

· 4 x USB 2.0 & 1 x USB 3.0

· 2 x RS232 & 2 x RS232/RS422/RS485 with auto flow control

· 2 x mini-PCIe socket for optional mSATA/Wi-Fi/4G LTE/3.5G/Fieldbus modules

· Support -5 to 55 degree Celus extended operating temperature

· Support 9-30V DC input

More Information

Brand

Nexcom

Specifications

CPU Support	Onboard Intel® Celeron® Processor J1900 Quad Core, 2.0GHzSupport Intel® Atom™ E3800 processor family from single core E3815, dual core E3825/E3826/E3827 and quad core E3845 with difference SKUs
Main Memory	2 x DDR3L SO-DIMM socket, support DDR3L 1066/1333 8GB RAM max., un-buffered and non-ECC
Display Option	Dual independent display - HDMI and DVI-I - HDMI and VGA (via DVI-I connector)
Front I/O Interface	ATX power on/off switch1 x Power status, 1 x HDD access, 1 x battery low, 4 x programming LEDs, 4 x Tx/Rx LEDs, 2 x LAN LEDs2 x DB9 RS232 for COM3 & COM41 x External CFast socket1 x SIM card holder1 x USB 3.0 (900mA per each)1 x Mic-in & 1 x Line-out2 x Antenna holes for optional Wi-Fi/3.5G antenna
I/O Interface - Rear	4 x USB 2.01 x DVI-I display output1 x HDMI display output1 x Remote power on/off switch2 x Intel® I210IT GbE LAN ports; support WoL, teaming and PXE2 x DB9 for COM1 & COM2, both support RS232/422/485 with auto flow control - Jumper-free setting on RS232/422/4851 x 3-pin DC input, support +9 to 30VDC input
I/O Interface - Internal	4 x GPI and 4 GPO (5V, TTL type)
Storage Device	1 x CFast card socket (SATA 2.0)1 x 2.5" HDD space (SATA 2.0)1 x mSATA from mini-PCIe socket if SATA HDD is not installed
Expansion Slot	2 x mini-PCIe socket for optional Wi-Fi/4G LTE/3.5G
Power Requirement	Power input: +9Vdc to +30Vdc1 x Optional 24V, 60W power adapter
Dimensions	191mm (W) x 200mm (D) x 60mm (H) without wall-mount bracket
Construction	Aluminum and metal chassis with fanless design
Environment	Operating temperature: Ambient with air flow: -5°C to 55°C (according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)Storage temperature: -30°C to 85°CRelative humidity: 10% to 95% (non-condensing)Shock protection: HDD: 20G, half sine, 11ms, IEC60068-2-27 CFast: 50G, half sine, 11ms, IEC60068-2-27Vibration protection w/ HDD condition: Random: 0.5Grms @ 5~500Hz, IEC60068-2-64 Sinusoidal: 0.5Grms @ 5~500Hz, IEC60068-2-6Vibration protection w/ CFast & SSD condition: Random: 2Grms @ 5~500Hz, IEC60068-2-64 Sinusoidal: 2Grms @ 5~500Hz, IEC60068-2-6
Certifications	CEFCC Class A
OS Support Lists	Windows 8, 32-bit/64-bitWindows Embedded Standard 8, 32-bt/64-bitWindows 7, 32-bit/64-bitWindows Embedded Standard 7, 32-bit/64-bitWindows 10 IoT Enterprise, 64-bitLinux Kernel version 3.8.0
