The NISE 109 is powered by the latest generation of Intel Celeron J6412 quad core or Atom x6211E dual core processors, delivers outstanding performance not only in computing but also in graphics, and it opens up a whole new world of possibilities for intelligent and industrial computing solutions. NISE 108 supports up to 16GB DDR4 memory and a variety of storage devices such as M.2 and SSD. The NISE 109 has a high level of integration with an optional mini-PCIe module and four COM ports, making it a truly intelligent system for a variety of applications including factory automation, network (with optional Wi-Fi and 4G/LTE modules), and communication (with optional GPIO, COM). For harsher environments, the NISE 109 has a temperature range of -20 to 70 degrees Celsius.
Key Features:
Onboard Intel Celeron processor J6412 2.0Ghz or Atom processor x6211E 1.3Ghz
Dual display port: 1 x HDMI & 1 x DP
2 x Intel I210-IT GbE LAN ports; support WoL, teaming, PXE and EtherCAT
3 x USB 3.0 & 3 x USB 2.0
2 x RS232 & 2 x RS232/422/485
Support 1 x 2.5” SSD & 1 x M.2 Key B storage
Support 9~30V DC input; support ATX power mode
Operation temperature - Intel® Celeron J6412: -5~55°C - Intel Atom x6211E: -20~70°C
1 x SO-DIMM DDR4 non-ECC up to 2666 MT/s, 16G max., support IBECC, non-ECC, and un-buffered memory
Display Option
1 x DP 1.41 x HDMI 1.4

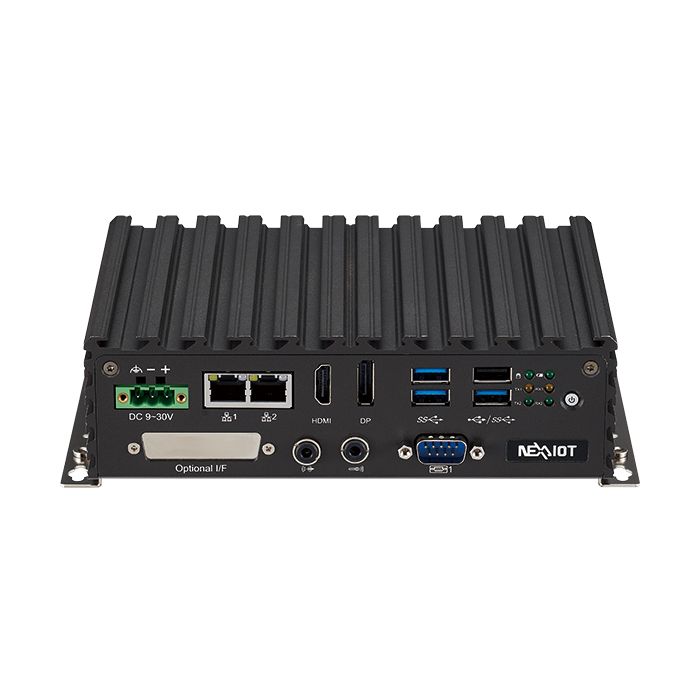

I/O Interface-Front
ATX power on/off switch
Status LEDs: storage, battery, and COM1/2 TX/RX.
3 x USB 3.0 (900mA per each)
1 x USB 2.0 (500mA per each)
2 x Intel® I210-IT GbE LAN ports; support WoL, Teaming and PXE
1 x DP
1x HDMI
1 x DB9 for COM3, it supports RS232/422/485 with auto flow control- Jumper-free setting on RS232/422/485 by BIOS
1 x Line-out and 1 x Mic-in
1 x Optional I/F window
3-pin DC input, support 9~30V DC
I/O interface - Rear
3 x DB9 for COM2, COM3 & COM4 - COM2: RS232/422/485 auto flow control - COM3 & COM4: RS2322 x USB 2.0 (500mA per each)1 x 2-pin remote power on/off switch2 x Antenna hole for optional Wi-Fi/4G/LTE antenna
Storage Device
1 x M.2 (SATA/PCIe x 1, 2242, Key B & B+M)1 x 2.5“ SATAIII SSD
Expansion Slot
1 x mini-PCIe socket for optional Wi-Fi/3.5G/4G/LTE module (for 3.5G/4G/LTE function, support SIM card holder onboard)
Power Requirements
Power input: +9 to 30V DC1x Optional 24V, 60W power adapter
Support OS
Windows 10 64-bit Linux Kernal
Dimensions
185mm (W) x 131mm (D) x 54mm (H) without wall-mount bracket
Construction
Aluminium and metal chassis with fanless design
Environment
Operating temperature (according to IEC60068-2-1, IEC60068-2-2,IEC60068-2-14) - NISE 109-E01 ambient with airflow: -20°C to 70°C - NISE 109-E02 ambient with air flow: -5°C to 55°CStorage temperature: -20°C to 80°CRelative humidity: 10% to 90% (non-condensing)Shock protection - HDD: 20G, half sine, 11ms, IEC60068-2-27 - M.2: 50G, half sine, 11ms, IEC60068-2-27Vibration protection with SSD & M.2 condition - Random: 2Grms @ 5~500 Hz, IEC60068-2-64 - Sinusoidal: 2Grms @ 5~500 Hz, IEC60068-2-6
Certifications
CE approval - EN61000-6-2 - EN61000-6-4FCC Class A
OS Support
Linux Kernel version 4.1
Windows 10 IoT Enterprise, 64-bit
