2 x 260-pin SO-DIMM sockets, supports DDR4 2133/2400 MHz non- ECC, un-buffered memory up to 32G (single socket max. 16GB)

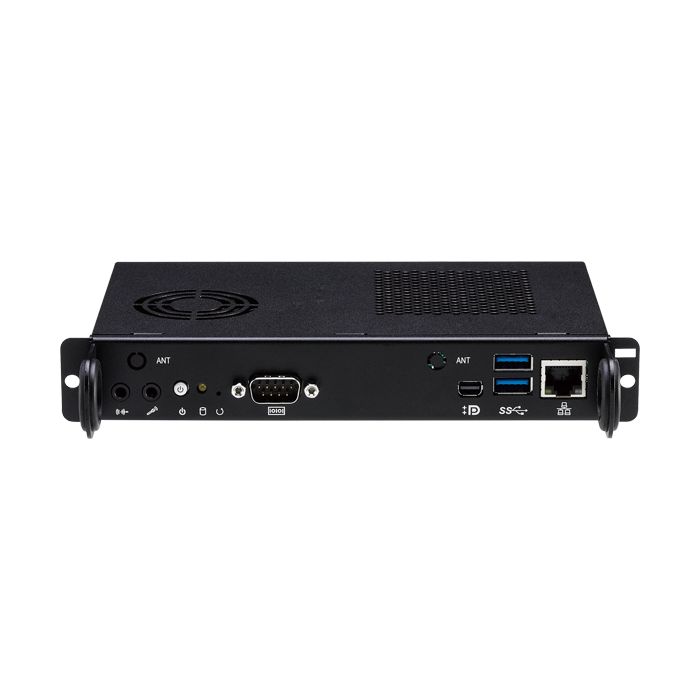

I/O Interface-Front
1 x Power button with LED 1 x Reset button 1 x RJ45 with LEDs for Gigabit LAN 1 x Mini DP connector for DisplayPort++ 2 x USB 3.0 1 x Storage active LED 2 x Antenna hole 1 x Mic-in phone jack 1 x Line-out phone jack 1 x DB9 for RS232 (COM3)
I/O Interface-Rear (TX25)
1 x TMDS (HDMI 2.0) 1 x USB 3.0 2 x USB 2.0 1 x UART (3.3V TTL) (COM2) 1 x Audio out L/R DC input +12V~+19V Control signals (PWR_STATUS, PS_ON#, PB_DET, CEC, SYS_FAN)
I/O Interface-Rear (FX18)
1 x GPIO signal 2 x I2C signal LAN managements signals 1 x DP1.2 signal PCIe x4 signal
Storage Device
1 x M.2 2242, SATA signal
Expansion
1 x M.2 2230 for optional Wi-Fi module
Dimensions
200mm (W) x 119mm (D) x 30mm (H) (7.8\" x 4.7\" x 1.1\")
Power Power Supply
DC power input +12V~+19V
Environment
Operating temperature: ambient with air flow from 0°C to 45°C Storage temperature: -20°C to 80°C Humidity: 95% (non-condensing)
