2 x 204-pin SO-DIMM socket, supports DDR3L 1600MHz non-ECC, Un-buffered memory up to 16GB

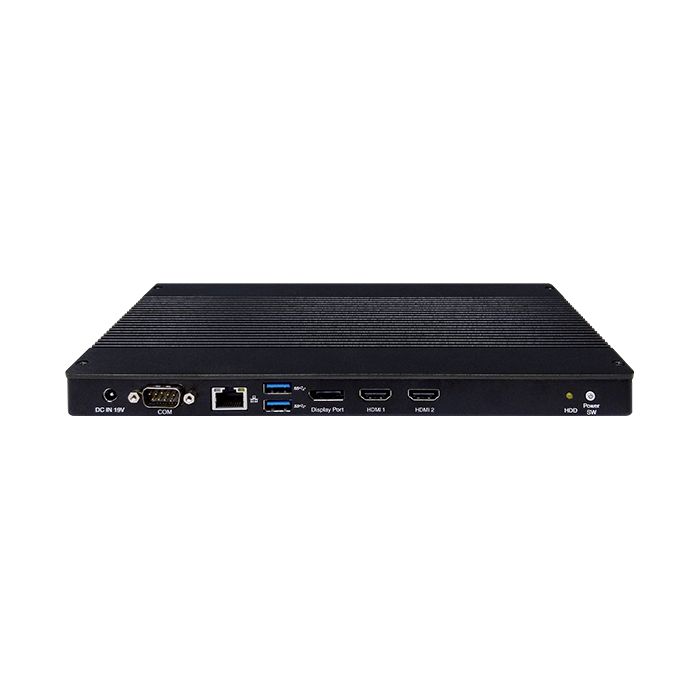

I/O Interface-Front
1 x 19V DC in1 x DB9 for RS-2321 x RJ45 with LEDs 10/100/1000Mbps Ethernet2 x USB3.01 x Display Port2 x HDMI Port1 x HDD LED1 x Power Switch1 x Audio-out1 x MIC-in
I/O Interface-Rear
2 x Antenna Hole for Wi-Fi or TV Tuner3 x USB3.0
Storage
1 x SATA 2.5”
Expansion
1 x mini-PCIe slot (full size)1 x NGFF (M.2) 2230 for optional WLAN1 x SIM Slot
Power Supply
1 x external 65W AC/DC power adapterInput: 100VAC to 240VACOutput: DC+19VDC
Environment
Operating temperature: -10°C to 60°C (SSD) ; 0°C to 40°C (HDD)Storage temperature: -25°C to 80°CHumidity: 10 to 90% (non-condensing)
Certification
CE approvalFCC Class A
Dimensions
259mm (W) x 147mm (D) x 21mm (H)
Operating System
Win10/ Linux
Description
Fanless Embedded Computer Powered by Quad Core Intel® Atom x7-E3950 Processor, 2.0GHz
·6th generation Intel® Atom x7-E3950 processor
·Tripe video output (HDMI/DP support 4K2K resolution)
